UHF Mount Instructions - UMFR

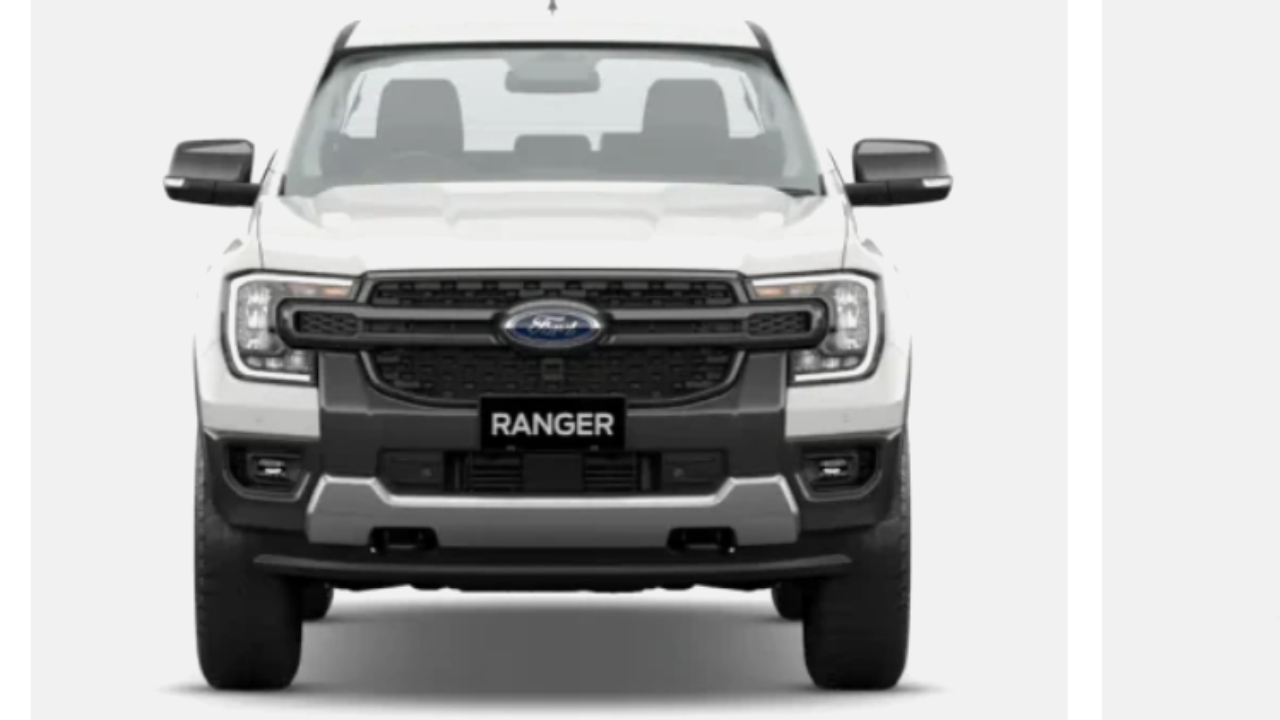

Ranger 2022+ / VW Amarok 2023+ Tools needed: 10mm spanner or socket.
Ranger 2022+ / VW Amarok 2023+ Tools needed: 10mm spanner or socket.
1
Step 1 of 4

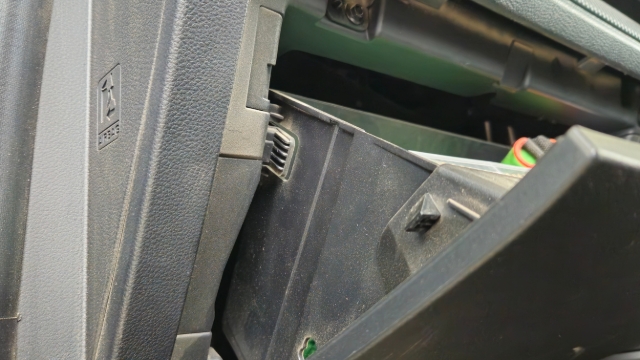

<p><strong>Step 1:</strong> Remove glove box by squeezing in the tabs on each side and pulling forwards.</p>

Step 1: Remove glove box by squeezing in the tabs on each side and pulling forwards.

2
Step 2 of 4

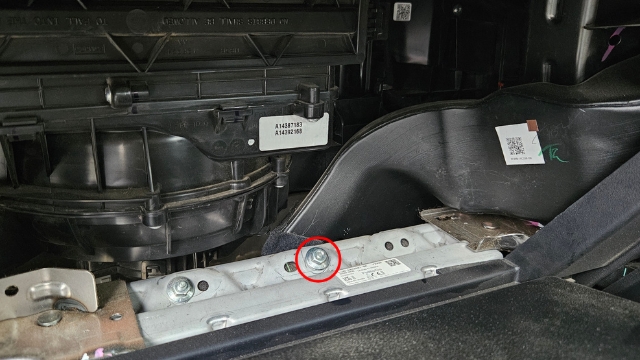

<p><strong>Step 2:</strong> Remove the nut indicated</p>

Step 2: Remove the nut indicated

3
Step 3 of 4

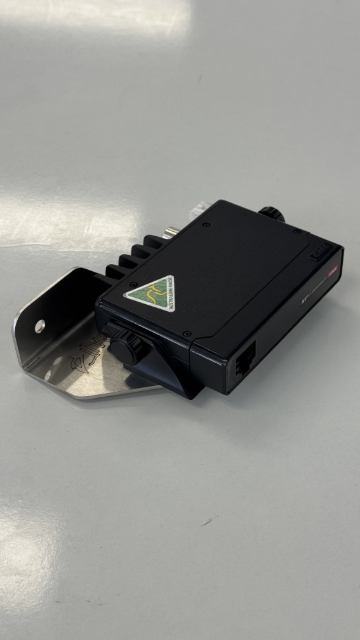

<p><strong>Step 3:</strong> Attach UHF to the mount as pictured.</p>

Step 3: Attach UHF to the mount as pictured.

4
Step 4 of 4

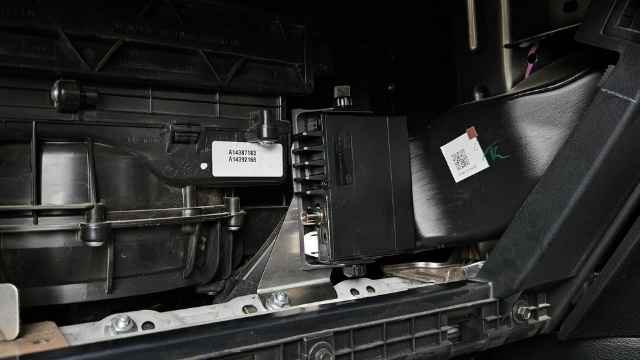

<p><strong>Step 4:</strong> Attach the assembly to the mounting point as pictured. Reinstall glovebox after wiring is complete.</p>

Step 4: Attach the assembly to the mounting point as pictured. Reinstall glovebox after wiring is complete.
