Fit Stainless Capping
1
Step 1 of 11
<p>Adding Stainless Capping protects the top of your Sideboards + Tailgate.</p> <p>Time Required: 10-15 mins (Easy!)</p> <p>Tools Required: • 5mm Drill Bit • Drill • Rivet Tool</p>

Adding Stainless Capping protects the top of your Sideboards + Tailgate.

Time Required: 10-15 mins (Easy!)

Tools Required: • 5mm Drill Bit • Drill • Rivet Tool

2
Step 2 of 11

Will look like this when done

3
Step 3 of 11

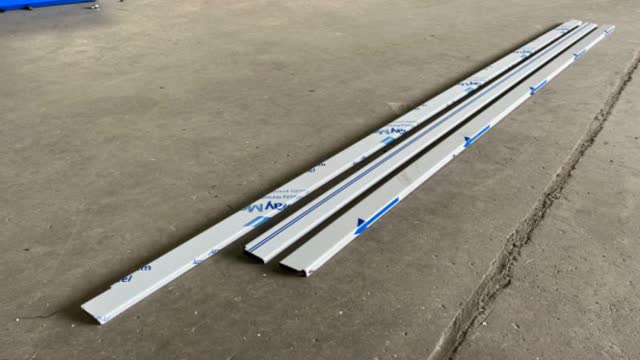

<p>The supplied kit will have: • 1 x Tailgate Piece • 2 x Sideboard Pieces • Stainless Steel Rivets</p>

The supplied kit will have: • 1 x Tailgate Piece • 2 x Sideboard Pieces • Stainless Steel Rivets

4
Step 4 of 11

Fit Capping to the Top of Sideboards + Tailgate (Sometimes you need to tap it on...)

5
Step 5 of 11

Peel off the protective plastic

6
Step 6 of 11

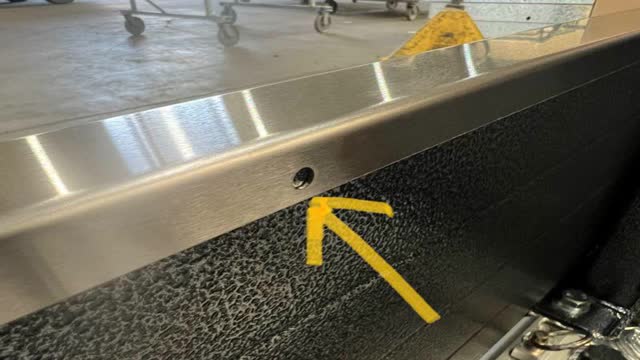

<p>There will be holes pre-cut in the stainless.</p> <p>IMPORTANT: The holes go to the INSIDE, not the outside of the Tray.</p> <p>From the outside, they will NOT be visible. We want a clean uncluttered look 😎</p>

There will be holes pre-cut in the stainless.

IMPORTANT: The holes go to the INSIDE, not the outside of the Tray.

From the outside, they will NOT be visible. We want a clean uncluttered look 😎

7
Step 7 of 11

Drill 5.0mm

8
Step 8 of 11

Install supplied Stainless rivets

9
Step 9 of 11

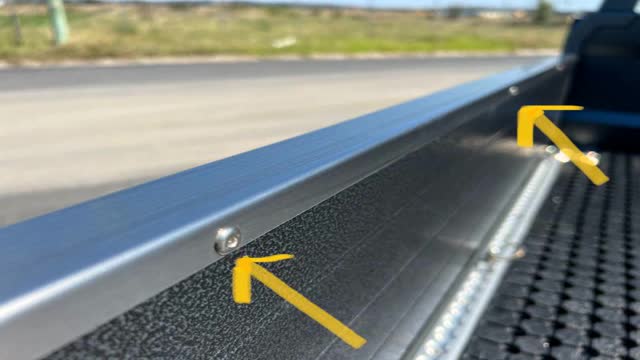

<p>Repeat for all other mounting holes</p>

Repeat for all other mounting holes

10
Step 10 of 11

IMPORTANT

Blow off any drill shavings!

11
Step 11 of 11

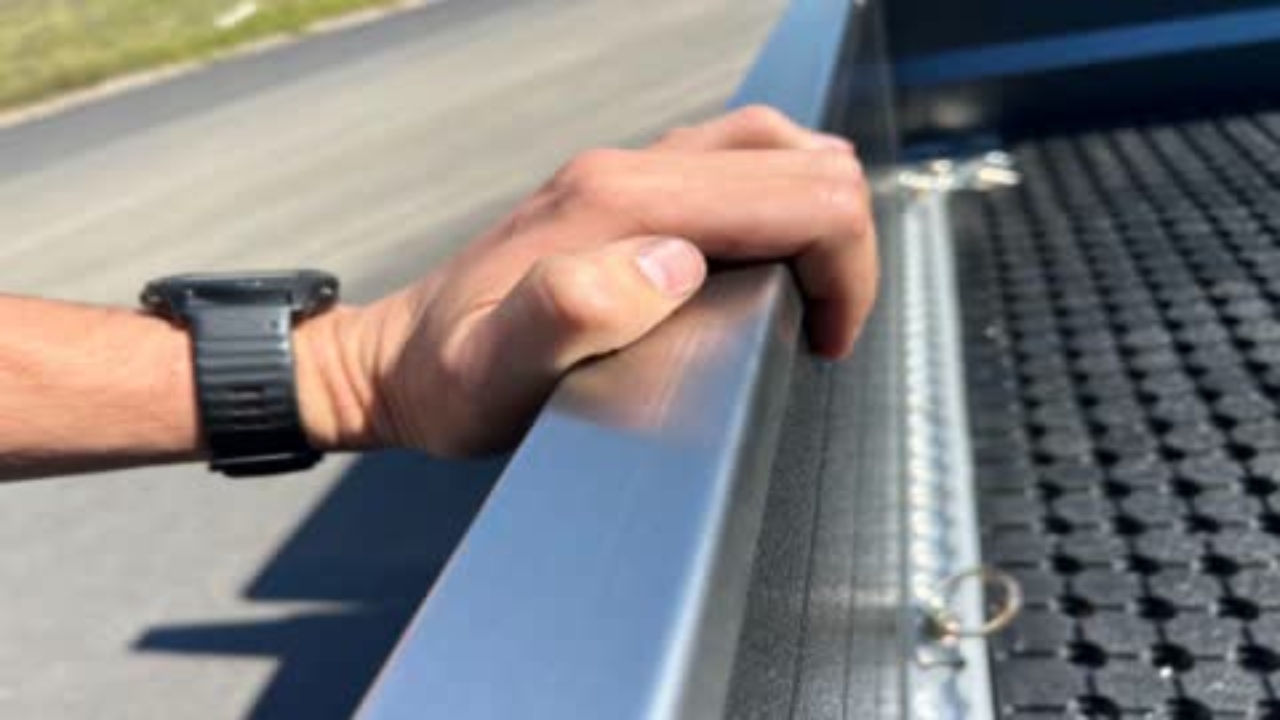

Will look like this when done Done ✅
