CANOPY, TOYOTA HILUX A-DECK

1

Step 1 of 33

2

Step 2 of 33

Contents (Click to view)

STEP 3: Components List

STEP 8: Tools List

STEP 9: Torque Values

STEP 10: Battery

STEP 11: Fitting Kit Installation

STEP 26: Canopy Installation

STEP 31: Links to next Instructions

STEP 33: QA Sheet

3

Step 3 of 33

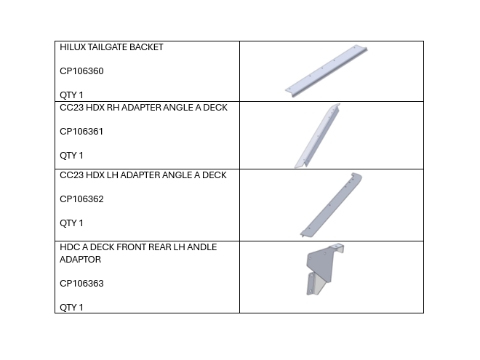

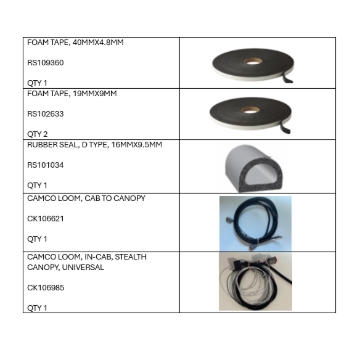

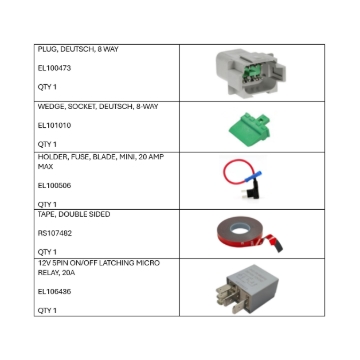

Components List

4

Step 4 of 33

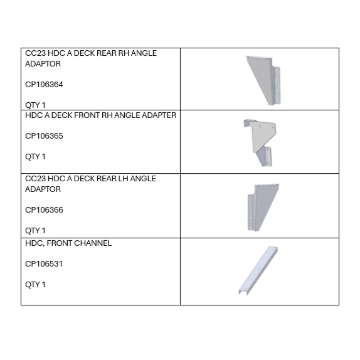

Components List

5

Step 5 of 33

Components List

6

Step 6 of 33

Components List

7

Step 7 of 33

Components List

8

Step 8 of 33

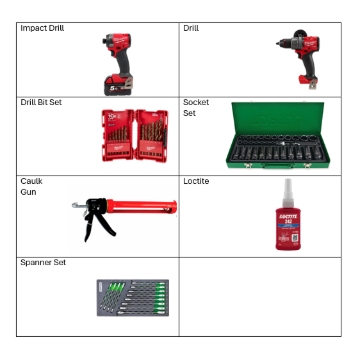

Tool List

9

Step 9 of 33

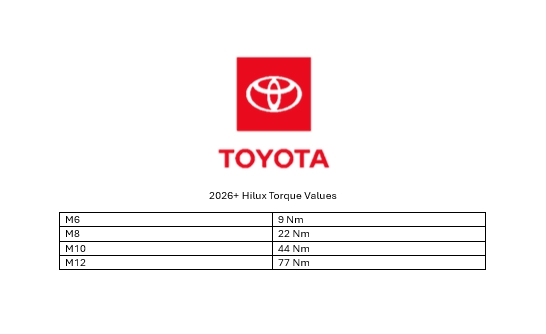

Torque Values

10

Step 10 of 33

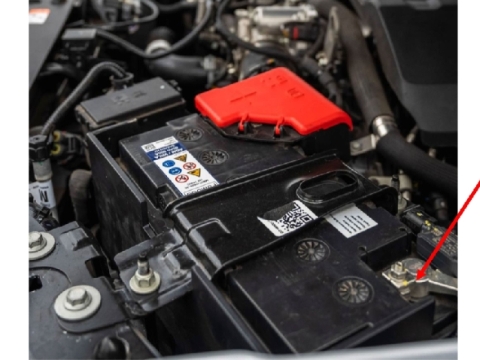

Disconnect the negative battery terminal before starting any work.

11

Step 11 of 33

Remove tie-down points.

12

Step 12 of 33

Fit the two front brackets (CP106363/65) to the wellside using M8 hex head bolts with M8 washers and loosely tighten the bolts, then mark the liner capping where it needs to be cut so it fits between the brackets.

13

Step 13 of 33

Remove the liner capping and cut it at the previously marked locations so it fits neatly between the brackets.

14

Step 14 of 33

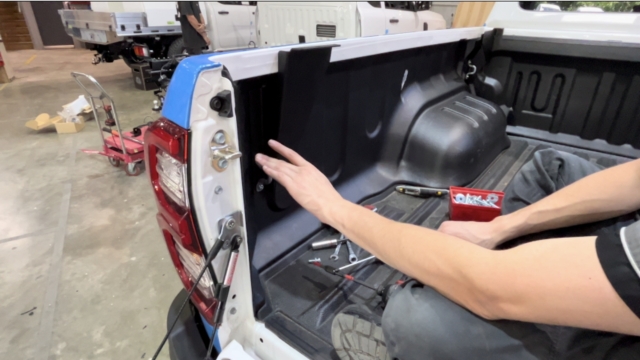

<p>Fit the two rear brackets (CP106364/66) to the wellside using M8 × 25 hex head bolts with M8 washers, loosely tighten the bolts, and refit the original tie-down point if required.</p>

Fit the two rear brackets (CP106364/66) to the wellside using M8 × 25 hex head bolts with M8 washers, loosely tighten the bolts, and refit the original tie-down point if required.

15

Step 15 of 33

Refit the liner capping so it sits back in position between the front brackets.

16

Step 16 of 33

Apply foam tape (RS102633) to the front of the wellside.

17

Step 17 of 33

Fit the front (CP106531), left and right rails (CP106361/62) onto the wellside.

18

Step 18 of 33

Install six M8 × 20 bolts with M8 nyloc nuts in all countersunk holes.

19

Step 19 of 33

Apply black touch-up paint to the M8 countersunk bolt.

20

Step 20 of 33

Undo the screws securing the tailgate liner and remove the liner.

21

Step 21 of 33

Cut off the top flange of the tailgate liner.

22

Step 22 of 33

The tailgate liner will now sit flush in position.

23

Step 23 of 33

Remove the screws from the tailgate, install the tailgate bracket (CP106360), and secure it using the original screws.

24

Step 24 of 33

Refit the tailgate liner on top of the tailgate bracket using the original fasteners.

25

Step 25 of 33

Apply urethane to all gaps between the fitting kit brackets, filling them completely. Wipe away any excess for a clean finish

26

Step 26 of 33

When placing the canopy onto the wellside, make sure all canopy holes align with the slots on the fitting kit brackets.

27

Step 27 of 33

Insert M8x25 hex bolts with M8 washers through the aligned holes on the canopy sides. Secure them to the fitting kit using M8 Nyloc nuts and M8 washers.

28

Step 28 of 33
