CHASSIS MOUNTS, RANGER EC
1
Step 1 of 14
2
Step 2 of 14

Contents (Click to view)

​STEP 3: Components List​

​STEP 8: Tools List​

​STEP 9: Torque Values​

​STEP 10: Hole Diagram​

​STEP 11: Chassis Mounts​

​STEP 14: QA Sheet​

3
Step 3 of 14

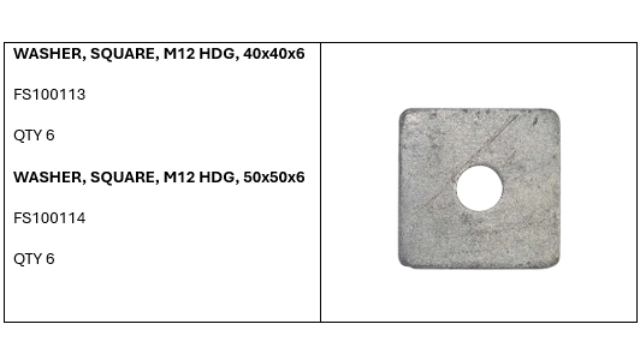

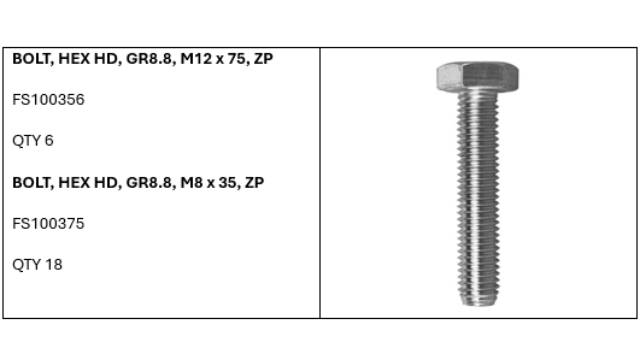

<p>Components List</p>

Components List

4
Step 4 of 14

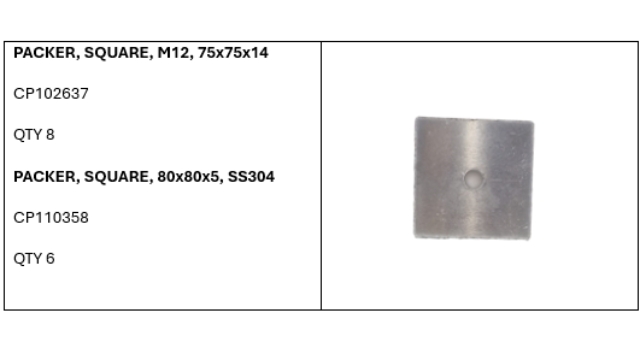

<p>Components List</p>

Components List

5
Step 5 of 14

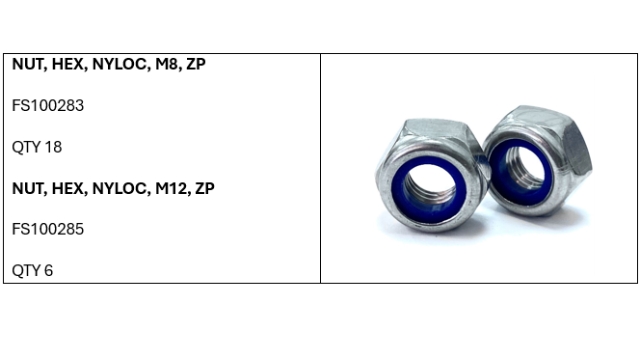

<p>Components List</p>

Components List

6
Step 6 of 14

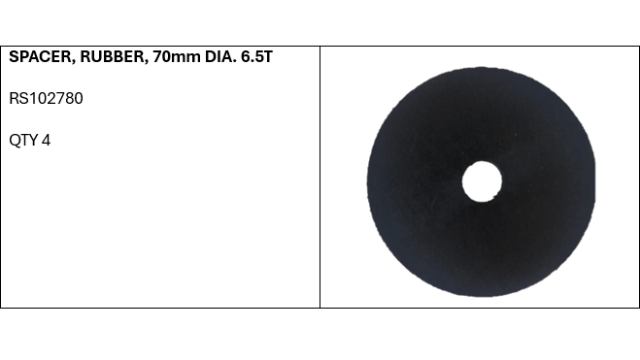

<p>Components List</p>

Components List

7
Step 7 of 14
<p>Components List</p>

Components List

8
Step 8 of 14

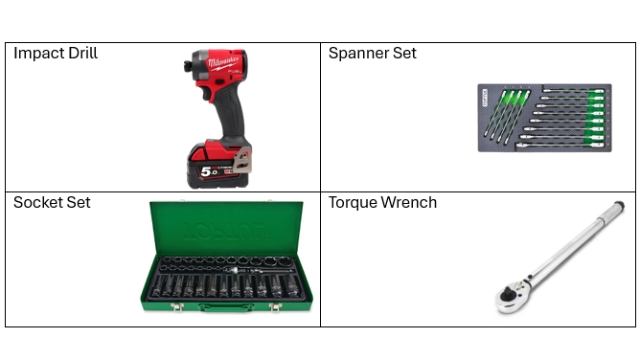

<p>Tools List</p>

Tools List

9
Step 9 of 14

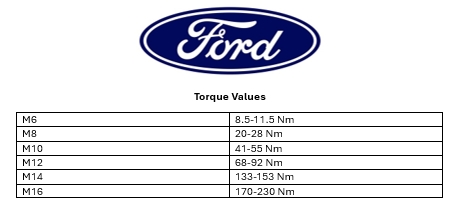

<p>Torque Values</p>

Torque Values

10
Step 10 of 14

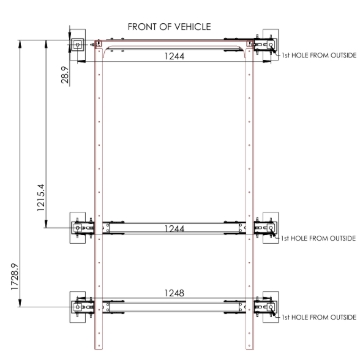

<p>Use this diagram for the distances and hole locations.</p>

Use this diagram for the distances and hole locations.

11
Step 11 of 14

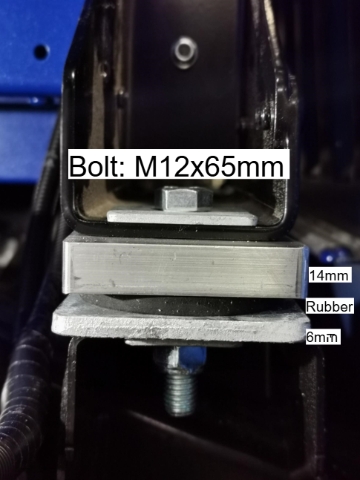

<p>Ranger EC Front</p><p>Distance from the front of the chassis: 28.2mm</p><p>Hole's position on the crossmember: Most outside hole</p>

Ranger EC Front

Distance from the front of the chassis: 28.2mm

Hole's position on the crossmember: Most outside hole

12
Step 12 of 14

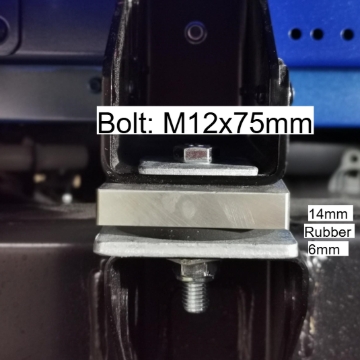

<p>Ranger EC Middle</p><p>Distance from the front of the chassis: 1214.7mm</p><p>Hole's position on the crossmember: Most outside hole</p>

Ranger EC Middle

Distance from the front of the chassis: 1214.7mm

Hole's position on the crossmember: Most outside hole

13
Step 13 of 14

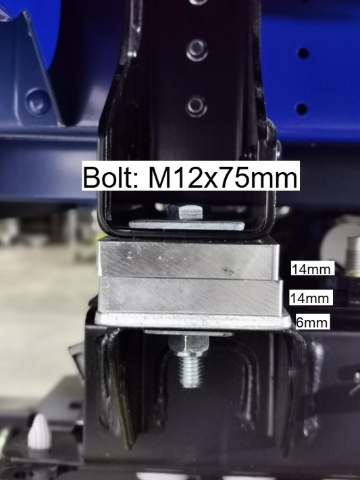

<p>Ranger EC Back</p><p>Distance from the front of the chassis: 1728.2mm</p><p>Hole's position on the crossmember: Most outside hole.</p>

Ranger EC Back

Distance from the front of the chassis: 1728.2mm

Hole's position on the crossmember: Most outside hole.

14
Step 14 of 14
<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz



If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
