xMounts Layout: RAM 1500 "DS" 6-4 Tub
1
Step 1 of 3
<p>&quot;R3&quot;</p> <p>Front Mount, both sides</p> <p>Standard Front holes on chassis rail</p>

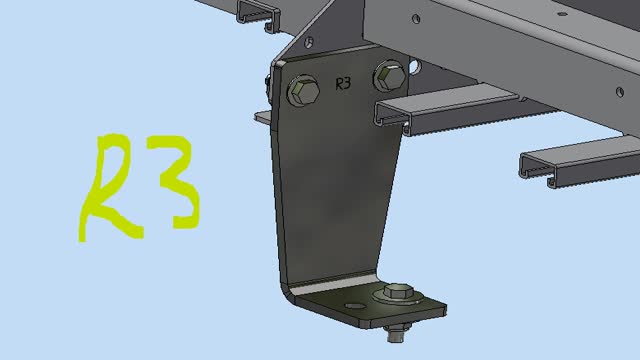

"R3"

Front Mount, both sides

Standard Front holes on chassis rail

2
Step 2 of 3
<p>&quot;W3&quot;</p> <p>Rear Mount, Both sides</p> <p>Or &quot;W&quot; and also supply 16mm Packers</p> <p>On older chassis rails, you may need to drill the hole shown with Blue arrow - it has been added to future Chassis Rails</p> <p>(1767mm from front of 1st mount to front of this mount)</p>

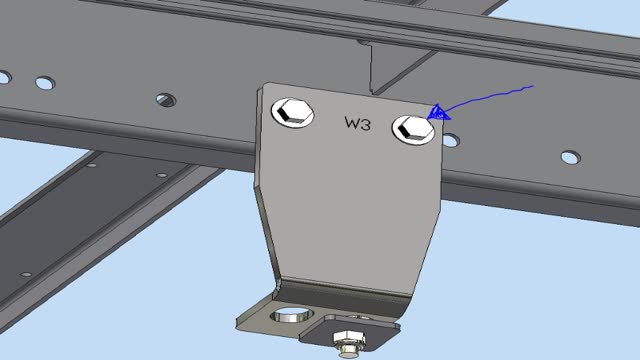

"W3"

Rear Mount, Both sides

Or "W" and also supply 16mm Packers

On older chassis rails, you may need to drill the hole shown with Blue arrow - it has been added to future Chassis Rails

(1767mm from front of 1st mount to front of this mount)

3
Step 3 of 3

Supply 2 x 5mm packers - will be used on back mounts. (on the inside of the vehicle chassis rails)
