CANOPY, MITSIBISHI TRITON

1

Step 1 of 54

2

Step 2 of 54

Contents (Click to view)

STEP 4: Components List

STEP 11: Tools List

STEP 13: Torque Values

STEP 14: Battery

STEP 15: Fitting Kit Installation

STEP 31: Canopy Fitting

3

Step 3 of 54

(Click to view)

STEP 36: Cab to Canopy Loom

STEP 45: Relay

STEP 46: Central Locking/Door Ajar Alarm

STEP 50: Checkover

STEP 53: Checkover

STEP 54: QA Sheet

4

Step 4 of 54

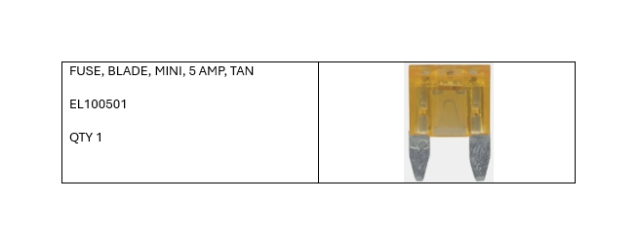

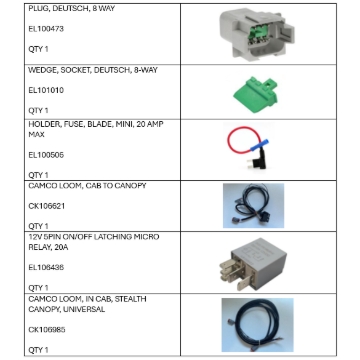

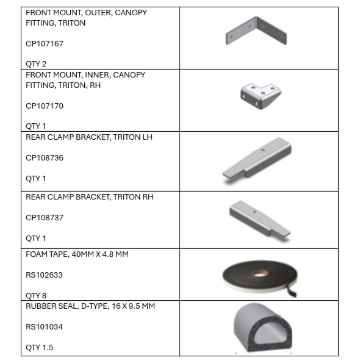

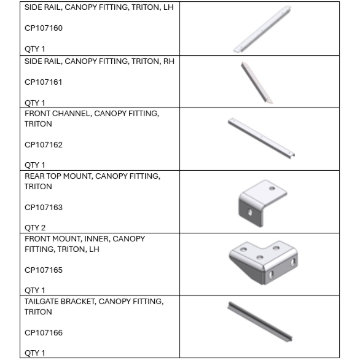

Components List

5

Step 5 of 54

Components List

6

Step 6 of 54

Components List

7

Step 7 of 54

Components List

8

Step 8 of 54

Components List

9

Step 9 of 54

Components List

10

Step 10 of 54

Components List

11

Step 11 of 54

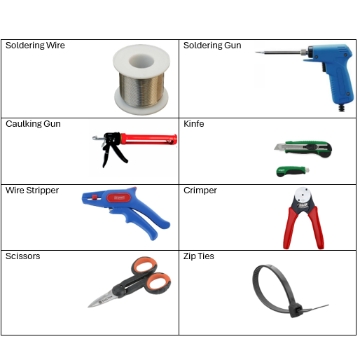

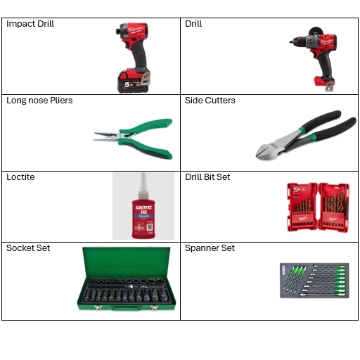

Tool List

12

Step 12 of 54

Tools List

13

Step 13 of 54

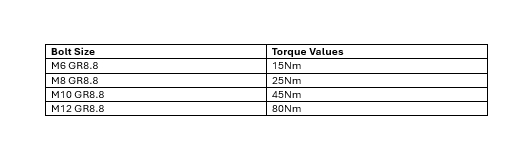

Torque Values

14

Step 14 of 54

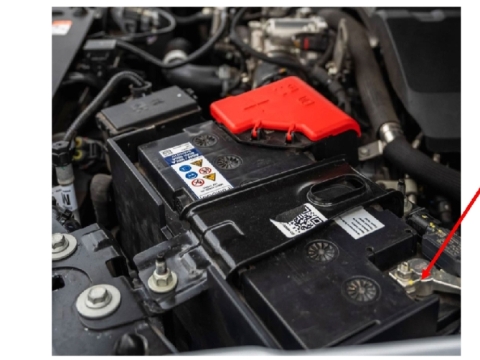

Ensure to disconnect the negative terminal from the battery before starting.

15

Step 15 of 54

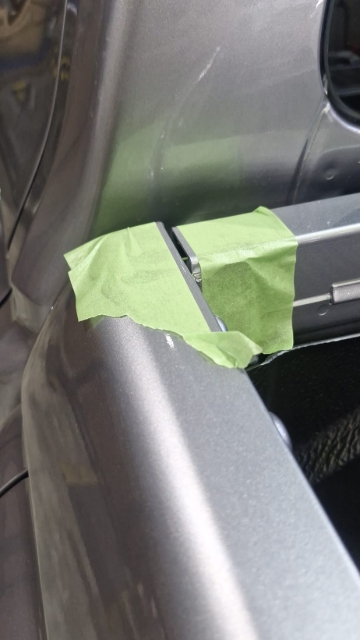

In the front corners of the wellside, place tape on either side as shown.

16

Step 16 of 54

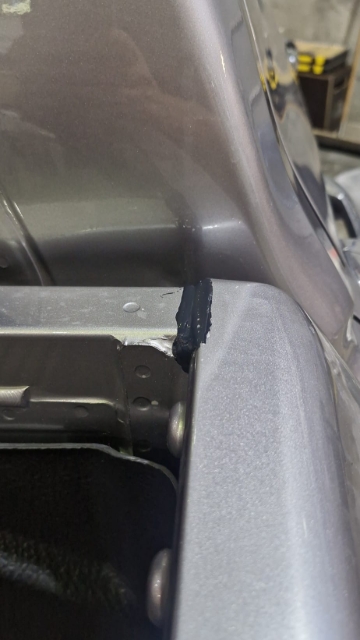

Urethane the Corners ensure to make it is tidy as shown.

17

Step 17 of 54

Run a single strip of 16x9mm foam tape across the front wellside

18

Step 18 of 54

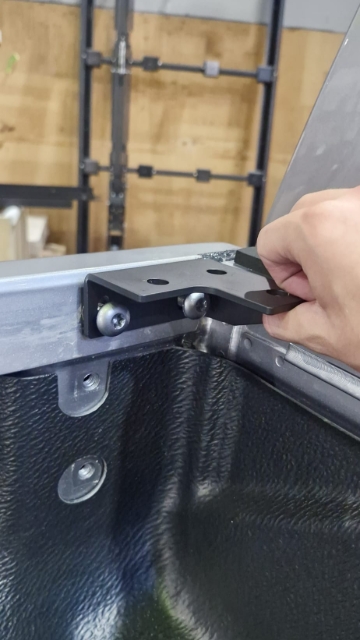

Position the brackets at the cab-end corners and secure them using the original factory screws removed from the wellside.

19

Step 19 of 54

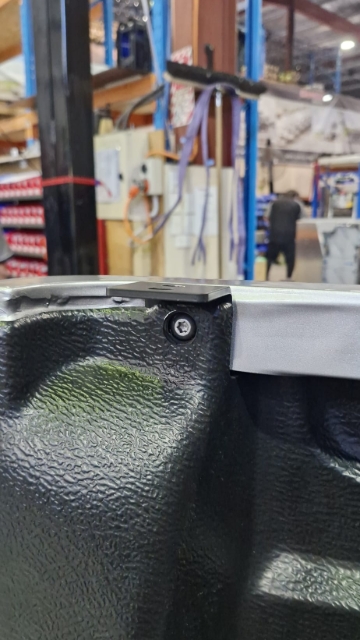

Use the original factory hardware to fit the rear brackets. Ensure these are tightened to hand-tight before final alignment.

20

Step 20 of 54

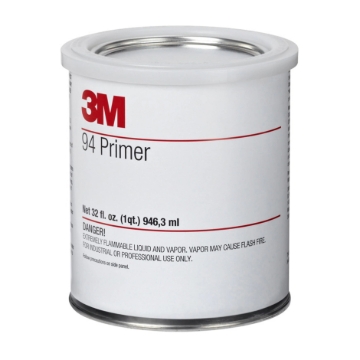

Tape Prep for foam tape/D-seal.

21

Step 21 of 54

Apply D-seal rubber to the side rails. Ensure to use tape prep.

22

Step 22 of 54

Fit the side rails and the front rail onto the wellside.

23

Step 23 of 54

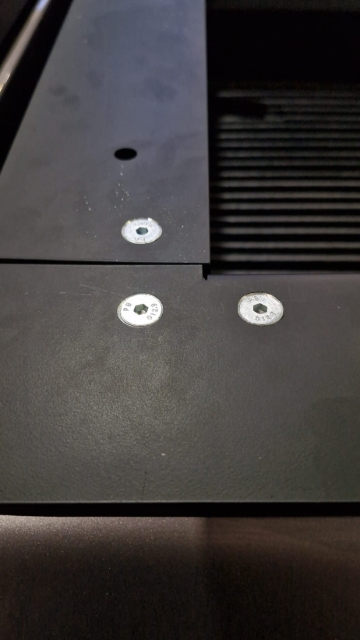

Insert the M8 x 25mm CSK (Countersunk) screws into the corresponding countersunk holes on the fitting kit.

24

Step 24 of 54

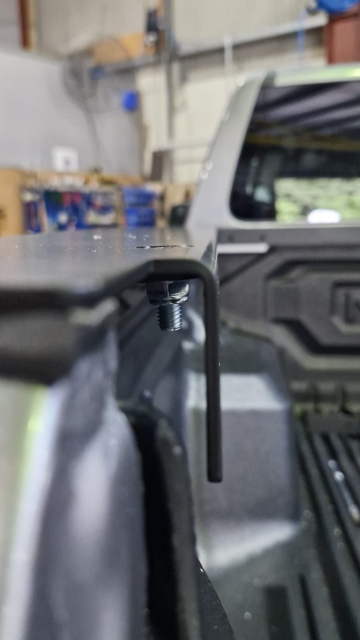

Fit M8 nyloc nut to the CSK screw.

25

Step 25 of 54

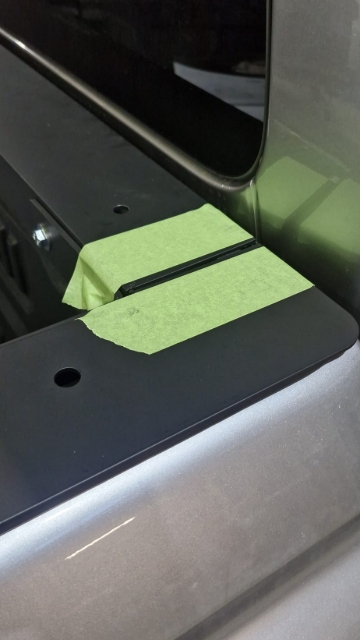

Seal all corners of the fitting kit with urethane, ensuring it is neat and tidy.

26

Step 26 of 54

Use the corner bracket to join the side and front rails. Check that the corner is square before fastening.

27

Step 27 of 54

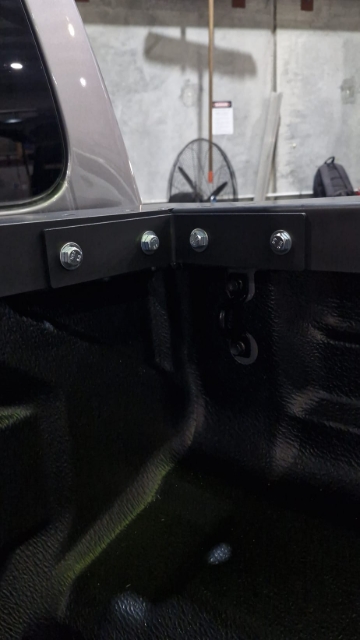

Fasten the brackets using M8 hex head bolts and M8 Nyloc/flat washers.

28

Step 28 of 54

Fit the double-sided foam tape to the underside of the tailgate bracket before installation.

29

Step 29 of 54

Slide the tailgate fitting kit underneath the plastic liner. Secure to the tailgate using 2 Tec screws on either side and 1 in the centre, if there is no tailgate liner.

Touch up with black paint.

30

Step 30 of 54

Apply the rubber seal to the outer edge of the fitting kit where it meets the canopy door.

31

Step 31 of 54

Apply foam tape to the bottom of the canopy, 40 x 4.8mm.

32

Step 32 of 54

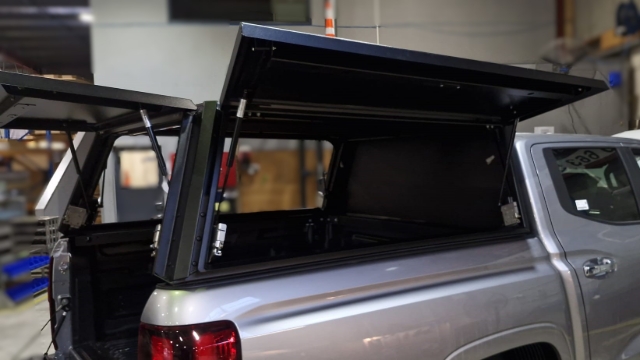

Lift the canopy onto the ute's wellside with at least 4 people.

33

Step 33 of 54

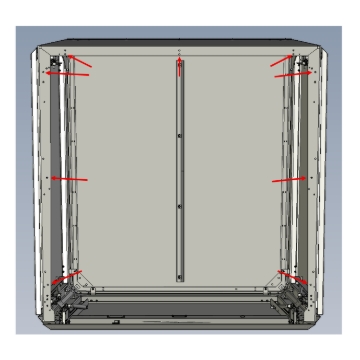

Bolt Location for mounting the canopy to the fitting kit.

34

Step 34 of 54

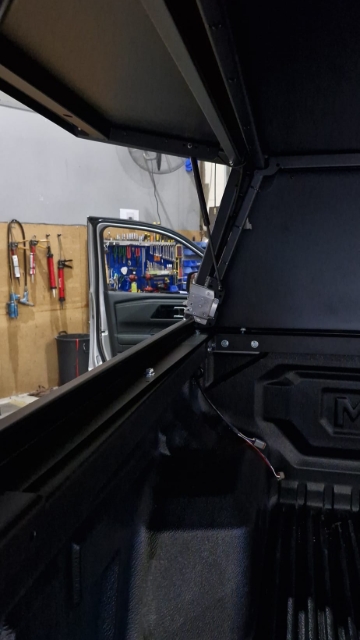

Place the bolts into the correct location as shown above.

35

Step 35 of 54

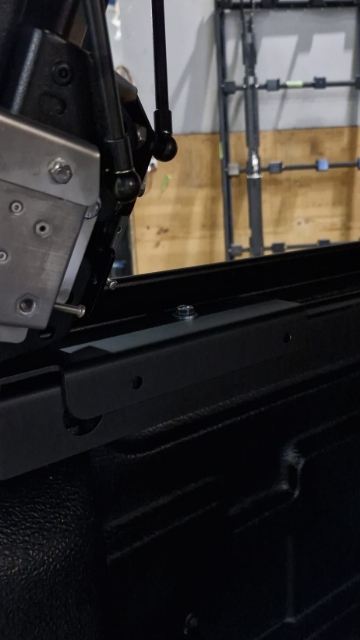

Use the Rear Clamp Brackets (CP108736/37) to hold the rear of the canopy down.

36

Step 36 of 54

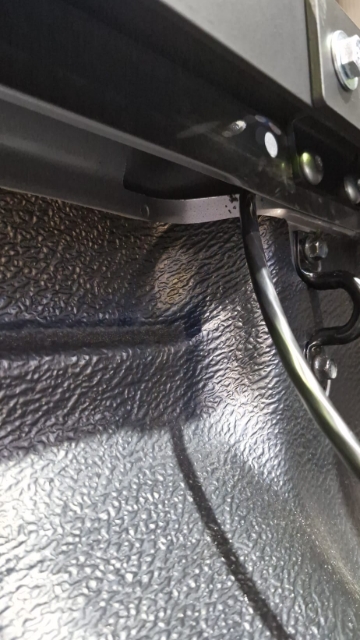

Thread the Camco loom through the access point [refer to image] and pull it down the wellside to the chassis level.

37

Step 37 of 54

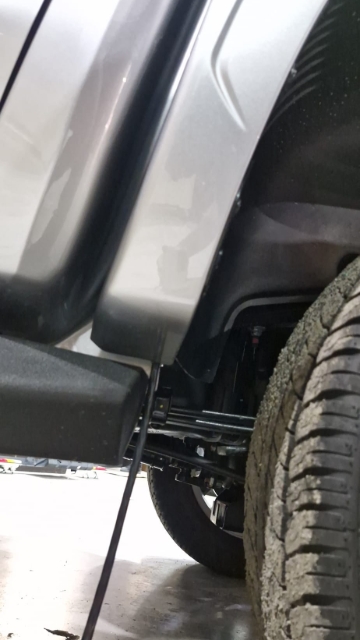

Run the wire along the chassis ensure it sits along the top so it can't drag on the ground.

38

Step 38 of 54

Pass the loom through the factory grommet located underneath the cab floor.

39

Step 39 of 54

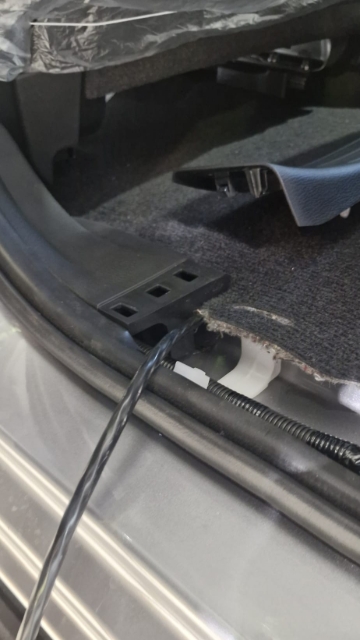

Pull the loom up through the passenger side in the rear of the cab.

40

Step 40 of 54

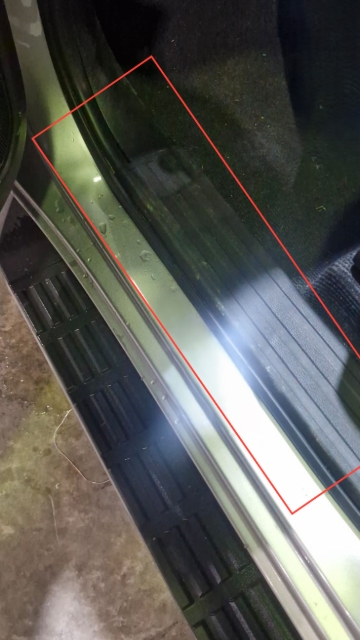

Unclip the passenger side door sill and kick panel trims to allow for loom routing.

41

Step 41 of 54

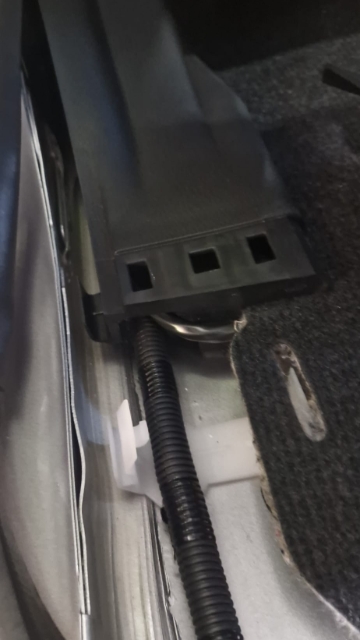

Route the loom to the middle pillar through to the front of the cab.

42

Step 42 of 54

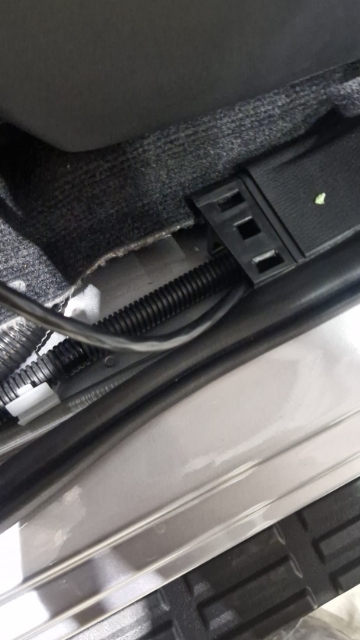

Pull the loom all the way through to the front.

43

Step 43 of 54

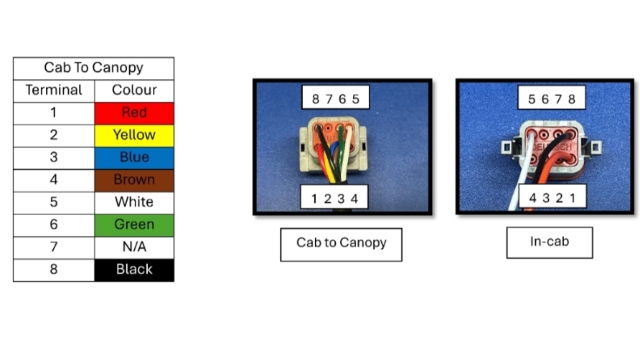

Connect the loom to the Deutsch plug and connect the corresponding colours to the right number.

44

Step 44 of 54

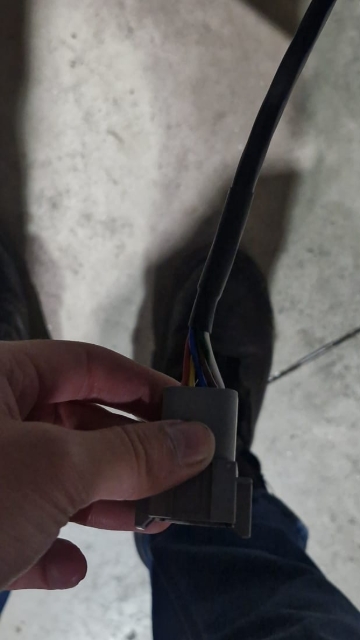

Loom connected to the deutch plug.

45

Step 45 of 54

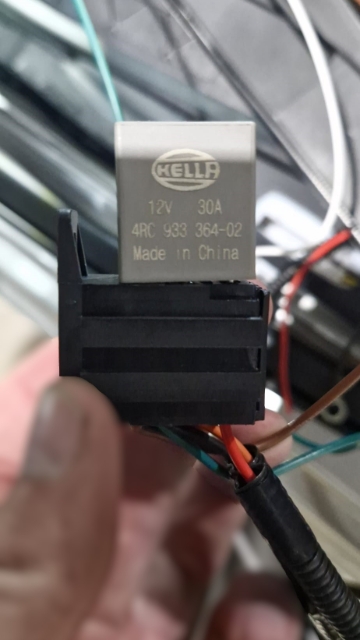

Connect the relay (EL106438) to the relay box as shown.

46

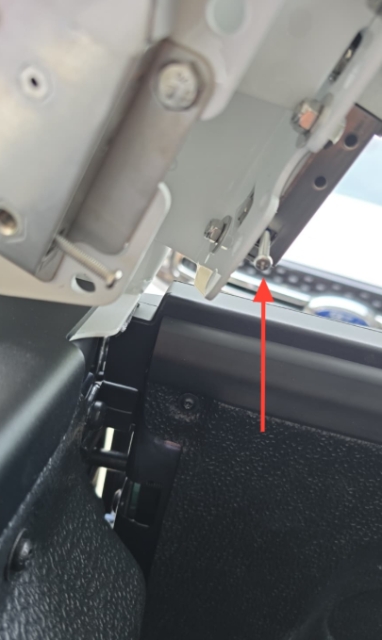

Step 46 of 54

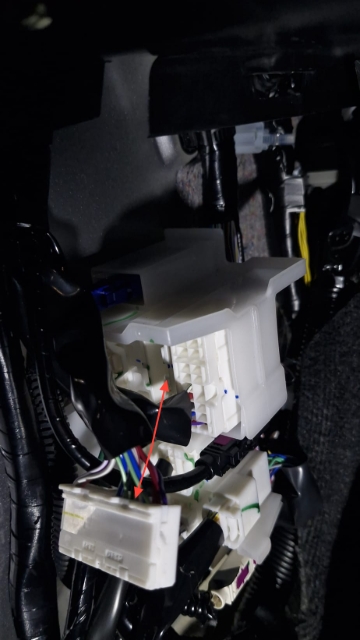

After opening up the trim, locate this junction of wiring and unclip the plug shown.

47

Step 47 of 54

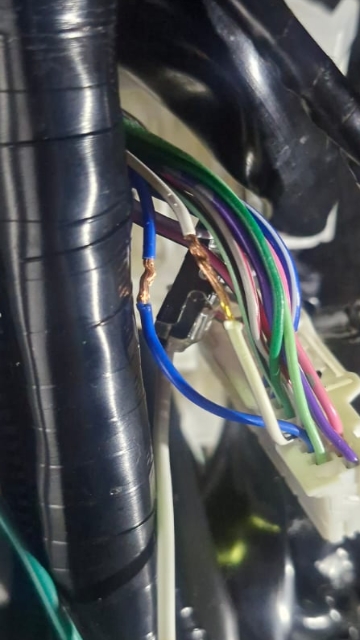

<p>Using a pair of wire strippers, strip back approximately 10mm of insulation from both the Blue wire and the White/Black (White with Black stripe) wire.</p>

Using a pair of wire strippers, strip back approximately 10mm of insulation from both the Blue wire and the White/Black (White with Black stripe) wire.

48

Step 48 of 54

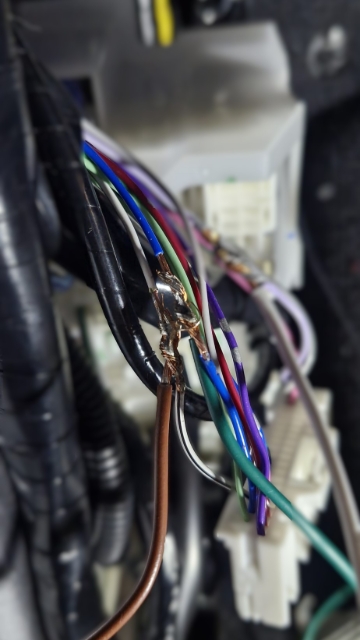

<ul><li><p>Connect & Solder: Brown → White/Black | Green → Blue. (Ensure 100% solder coverage).</p></li><li><p>T-Joint: Cut/strip the solid White wire and place it into the T-Joint.</p></li></ul><p></p>

Connect & Solder: Brown → White/Black | Green → Blue. (Ensure 100% solder coverage).
T-Joint: Cut/strip the solid White wire and place it into the T-Joint.

49

Step 49 of 54

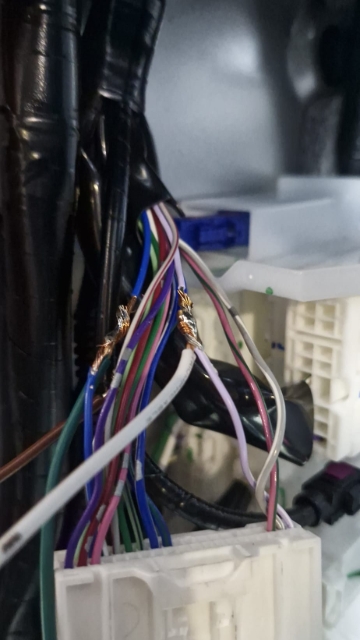

Find the light purple wire and connect the white wire from the in-cab wiring to it. Ensure to solder and wrap with electrical tape.

50

Step 50 of 54

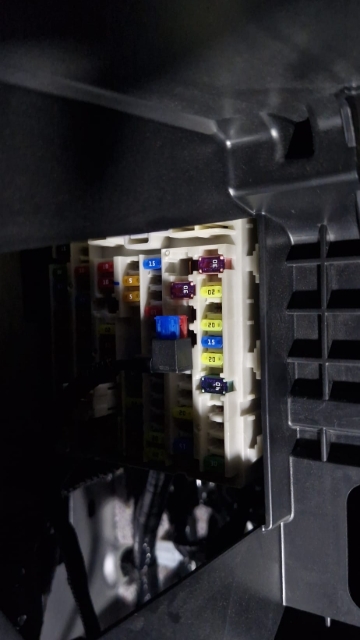

Place the fuse holder in the place shown.

51

Step 51 of 54

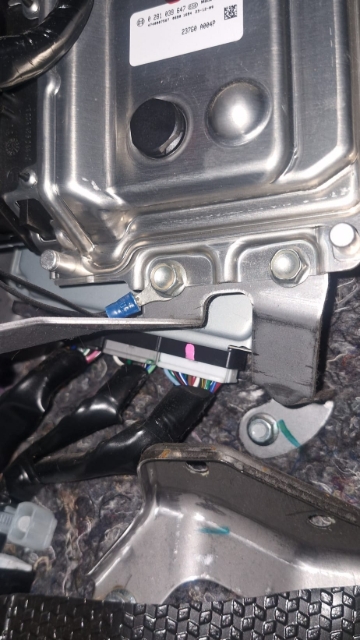

Fit the earth to the factory earth as shown.

52

Step 52 of 54

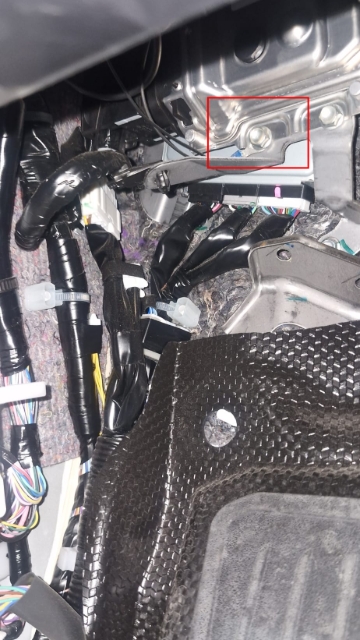

Location of factory earth bolt.

53

Step 53 of 54

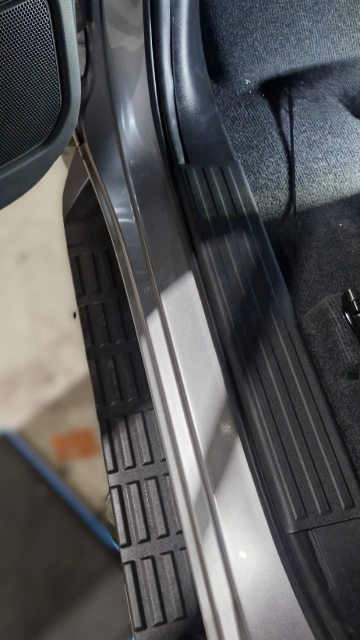

<p>Reinstall the passenger side trim panels, ensuring all clips engage correctly and the panels sit flush. Bundle any excess wiring with zip ties and stow it neatly behind the trim to prevent rattles or interference.</p>

Reinstall the passenger side trim panels, ensuring all clips engage correctly and the panels sit flush. Bundle any excess wiring with zip ties and stow it neatly behind the trim to prevent rattles or interference.

54

Step 54 of 54

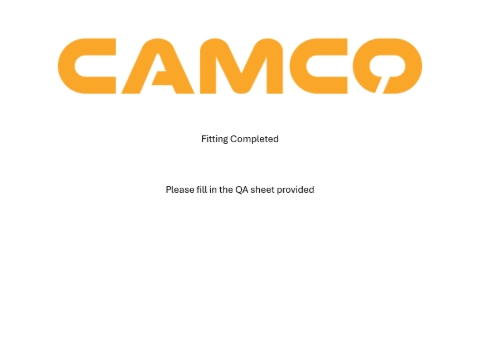

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
