Fuel Filler, Hilux Dual Cab
1
Step 1 of 11

Suits 2015-Present

These instructions vary slightly depending on if vehicle had a “Tub” or is a “Cab Chassis” Examples of both as shown below.

2
Step 2 of 11

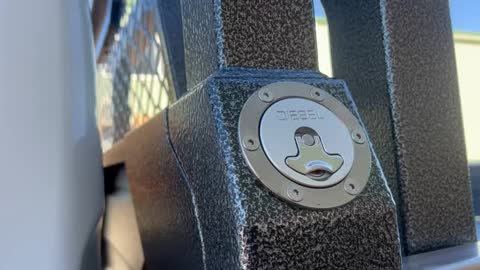

It will look like this when completed

3
Step 3 of 11
<p><strong>Tools Required</strong></p> <ul> <li>10mm Socket</li> <li>Pliers</li> </ul>

Tools Required

  • 10mm Socket
  • Pliers
4
Step 4 of 11

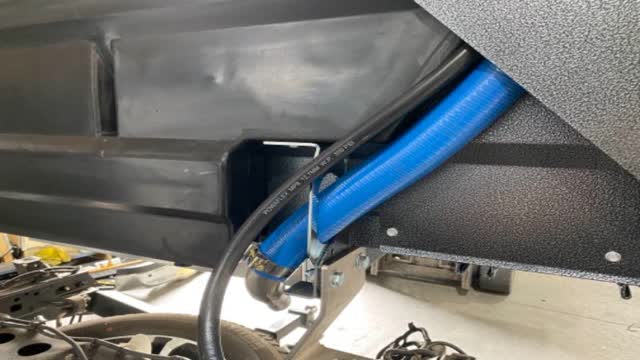

<p>Tray will come like this, hoses pre fitted. Above photo shows how it would be when fitted with the optional headboard water tank</p>

Tray will come like this, hoses pre fitted. Above photo shows how it would be when fitted with the optional headboard water tank

5
Step 5 of 11

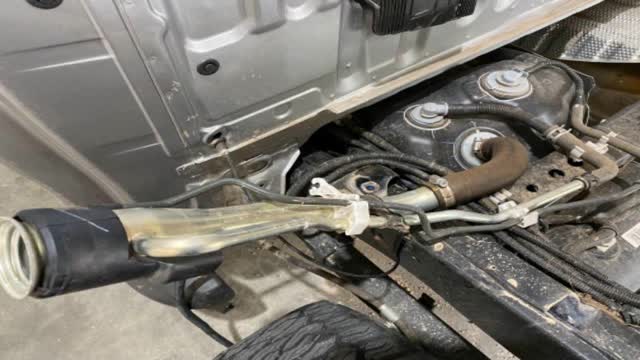

<p>Original filler looks like this, remove it - it is not reused.</p> <p>•10mm for main hose clamp • Pliers for breather clamp</p>

Original filler looks like this, remove it - it is not reused.

•10mm for main hose clamp • Pliers for breather clamp

6
Step 6 of 11

Loosen clamp on tank (10mm)

Rotate hose forward as shown

(Leave hose clamp loose for now)

7
Step 7 of 11

Lower tray onto vehicle, should look like this

8
Step 8 of 11

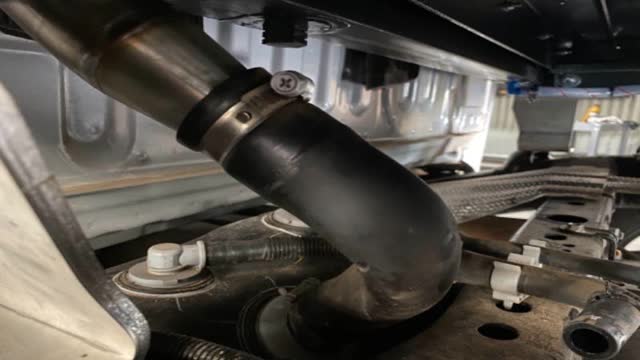

<p>Connect main hose, reusing original hose clamp</p> <p>Use common sense! Ensure no kinks in delivery hose Trim hose if required to make it work</p>

Connect main hose, reusing original hose clamp

Use common sense! Ensure no kinks in delivery hose Trim hose if required to make it work

9
Step 9 of 11

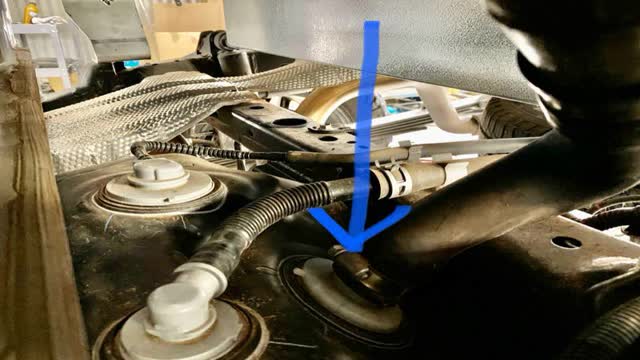

<p>Important! Tighten clamp to vehicle tank</p>

Important! Tighten clamp to vehicle tank

10
Step 10 of 11

Looks like this on a “cab chassis” vehicle

The breather is slightly different

11
Step 11 of 11

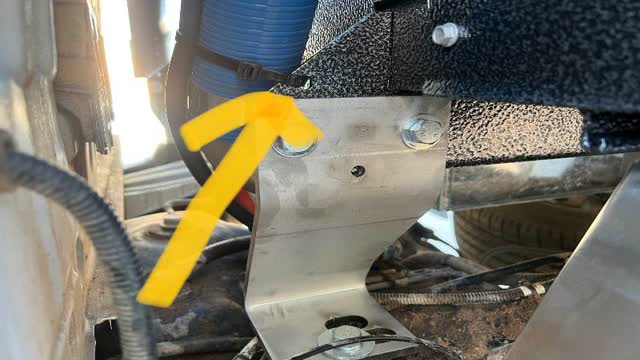

<p>Fit zip tie here</p>

Fit zip tie here
