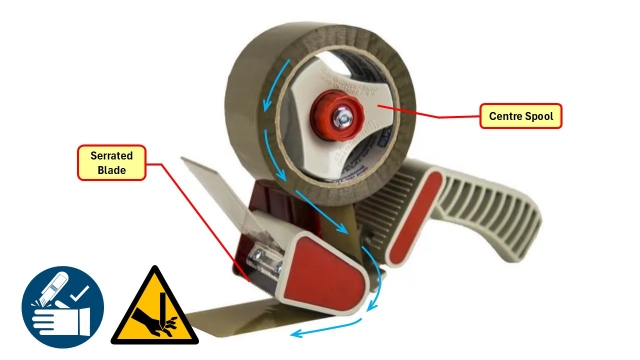

Load the Tape Gun:

• Place a roll of packaging tape over the centre spool.

• Feed the tape around the rubber press roller as indicated by the blue arrows.

• The sticky side of the tape must face outwards

Note: Beware of the sharp serrated blade. Wear cut resistant gloves. Tape tension is adjusted by twisting the knob on the centre spool.

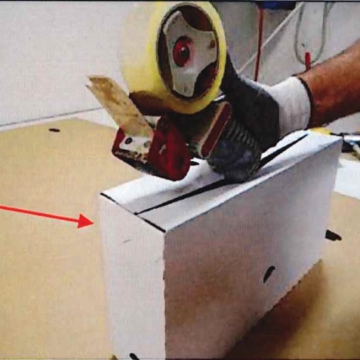

Start Taping:

• Position the black press roller at the beggining of the carton join.

• The gun should be positioned so the tape is centered on the carton join.

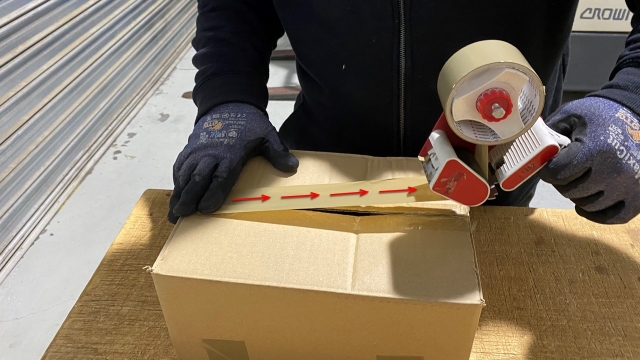

Apply tape:

• Pull the tape gun along the length of the carton join in a smooth motion applying downward pressure.

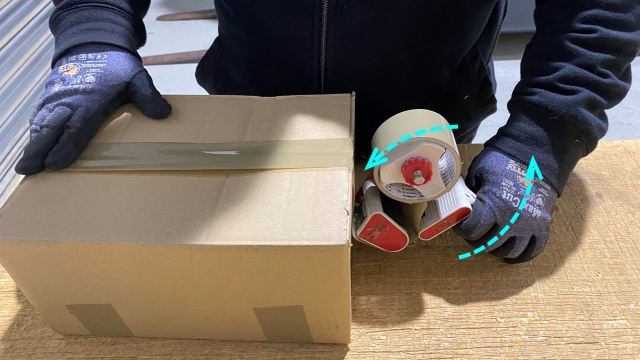

Cut the Tape:

• When you've reached the end, push the clear tape against the tape to press it down agist the carton.

• Tilt the rear of the tape gun upward and the serrated blade down to cut the tape.
