SHELVING, VERSI ON TRANSIT SPLIT DRAWER
1
Step 1 of 14
2
Step 2 of 14

Contents (Click to view)

​STEP 3: Components List​

​STEP 5: Tools List​

​STEP 6: Fitting Versi to Floor​

​STEP 10: Fitting Roof Mounts​

​STEP 13: Securing Legs​

​STEP 14: QA Sheet​

3
Step 3 of 14

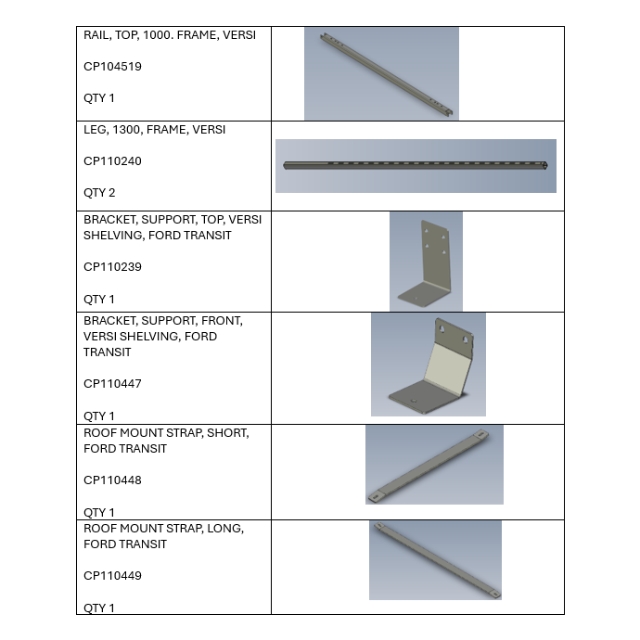

<p>Components List</p>

Components List

4
Step 4 of 14

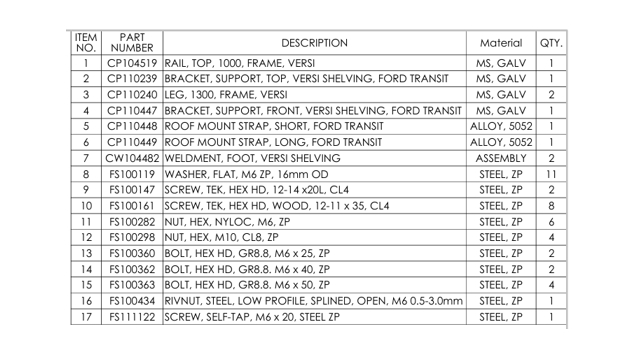

<p>Components List</p>

Components List

5
Step 5 of 14

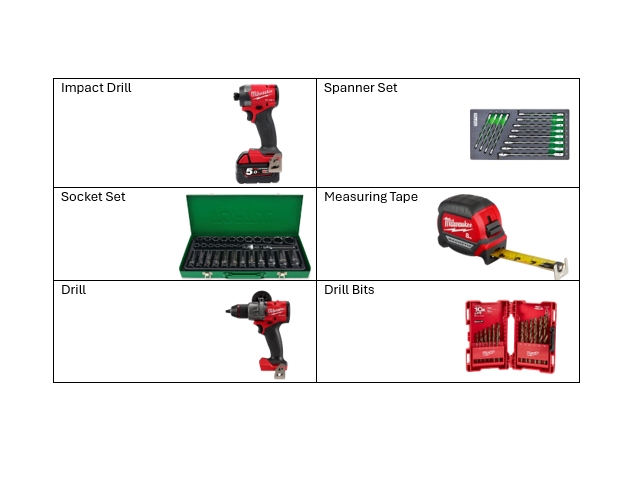

<p>Tool List</p>

Tool List

6
Step 6 of 14

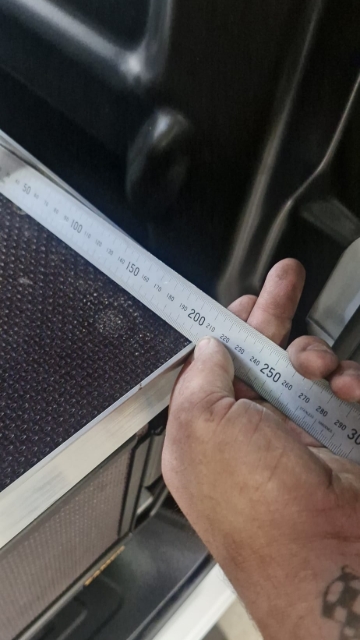

<p>Measure from the leg (CP110240) to the end of the shelf as shown they measurement should be 205mm.</p>

Measure from the leg (CP110240) to the end of the shelf as shown they measurement should be 205mm.

7
Step 7 of 14

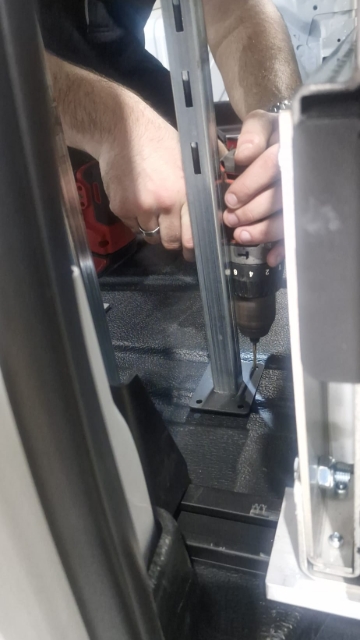

<p>Drill a pilot hole into the base of the leg (CP110240) and into the van floor.</p>

Drill a pilot hole into the base of the leg (CP110240) and into the van floor.

8
Step 8 of 14

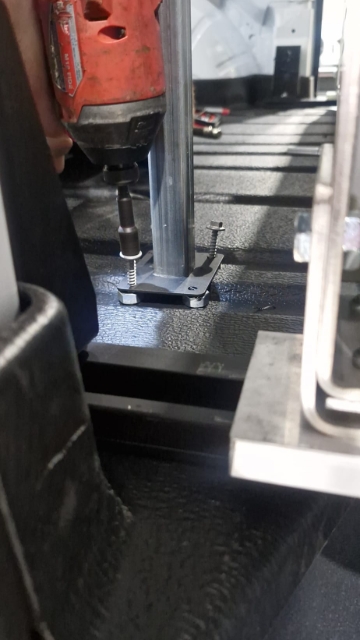

<p>Mount the leg to the floor using hex tec screws, ensuring that it is clear below.</p>

Mount the leg to the floor using hex tec screws, ensuring that it is clear below.

9
Step 9 of 14

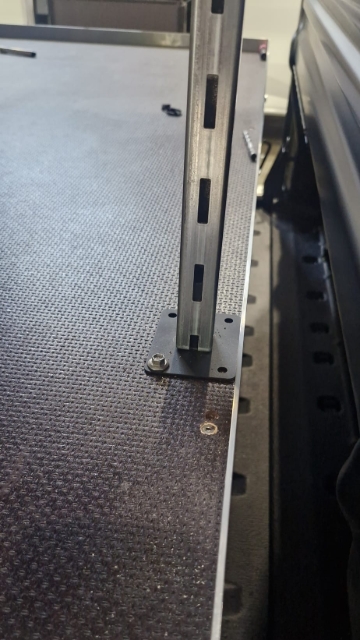

<p>Mount the leg onto the drawer floor using hex tec screws.</p>

Mount the leg onto the drawer floor using hex tec screws.

10
Step 10 of 14

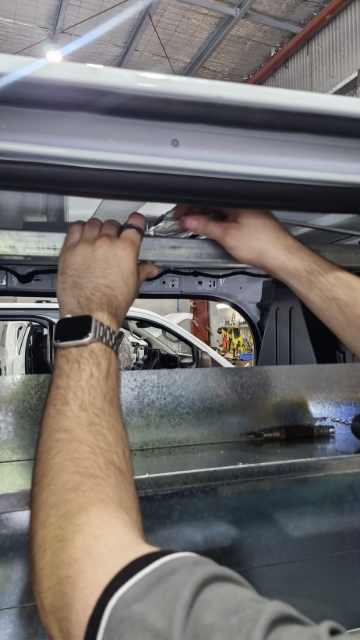

<p>Fit the roof mount straps (CP110448/49) to the top rail (CP104519).</p>

Fit the roof mount straps (CP110448/49) to the top rail (CP104519).

11
Step 11 of 14

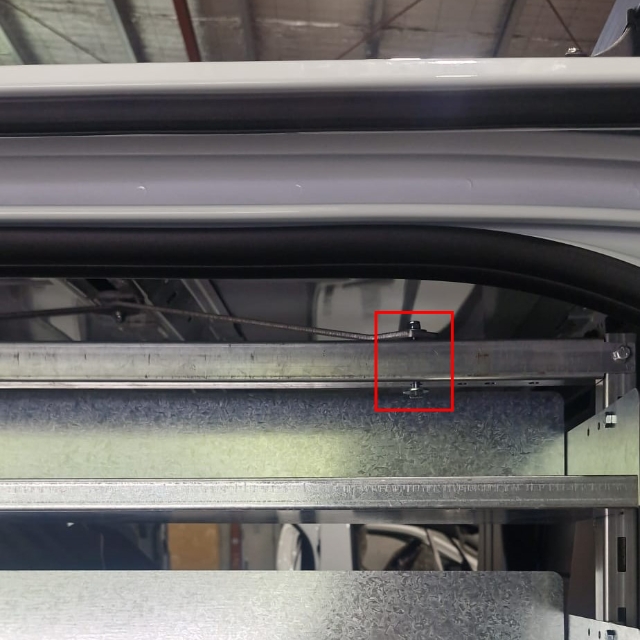

<p>Bolt the straps to the railing.</p>

Bolt the straps to the railing.

12
Step 12 of 14

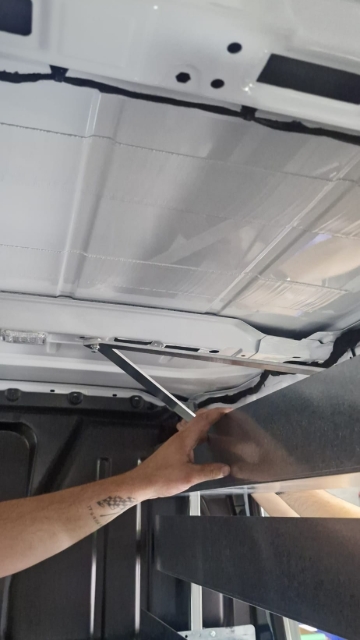

<p>Mount the straps to the roof</p>

Mount the straps to the roof

13
Step 13 of 14

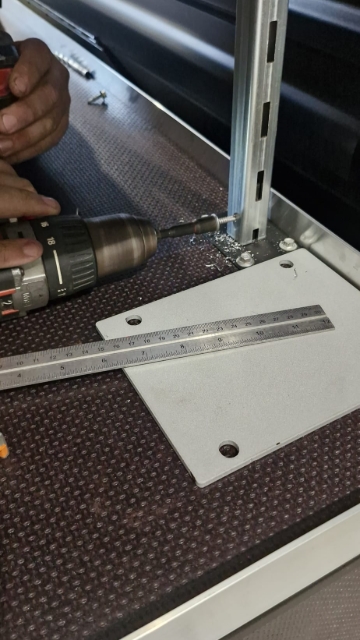

<p>Screw a tec screw into the side of the leg on the drawer to hold it in place.</p>

Screw a tec screw into the side of the leg on the drawer to hold it in place.

14
Step 14 of 14

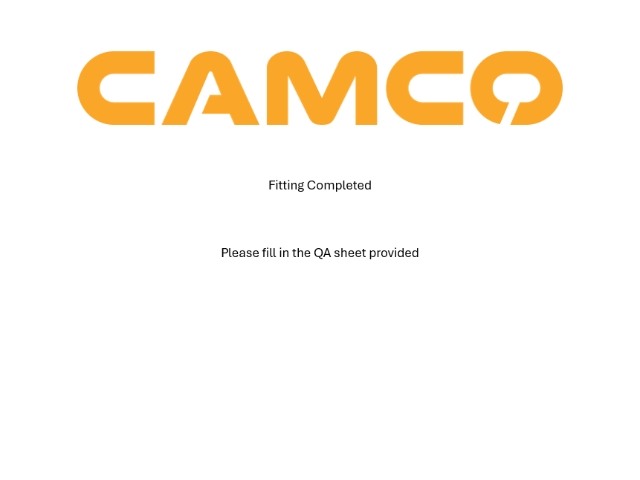

<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>If you have issues with instructions and need assistance, please contact.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:roman@camcoindustries.co.nz">roman@camcoindustries.co.nz</a></p><p>+64 21 349 001</p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If you have issues with instructions and need assistance, please contact.

roman@camcoindustries.co.nz

+64 21 349 001



If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
