Fuel Filler, Ranger/BT50, Extra Cab
1
Step 1 of 11

Suits: Ranger 2012-Present BT50 2012-2020 (not the "New" BT50)

2
Step 2 of 11

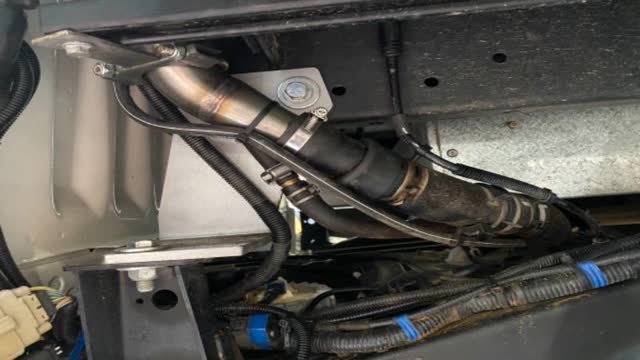

<p>Completed photo</p>

Completed photo

3
Step 3 of 11

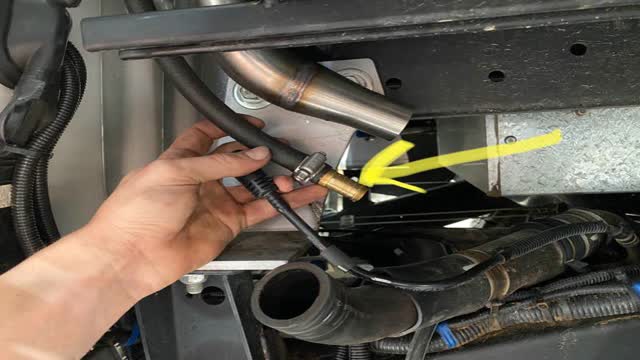

<p>Identify breather hose attached to Tray</p>

Identify breather hose attached to Tray

4
Step 4 of 11

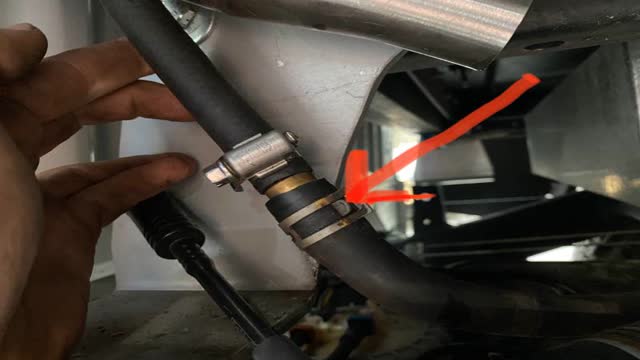

<p>Connect to vehicle. Use original clamp (shown with red arrow)</p>

Connect to vehicle. Use original clamp (shown with red arrow)

5
Step 5 of 11

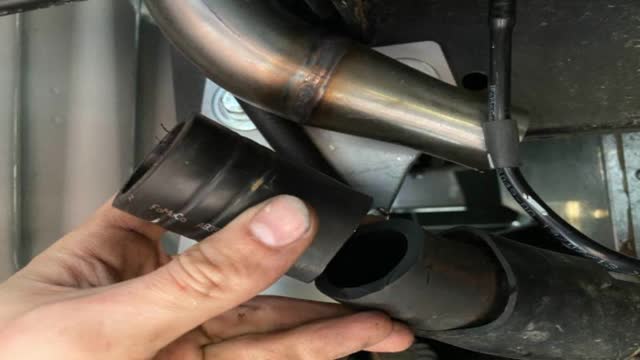

<p>Trim (approx 60mm) of original hose to suit stainless pipe</p>

Trim (approx 60mm) of original hose to suit stainless pipe

6
Step 6 of 11

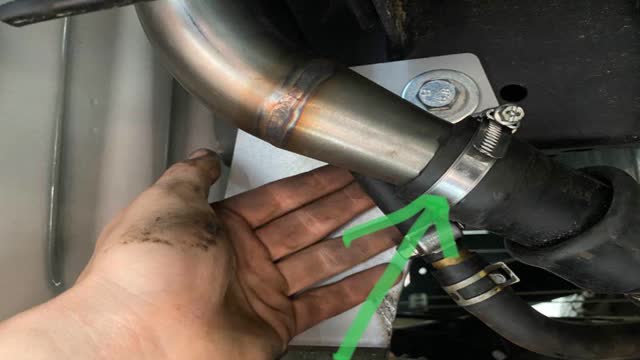

<p>Connect main delivery hose. Use supplied clamp (shown in green) Tighten</p>

Connect main delivery hose. Use supplied clamp (shown in green) Tighten

7
Step 7 of 11

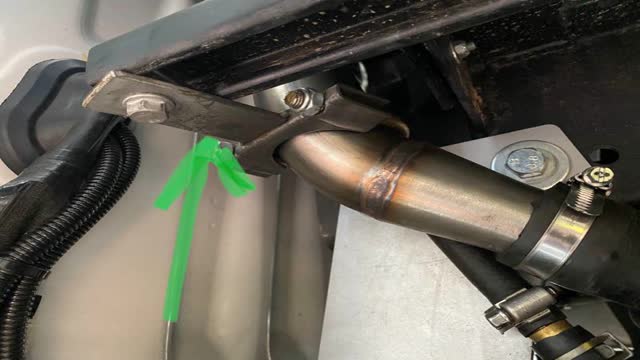

<p>Fit supplied clamp so system doesn’t shake around</p>

Fit supplied clamp so system doesn’t shake around

8
Step 8 of 11

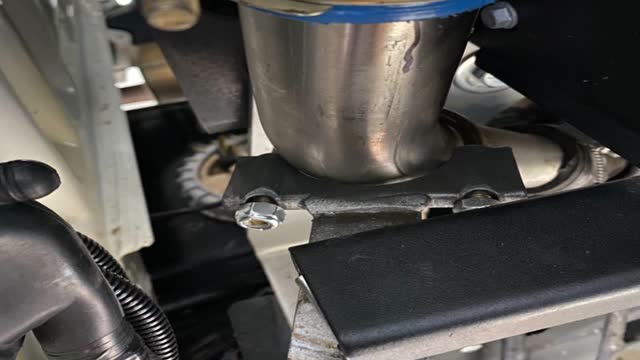

<p>A view from above of securing clamp</p>

A view from above of securing clamp

9
Step 9 of 11

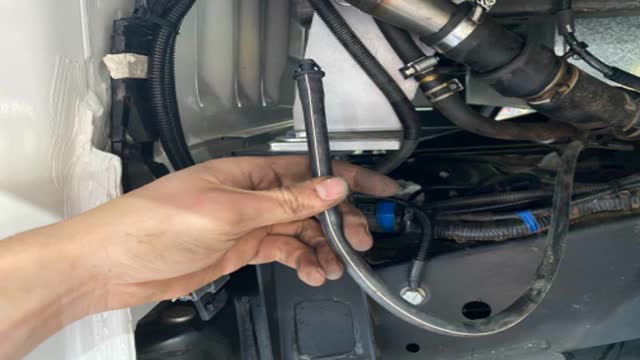

<p>Identify the differential breather</p>

Identify the differential breather

10
Step 10 of 11

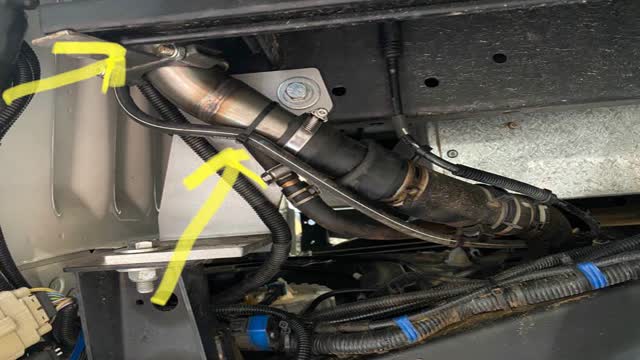

<p>Zip tie the diff breather to main delivery hose</p> <p>We want it to be as high as possible as it is effectively a snorkel for the diff</p>

Zip tie the diff breather to main delivery hose

We want it to be as high as possible as it is effectively a snorkel for the diff

11
Step 11 of 11

Check no kinks to any hoses, and that all clamps are secure
