Finished Milking.1.2

Knowby

Finished Milking.1.2

1

Step 1 of 24

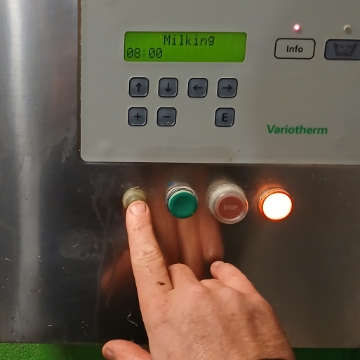

<p>Hold <strong>black button </strong>in for 10 seconds </p><p>Air compresser in centre of dairy will start purging milk </p>

Hold black button in for 10 seconds

Air compresser in centre of dairy will start purging milk

2

Step 2 of 24

<p>Close both taps and disconnect vat 1 </p>

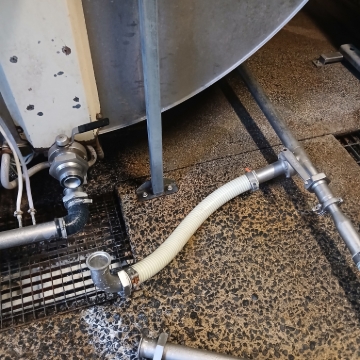

Close both taps and disconnect vat 1

3

Step 3 of 24

Hose will shake as last of milk is blown into vat 2

Close tap & Disconnect vat 2 and connect to wash line

4

Step 4 of 24

<p><span style="background-color: unset; font-size: 1em; text-align: inherit;">May need to connect </span><strong style="background-color: unset; font-size: 1em; text-align: inherit;">blue hose</strong><span style="background-color: unset; font-size: 1em; text-align: inherit;"> if dirty? </span></p><p><span style="background-color: unset; font-size: 1em; text-align: inherit;">Most likely afternoon wash.</span></p>

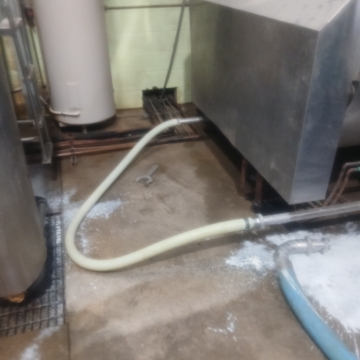

May need to connect blue hose if dirty?

Most likely afternoon wash.

5

Step 5 of 24

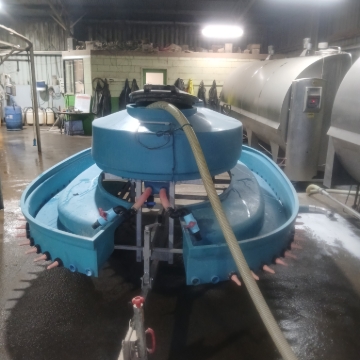

<p>Hose in calf trailer if feeding calves? </p><p>Check trailer taps are closed? </p>

Hose in calf trailer if feeding calves?

Check trailer taps are closed?

6

Step 6 of 24

<p>Pay attention to Vat temperatures</p>

Pay attention to Vat temperatures

7

Step 7 of 24

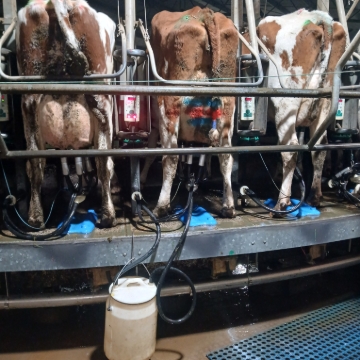

<p>Milk any RED cows in calf trailer.</p><p>BLUE & RED treated cows in <strong>test</strong> <strong>bucket</strong> .</p>

Milk any RED cows in calf trailer.

BLUE & RED treated cows in test bucket .

8

Step 8 of 24

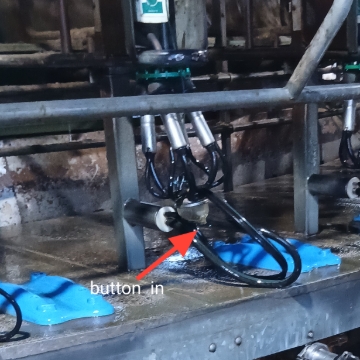

<p>Clean dairy platform and milking cups . </p><p>Push cups in jetties. </p><p>Don't tangle hoses </p><p>Buttons on claw  bowls must be pushed in </p>

Clean dairy platform and milking cups .

Push cups in jetties.

Don't tangle hoses

Buttons on claw bowls must be pushed in

9

Step 9 of 24

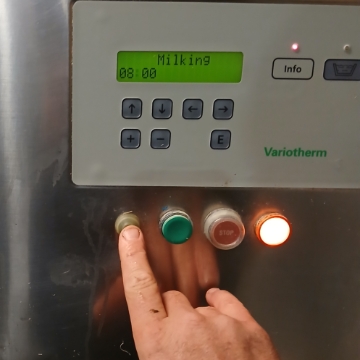

<p>Purge any calf milk into calf trailer</p><p><strong>Black</strong> <strong>button</strong> 10 seconds </p><p>Compresser will start </p>

Purge any calf milk into calf trailer

Black button 10 seconds

Compresser will start

10

Step 10 of 24

<p>Park platform </p><p>Contract washline</p><p>Open 3 snap taps</p>

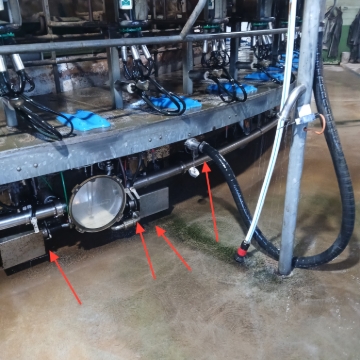

Park platform

Contract washline

Open 3 snap taps

11

Step 11 of 24

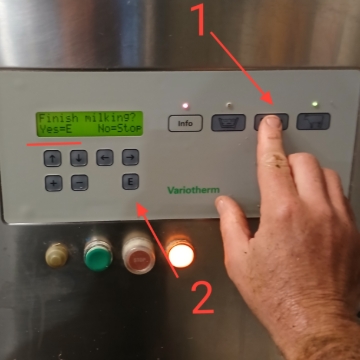

<p>End milking </p><p>Press <strong>Stop button</strong> </p><p>Press <strong>E Button</strong> to confirm </p>

End milking

Press Stop button

Press E Button to confirm

12

Step 12 of 24

<p><span style="background-color: unset; font-size: 1em; text-align: inherit;">Connect wash line tee</span></p><p><span style="background-color: unset; font-size: 1em; text-align: inherit;">Open tap</span></p>

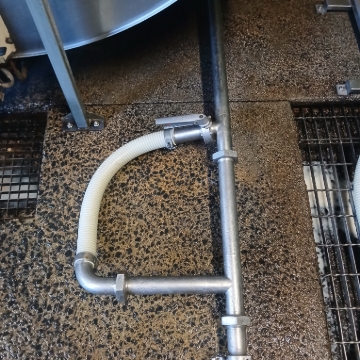

Connect wash line tee

Open tap

13

Step 13 of 24

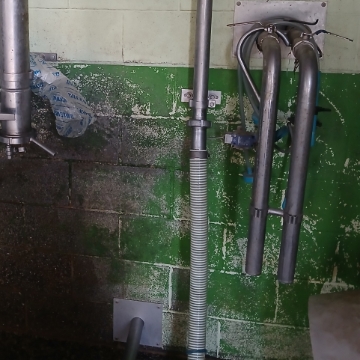

<p>Connect wash line</p>

Connect wash line

14

Step 14 of 24

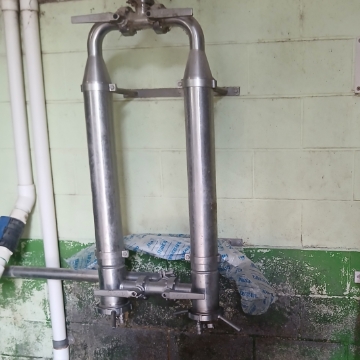

<p>Drain milk filters </p><p>Change filters socks</p><p>Shut drain taps</p>

Drain milk filters

Change filters socks

Shut drain taps

15

Step 15 of 24

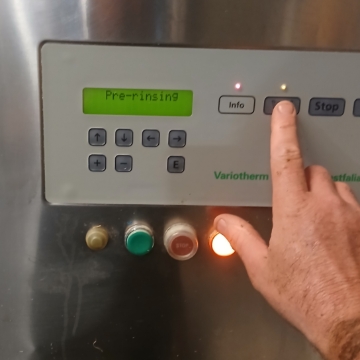

<p>Start Auto wash</p><p>Press wash bucket </p><p>Screen will change to pre-wash</p><p>Should hear  water filling wash drum. </p>

Start Auto wash

Press wash bucket

Screen will change to pre-wash

Should hear water filling wash drum.

16

Step 16 of 24

<p>Should start washing </p><p>Listen for any air leaks </p><p>Wash is all set!! </p>

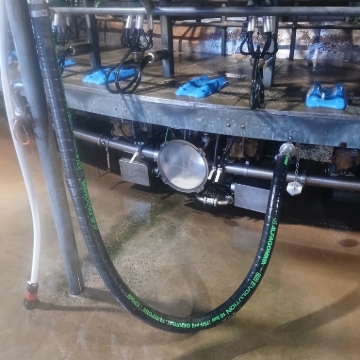

Should start washing

Listen for any air leaks

Wash is all set!!

17

Step 17 of 24

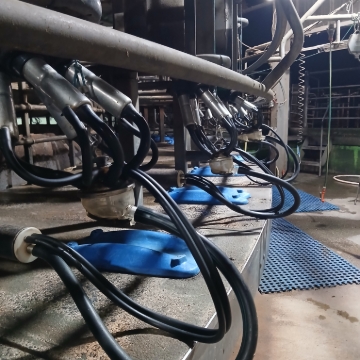

<p>Finish cleaning dairy </p>

Finish cleaning dairy

18

Step 18 of 24

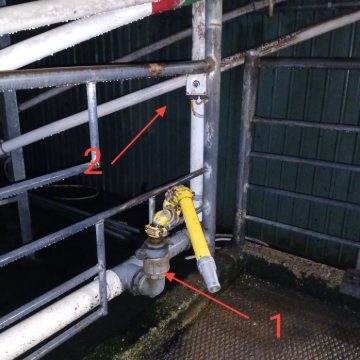

<p>Wash yards </p><p>Open tap</p><p>Press start button </p><p>Hold wash gun firmly</p><p>When finished close tap slowly </p><p>Pump will Auto stop</p>

Wash yards

Open tap

Press start button

Hold wash gun firmly

When finished close tap slowly

Pump will Auto stop

19

Step 19 of 24

<p>Set-up yard gate for next milking </p>

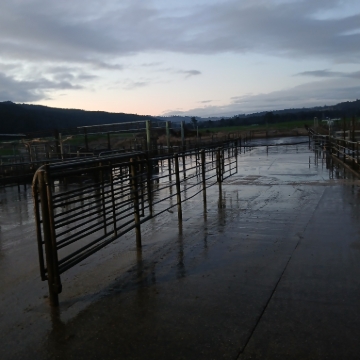

Set-up yard gate for next milking

20

Step 20 of 24

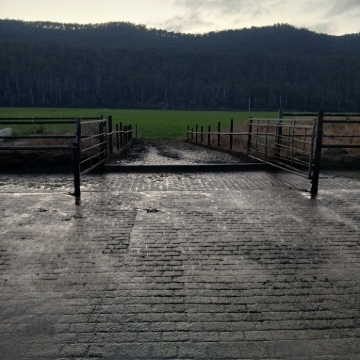

<p>Set-up yard entry gates for next milk. </p><p>Maybe different gates if cows are coming from a different direction.</p>

Set-up yard entry gates for next milk.

Maybe different gates if cows are coming from a different direction.

21

Step 21 of 24

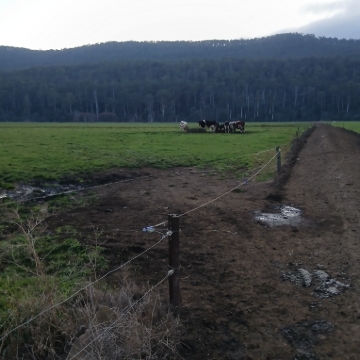

<p>Lock Red herd away.</p><p>They my need a strip of grass ? </p>

Lock Red herd away.

They my need a strip of grass ?

22

Step 22 of 24

<p>Check cows have water</p>

Check cows have water

23

Step 23 of 24

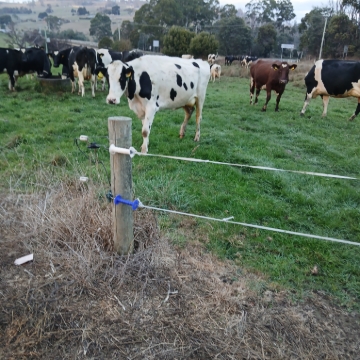

<p>Shut cows gate</p>

Shut cows gate

24

Step 24 of 24

<p>Check Vat temperature before leaving </p><p>Turn off all lights and close door. </p><p>Last to leave close gate at railway line. Dairy side of line.</p><p>Should be all done !</p>

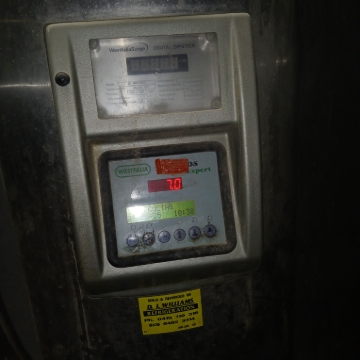

Check Vat temperature before leaving

Turn off all lights and close door.

Last to leave close gate at railway line. Dairy side of line.

Should be all done !
