Prep Fuel Filler: "V3" Amarok Dual Cab
1
Step 1 of 7

It should look like this

2
Step 2 of 7

Identify correct bracket, 101-259

Plus, 4 x M6x 16mm Bolts 4 x M6 Nyloc Nuts

3
Step 3 of 7

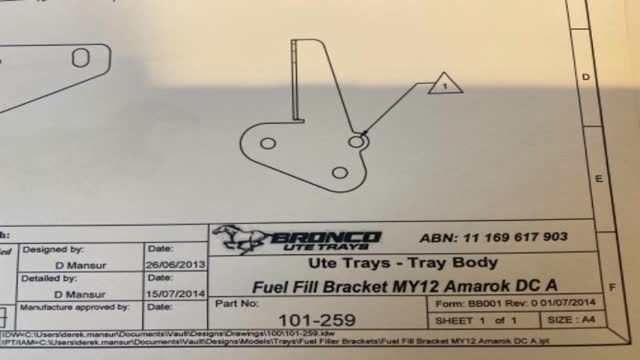

<p>Drawing</p>

Drawing

4
Step 4 of 7

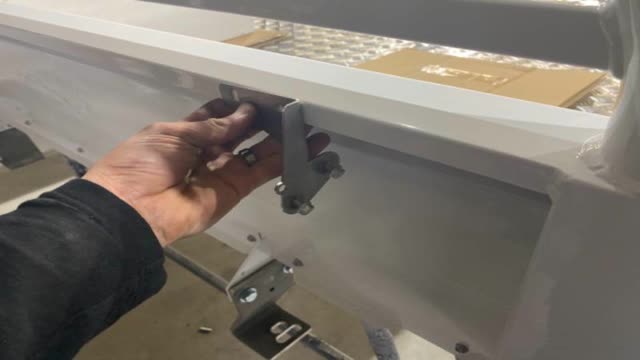

<p>Fit bracket to passenger side of low headboard</p>

Fit bracket to passenger side of low headboard

5
Step 5 of 7

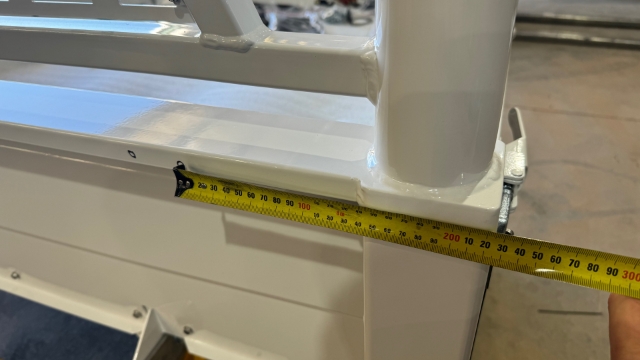

<p>The outside hole should be approx 220mm from outside of tray headboard</p>

The outside hole should be approx 220mm from outside of tray headboard

6
Step 6 of 7

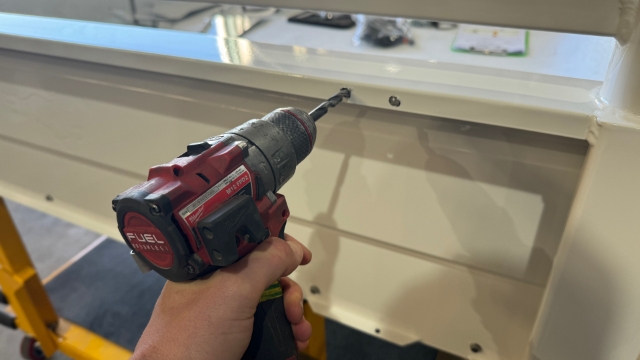

<p>Drill holes m8</p>

Drill holes m8

7
Step 7 of 7

Mounted in position. It should look like this when complete.
