Re-Fit Reversing Sensors: Ford PX Ranger

1

Step 1 of 13

Mounting instructions will vary slightly depending on the style of Tail Lights fitted to Tray - Both options shown below.

2

Step 2 of 13

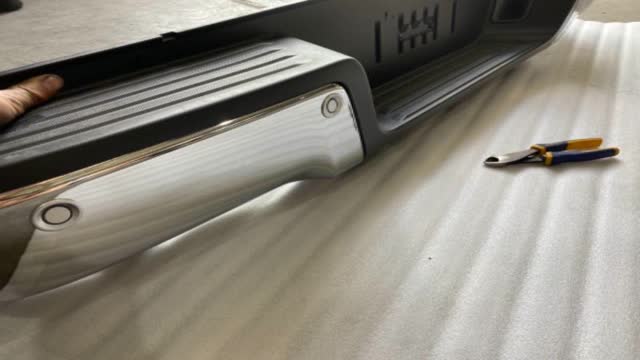

<p>Lay original bumper on mat</p>

Lay original bumper on mat

3

Step 3 of 13

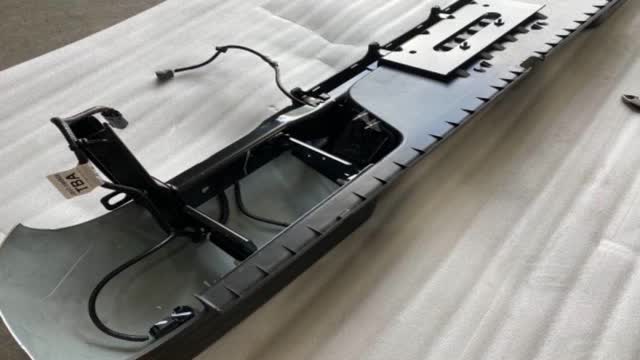

<p>Face down to access the harness</p>

Face down to access the harness

4

Step 4 of 13

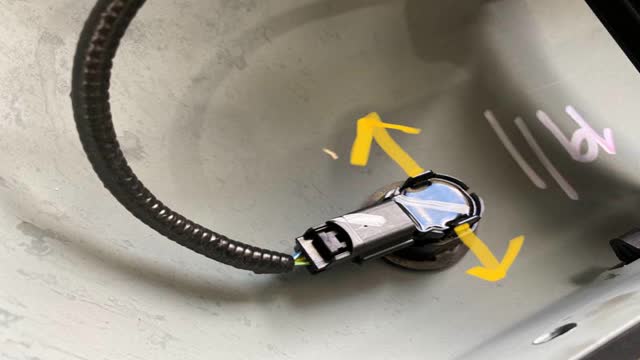

<p>Spread Clips out slightly</p>

Spread Clips out slightly

5

Step 5 of 13

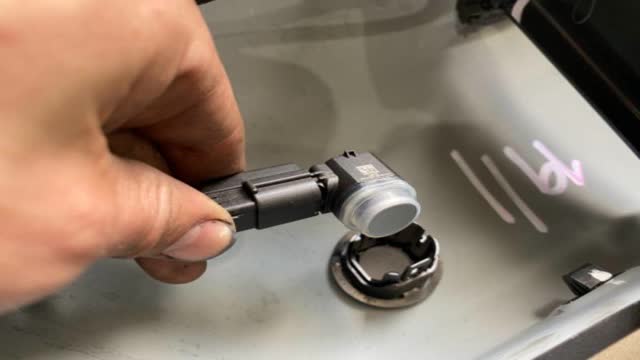

<p>Sensor will pop out</p>

Sensor will pop out

6

Step 6 of 13

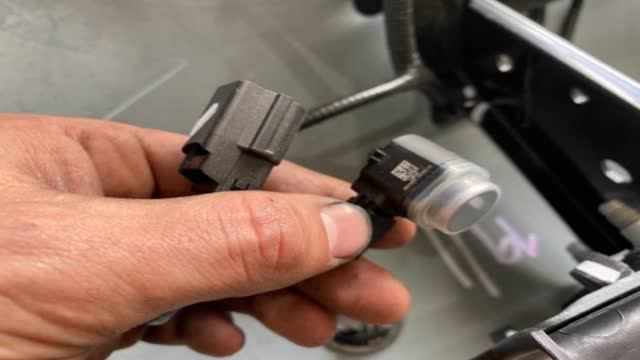

<p>Unplug it</p>

Unplug it

7

Step 7 of 13

Rotate lic plate plugs

8

Step 8 of 13

Remove harness from bumper

9

Step 9 of 13

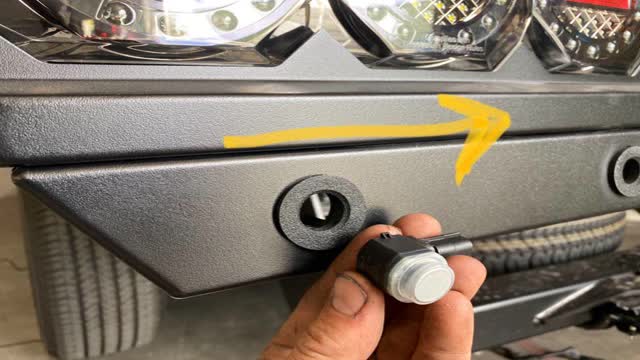

<p>Looks like this for standard LED Tail lights.</p>
<p>For "Integrated" Tail lights, it is necessary to remove LED, to access the back of the sensors.</p>
<p>Sensor will face in (towards centre of vehicle)</p>

Looks like this for standard LED Tail lights.

For "Integrated" Tail lights, it is necessary to remove LED, to access the back of the sensors.

Sensor will face in (towards centre of vehicle)

10

Step 10 of 13

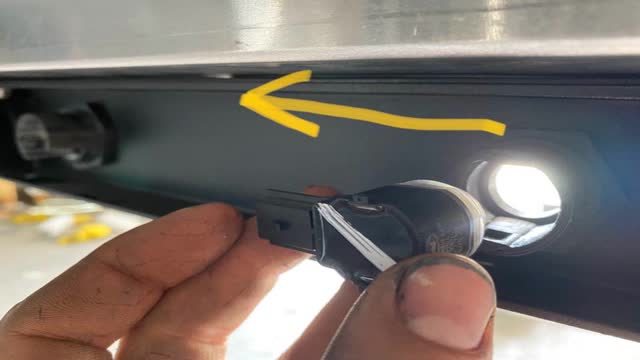

<p><em><strong>Shown from the back side</strong></em></p>
<p>Sensors will Face in</p>

Shown from the back side

Sensors will Face in

11

Step 11 of 13

Push sensor into the supplied 3D printed bracket, seats nicely

12

Step 12 of 13

Repeat for other sensors, moving them over one at a time

13

Step 13 of 13

With a second person, put vehicle into reverse and check to see if sensors are working.
