Cab Chassis Prep: "RG" BT50 & DMax
1
Step 1 of 10

For the latest (2020 on model). Use same instructions for both DMax and BT50 Use same instructions for Dual Cab, Extra Can and Single Cab models.

2
Step 2 of 10

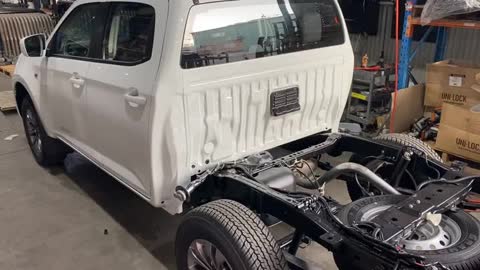

Looks like this when done

3
Step 3 of 10

Remove front fuel filler bracket, 17mm

4
Step 4 of 10

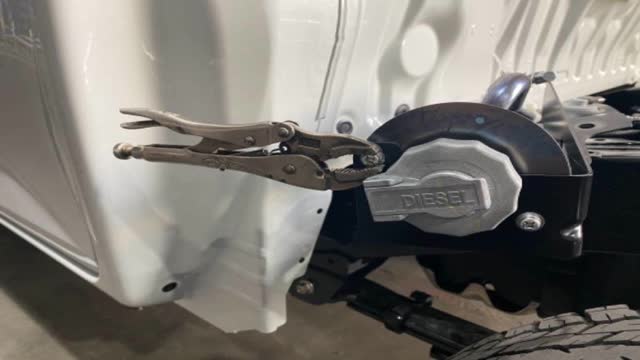

<p>Very Tight! TRICK: Often, if you just try to use a Phillips head screwdriver to undo, the bolt head will strip (the bolts are too soft....) so, it is a good idea to first use a clamp to loosen the bolt, then you can use a Phillips head to remove.</p>

Very Tight! TRICK: Often, if you just try to use a Phillips head screwdriver to undo, the bolt head will strip (the bolts are too soft....) so, it is a good idea to first use a clamp to loosen the bolt, then you can use a Phillips head to remove.

5
Step 5 of 10

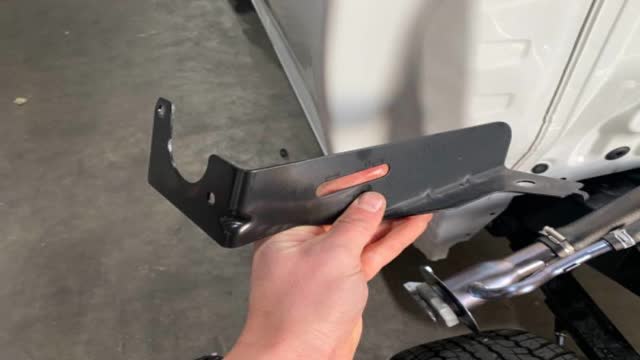

<p>Remove bracket and discard - not reused.</p>

Remove bracket and discard - not reused.

6
Step 6 of 10

Unplug harness and remove back light assembly.

7
Step 7 of 10

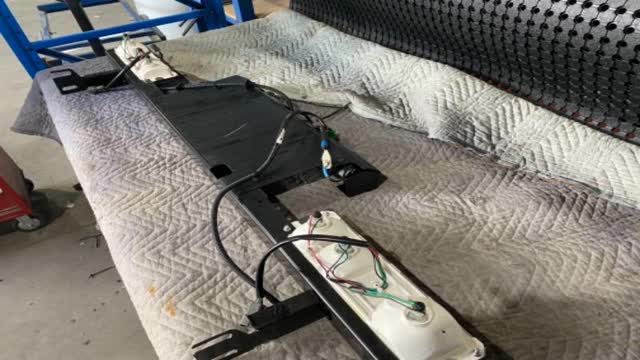

<p>Lay light assembly on a workbench.</p>

Lay light assembly on a workbench.

8
Step 8 of 10

T25 to remove camera bracket.

9
Step 9 of 10

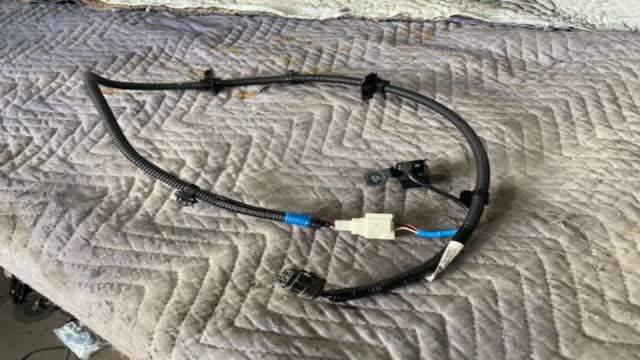

<p>Remove Camera harness</p>

Remove Camera harness

10
Step 10 of 10

Looks like this when complete
