How To - Disconnect and Connect CTI Hoses on Commercial Vehicles
How to safely and effectively disconnect and reconnect CTI lines on commercial vehicles.
How to safely and effectively disconnect and reconnect CTI lines on commercial vehicles.
1
Step 1 of 10
<p><strong>Preparation</strong></p><ul><li><p>Chock the wheels</p></li><li><p>Lock out the vehicle</p></li></ul><p></p>

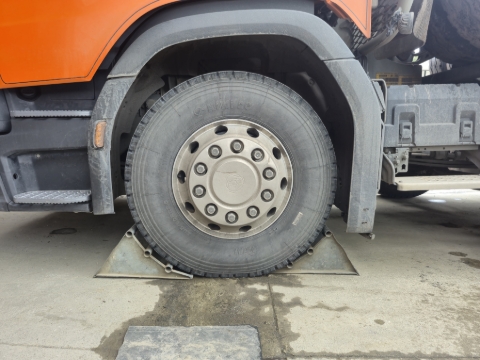

Preparation

  • Chock the wheels

  • Lock out the vehicle

2
Step 2 of 10
<p><strong>Central Taps</strong></p><p>Turn off the central taps relative to the wheels you are working on</p>

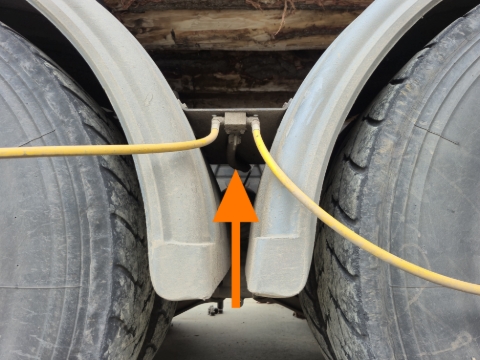

Central Taps

Turn off the central taps relative to the wheels you are working on

3
Step 3 of 10
<p><strong>Hub Taps</strong></p><p>Turn off the hub taps relative to the wheel you are working on.</p>

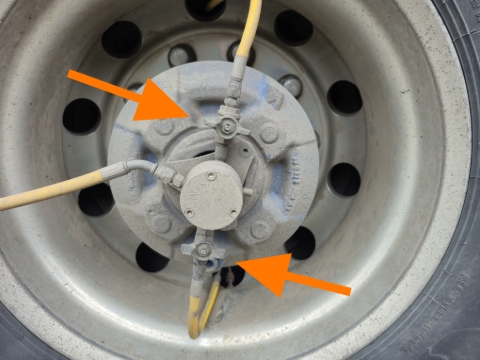

Hub Taps

Turn off the hub taps relative to the wheel you are working on.

4
Step 4 of 10
<p><strong>Undo Hoses</strong></p><p>Undo the hoses using the correct size spanner.</p><blockquote><p>Please note, air will start to rush out as soon as you have released the fitting.</p></blockquote><p></p>

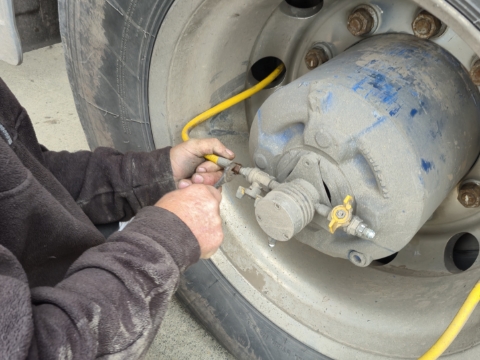

Undo Hoses

Undo the hoses using the correct size spanner.

Please note, air will start to rush out as soon as you have released the fitting.

5
Step 5 of 10
<p><strong>Unbolting and Removing the Wheel</strong></p><p>You are now able to unbolt and remove the wheel.&nbsp;</p><p>When removing the wheel, be mindful not to knock the taps, as they are very easy to damage.&nbsp;</p>

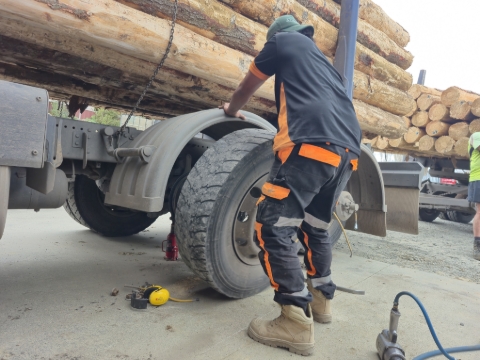

Unbolting and Removing the Wheel

You are now able to unbolt and remove the wheel.

When removing the wheel, be mindful not to knock the taps, as they are very easy to damage.

6
Step 6 of 10
<p><strong>Inflating the Tyre</strong></p><p>When inflating, make sure you get enough air in the tyres to keep them solid remembering that you will lose some when you connect the hoses. </p><p>Don’t worry about getting the air pressure exact, the CTI will sort this out. </p><p>Use CTI fittings to attach to end of the hose to stop the tyre from losing air after inflating. </p>

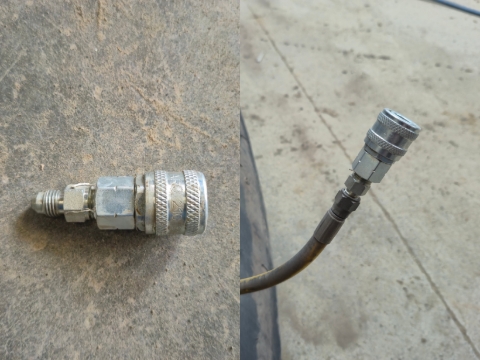

Inflating the Tyre

When inflating, make sure you get enough air in the tyres to keep them solid remembering that you will lose some when you connect the hoses.

Don’t worry about getting the air pressure exact, the CTI will sort this out.

Use CTI fittings to attach to end of the hose to stop the tyre from losing air after inflating.

7
Step 7 of 10
<p><strong>Installing the Wheel</strong></p><p>Install the wheel.</p><p>When installing the the wheel, be mindful not to knock the taps, as they are very easy to damage.&nbsp;</p><p>When positioning the wheel on the hub, ensure that the lines can reach the taps and tighten without being forced or stretched. This is crucial.</p><p>When feeding the inner hose through to the outer wheel, make sure the hose comes through two holes level with each other, so that the hose doesn't get pinched when tightening the wheel.</p><p></p>

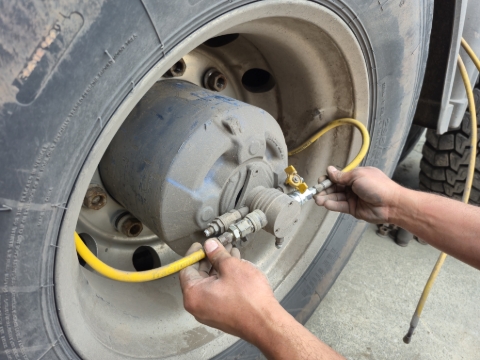

Installing the Wheel

Install the wheel.

When installing the the wheel, be mindful not to knock the taps, as they are very easy to damage.

When positioning the wheel on the hub, ensure that the lines can reach the taps and tighten without being forced or stretched. This is crucial.

When feeding the inner hose through to the outer wheel, make sure the hose comes through two holes level with each other, so that the hose doesn't get pinched when tightening the wheel.

8
Step 8 of 10
<p><strong>Connecting the Hoses</strong></p><p>Remove the CTI fitting from hoses and screw the hoses on to the taps. </p><p>Re-screw carefully as to not cross-thread them, don’t let the air rushing out make you panic. </p><blockquote><p>Note: Only use silicone based lubricants if you have to, as other sprays can dry out or damage the rubber O-rings in the airlines.</p></blockquote><p></p>

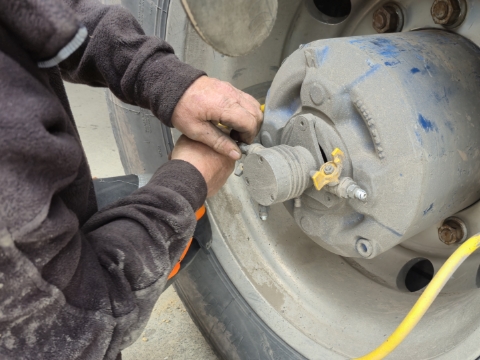

Connecting the Hoses

Remove the CTI fitting from hoses and screw the hoses on to the taps.

Re-screw carefully as to not cross-thread them, don’t let the air rushing out make you panic.

Note: Only use silicone based lubricants if you have to, as other sprays can dry out or damage the rubber O-rings in the airlines.

9
Step 9 of 10
<p><strong>Turn on Taps</strong></p><p>Remember to turn all the taps that you previously turned off, back on</p>

Turn on Taps

Remember to turn all the taps that you previously turned off, back on

10
Step 10 of 10

Thank you for viewing these instructions on how to disconnect and connect CTI hoses on commercial vehicles. You should now have a greater understanding on this topic.
