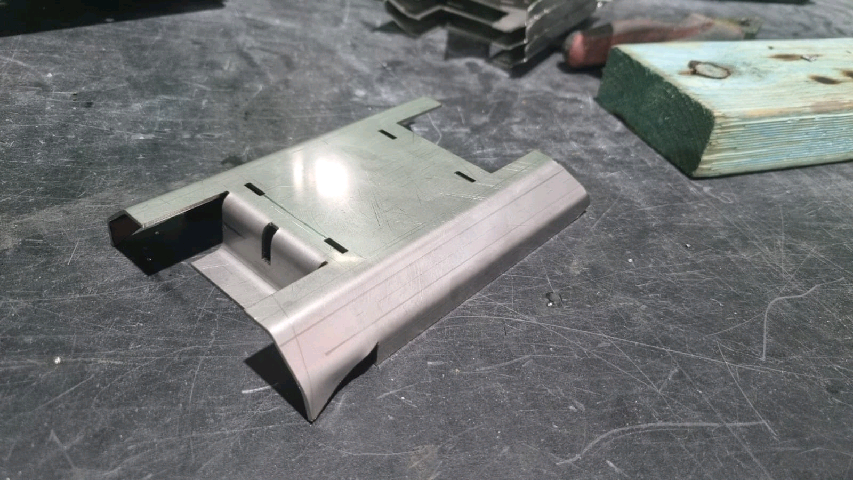

Fold SD Latch housing plate LT-060-E02 A stage 2
1
Step 1 of 3

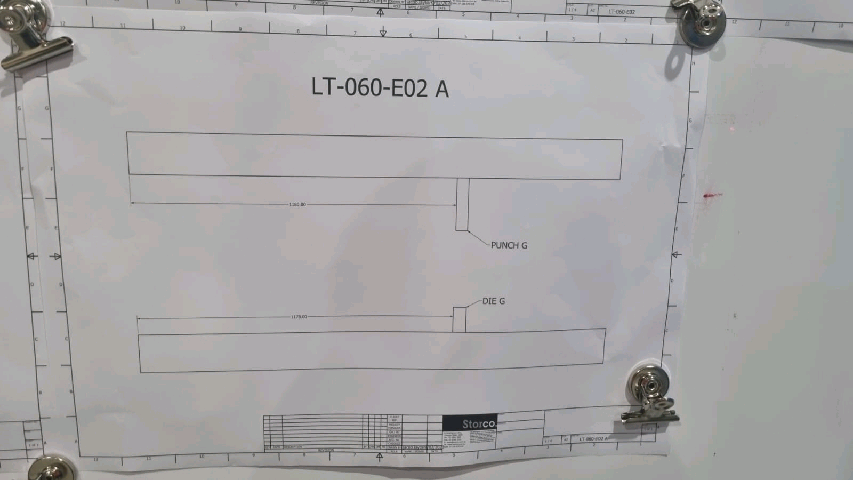

<p>Follow the 'Prima Press Program' knowby, to load required program: Ensure tooling is arranged according to tooling program drawing</p>

Follow the 'Prima Press Program' knowby, to load required program: Ensure tooling is arranged according to tooling program drawing

2
Step 2 of 3

Make first fold with stage 1 sides facing down. Make sure bottom tool is not extending past tab being folded

3
Step 3 of 3

Turn piece over and push side wings into back stop. Again ensure bottom tool doesn't extend past tab and fold.
