ASSEBMBLY, UNDERDECK TOOLBOX
1
Step 1 of 17
2

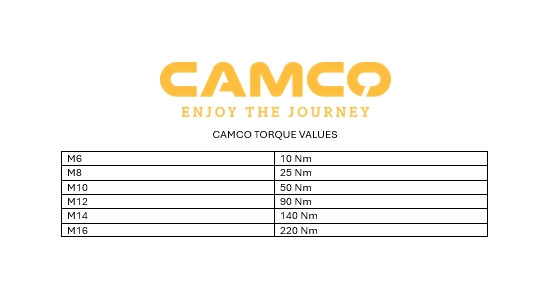

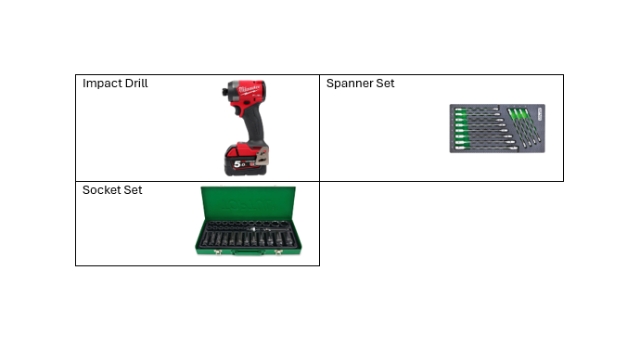

Step 2 of 17

Contents (Click to view)

​STEP 3: Components List​

​STEP 10: Toolbox Assembly​

​STEP 17: QA Sheet​

3
Step 3 of 17

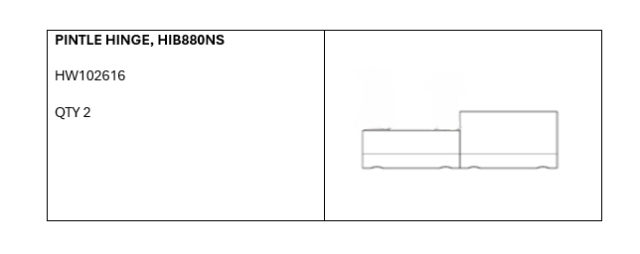

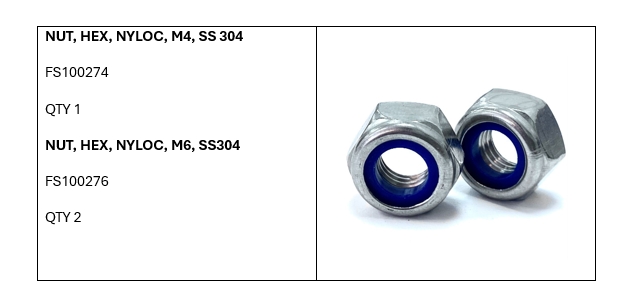

<p>Components</p><p></p>

Components

4
Step 4 of 17

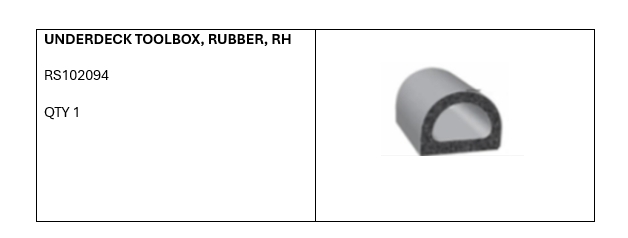

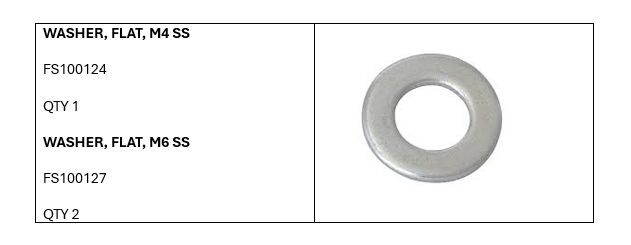

<p>Components</p>

Components

5
Step 5 of 17

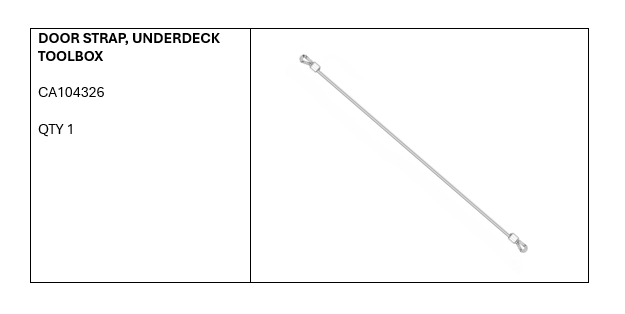

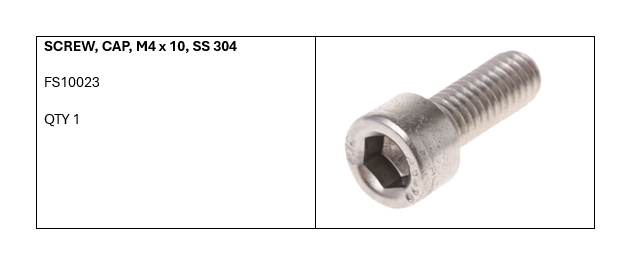

<p>Components</p>

Components

6
Step 6 of 17

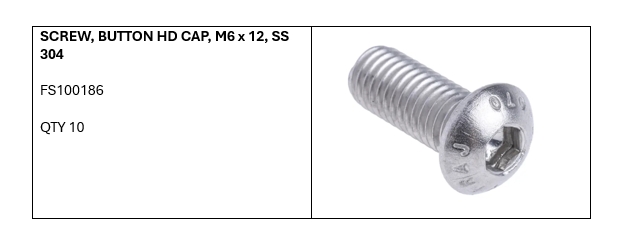

<p>Components</p>

Components

7
Step 7 of 17
<p>Components</p>

Components

8
Step 8 of 17
<p>Components</p>

Components

9
Step 9 of 17
<p>Components</p>

Components

10
Step 10 of 17

Fit D-seal around the edges of the toolbox door.

11
Step 11 of 17

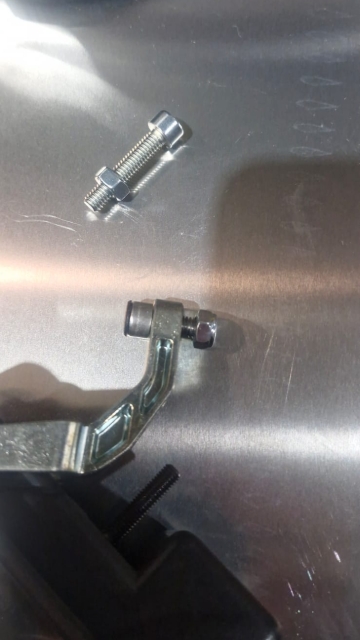

<p>Take the original pin out and put the new pin in with an M6 bolt on the bottom to the new pin.</p>

Take the original pin out and put the new pin in with an M6 bolt on the bottom to the new pin.

12
Step 12 of 17

Fit the latch to the door.

13
Step 13 of 17

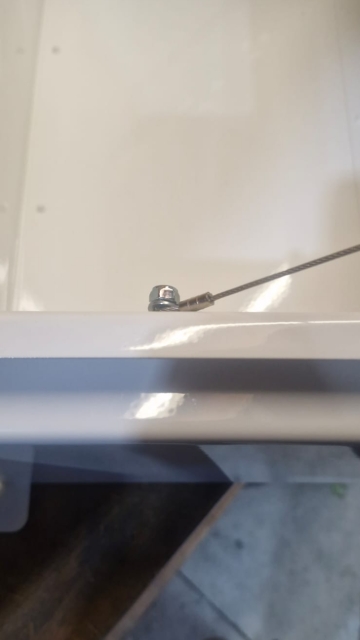

<p>Fit the wire to the side of the box using M6 button head bolt with M6 spring washer and M6 nyloc nut.</p>

Fit the wire to the side of the box using M6 button head bolt with M6 spring washer and M6 nyloc nut.

14
Step 14 of 17

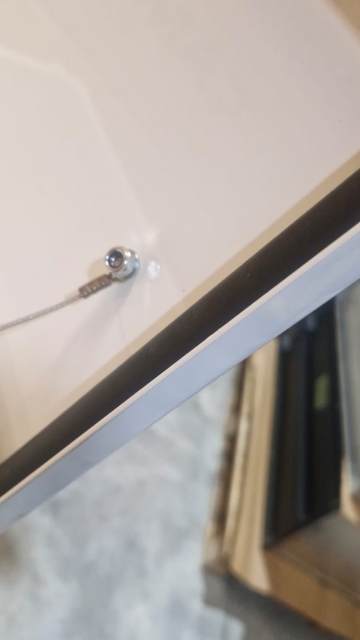

<p>Same as step above.</p>

Same as step above.

15
Step 15 of 17

Fit the hinges to the box as shown using the bolts provided in the hinge packages.

16
Step 16 of 17

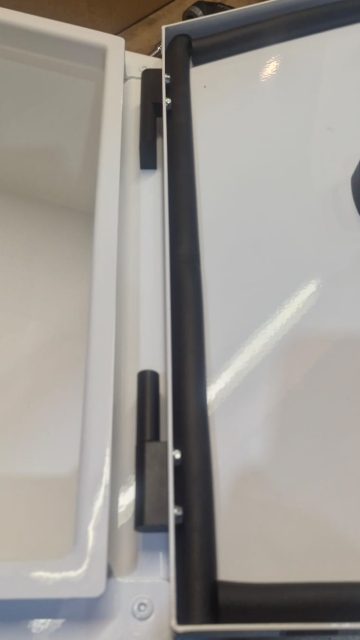

<p>Fit the door to the hinges and tighten both sides.</p>

Fit the door to the hinges and tighten both sides.

17
Step 17 of 17
<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>If you have issues with instructions and need assistance, please contact.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:roman@camcoindustries.co.nz">roman@camcoindustries.co.nz</a></p><p>+64 21 349 001</p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If you have issues with instructions and need assistance, please contact.

roman@camcoindustries.co.nz

+64 21 349 001



If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
