Re-Fit Reversing Sensors: Amarok (2012-2022)
1

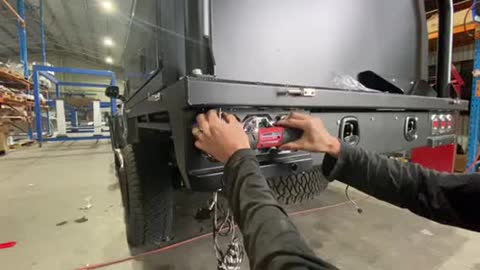

Step 1 of 1210mm to remove 4 x tail light bolts
2
Step 2 of 12Push in, to remove tail light
3
Step 3 of 12Identify Harness (it would have come off the vehicle/tub)
Plug goes to the passenger side
4
Step 4 of 12Disassemble the factory "Rear Bumper", completely remove the sensors and sensors harness.
5
Step 5 of 12Pop in the sensors to the 3D Printed brackets
They should Face in (towards towball)
6
Step 6 of 12Make sure the clear "Sleeve" is sitting nicely. We don't want it folded over or pinched - this will cause issues.
7
Step 7 of 12Plug in the sensor harness Passenger side
8
Step 8 of 12Connect harness to each sensor
9
Step 9 of 12Refit the tail light loosely (we will tighten later)
10
Step 10 of 12With a 2nd person, Test sensors. make sure they are working correctly.
11
Step 11 of 12

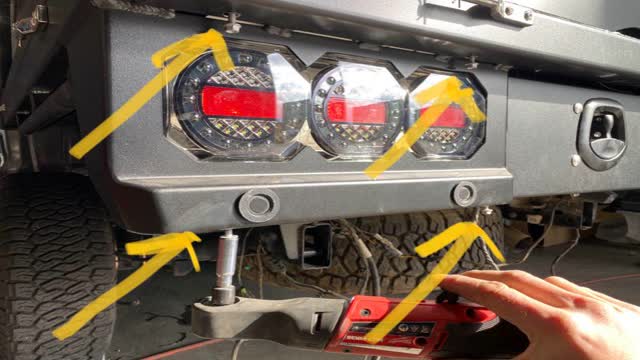

Re-tighten tail light bolts, 10mm
12
Step 12 of 12Zip tie harness NEATLY
Done.
