SLAMLOCK, 400W TOOLBOX

1

Step 1 of 12

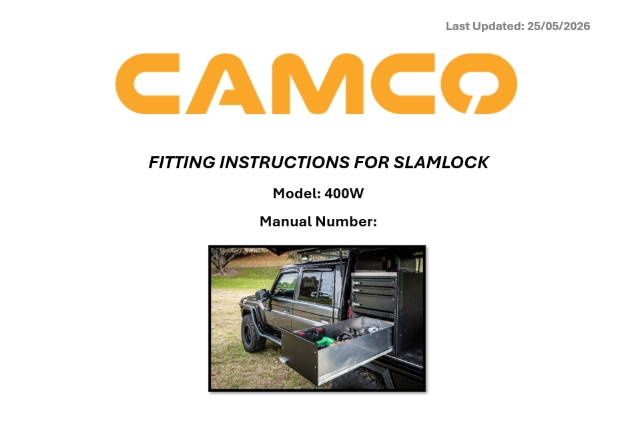

<p></p>

2

Step 2 of 12

Contents (Click to view)

STEP 3: Components List

STEP 5: Tools List

STEP 6: Installing Slamlock

STEP 8: Mounting Slamlock

STEP 12: QA Sheet

3

Step 3 of 12

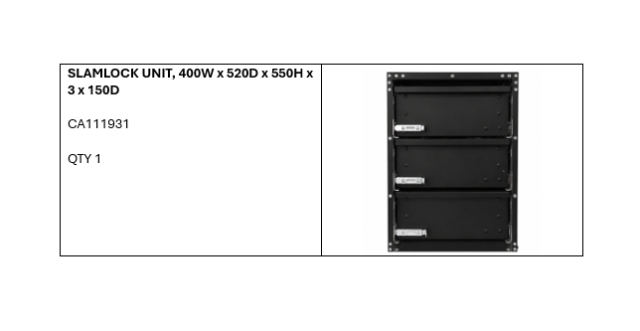

<p>Components</p><p></p>

Components

4

Step 4 of 12

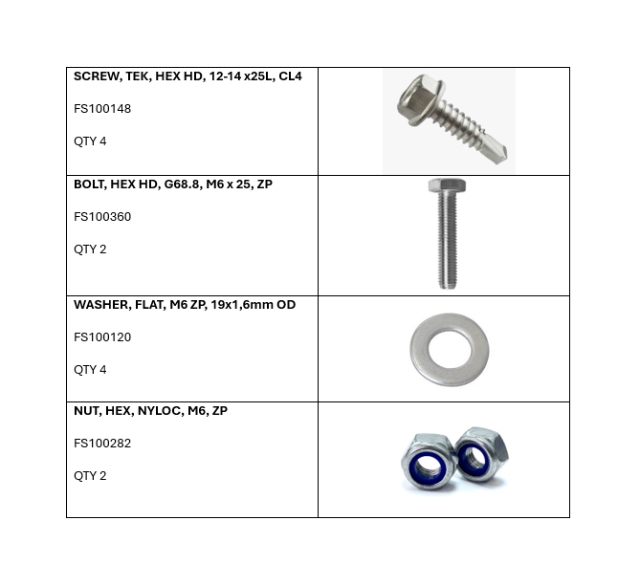

<p>Components</p>

Components

5

Step 5 of 12

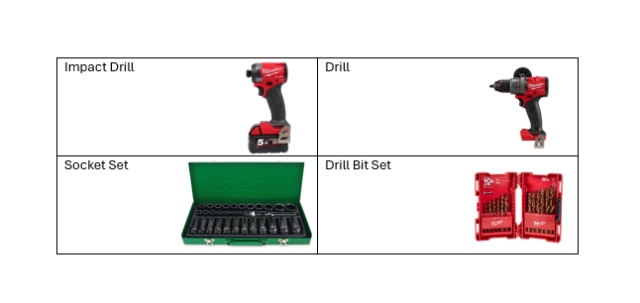

<p>Tools List</p>

Tools List

6

Step 6 of 12

Lift the Slamlock into the box.

Ensure not to damage or scratch the box

7

Step 7 of 12

<p>Get the Slamlock as close as possible to the divider.</p><p>Remove the 3 drawers for fitting.</p>

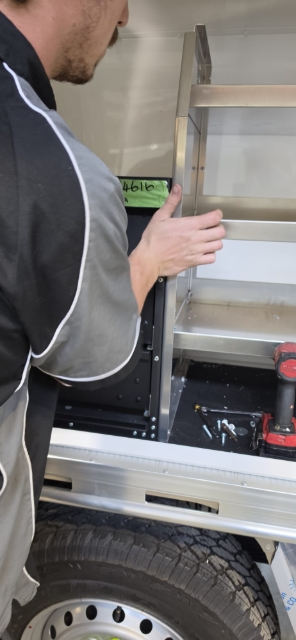

Get the Slamlock as close as possible to the divider.

Remove the 3 drawers for fitting.

8

Step 8 of 12

Drill a pilot hole for the tek screw. Do this in the rear of the side as well.

9

Step 9 of 12

Drill a pilot hole for the tek screw. Do this in the rear of the side as well.

10

Step 10 of 12

Fit with tek screws in the front and back.

11

Step 11 of 12

Fit with tek screws in the front and back.

12

Step 12 of 12

<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p> </p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

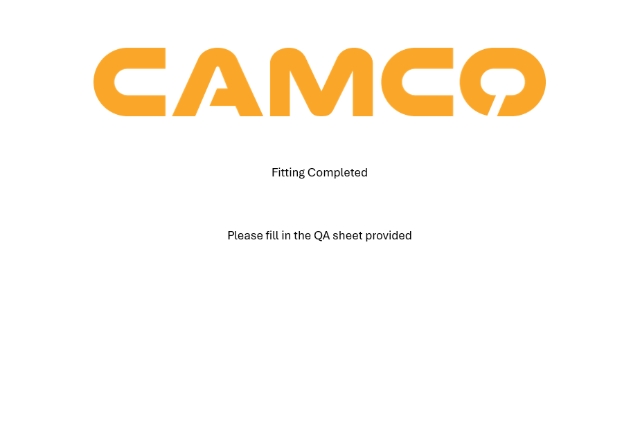

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
