Mounts, Correct Positions: "RG" DMax-BT50, D-Cab
1
Step 1 of 3
<p><strong>Front Mounts</strong></p> <ul> <li>Laser etched with &quot;I&quot;. Mount should be bolted on <strong>backwards</strong>, so the laser etching will actually not be seen.</li> </ul>

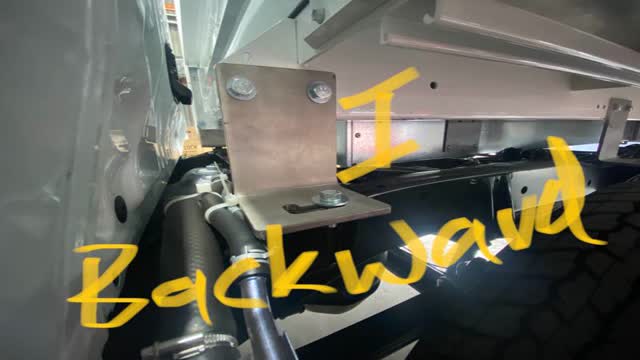

Front Mounts

  • Laser etched with "I". Mount should be bolted on backwards, so the laser etching will actually not be seen.
2
Step 2 of 3
<p><strong>Middle Mounts</strong> 856mm</p> <ul> <li>Laser etched with &quot;I2&quot;. Mount should be bolted on <strong>backwards</strong>, so the laser etching will actually not be seen.</li> </ul>

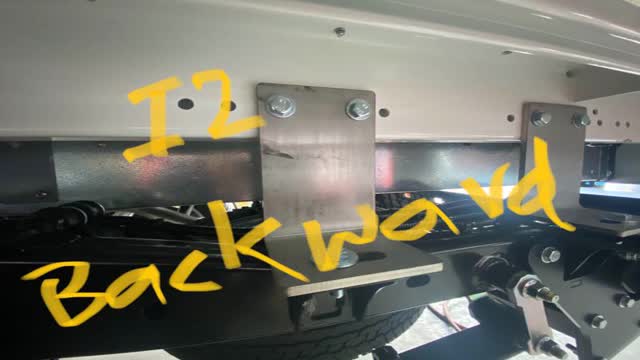

Middle Mounts 856mm

  • Laser etched with "I2". Mount should be bolted on backwards, so the laser etching will actually not be seen.
3
Step 3 of 3
<p><strong>Rear Mounts</strong> 1195mm</p> <ul> <li>Laser etched with &quot;I2&quot;. Mount should be bolted on <strong>backwards</strong>, so the laser etching will actually not be seen.</li> </ul>

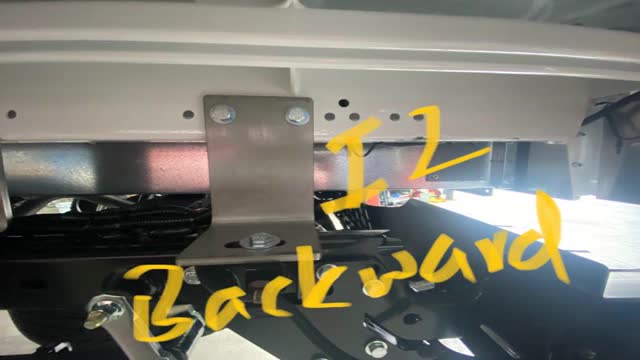

Rear Mounts 1195mm

  • Laser etched with "I2". Mount should be bolted on backwards, so the laser etching will actually not be seen.
