xMounts, Correct Positions: GMC Sierra
1
Step 1 of 5

Mounts are same on both sides

Will look like this when complete

2
Step 2 of 5

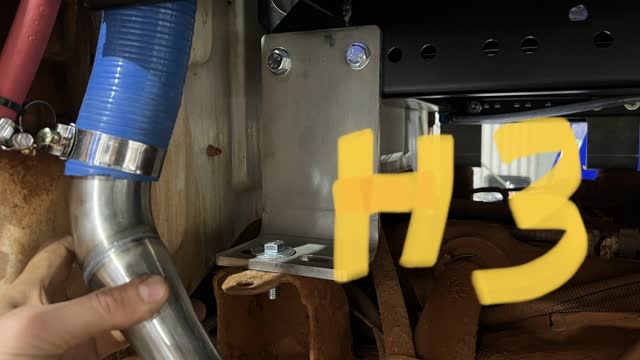

<p>&quot;H3&quot;</p> <p>Front Mount, Both Sides</p> <p>Note the chassis bolt is through the front hole in mount - this is important.</p>

"H3"

Front Mount, Both Sides

Note the chassis bolt is through the front hole in mount - this is important.

3
Step 3 of 5

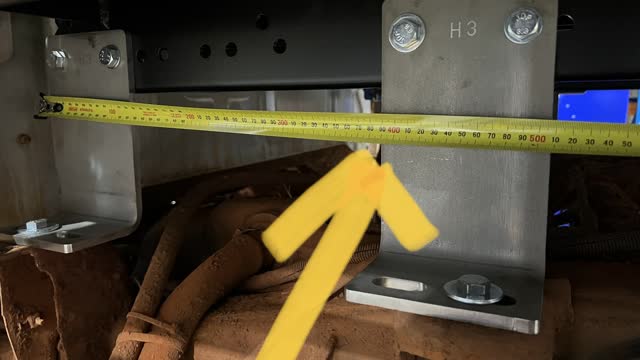

<p>&quot;H3&quot;</p> <p>2nd Mount, Both Sides</p> <p>Will measure 387mm from the front of first mount to the front of second mount</p>

"H3"

2nd Mount, Both Sides

Will measure 387mm from the front of first mount to the front of second mount

4
Step 4 of 5

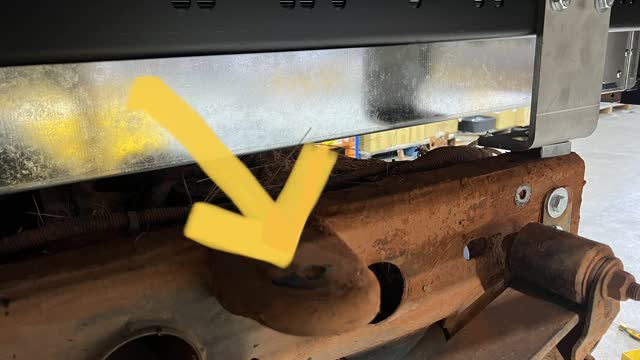

<p>The third vehicle mount is not used</p>

The third vehicle mount is not used

5
Step 5 of 5

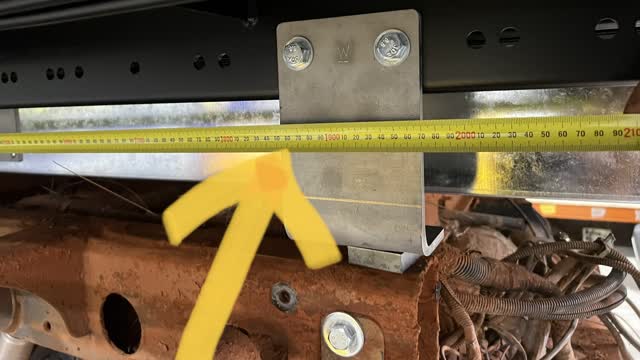

<p>“W” with 16mm packer</p> <p>Will measure 1846mm from front of first mount to front of this mount</p> <p>Back Mount, Both Sides</p>

“W” with 16mm packer

Will measure 1846mm from front of first mount to front of this mount

Back Mount, Both Sides
