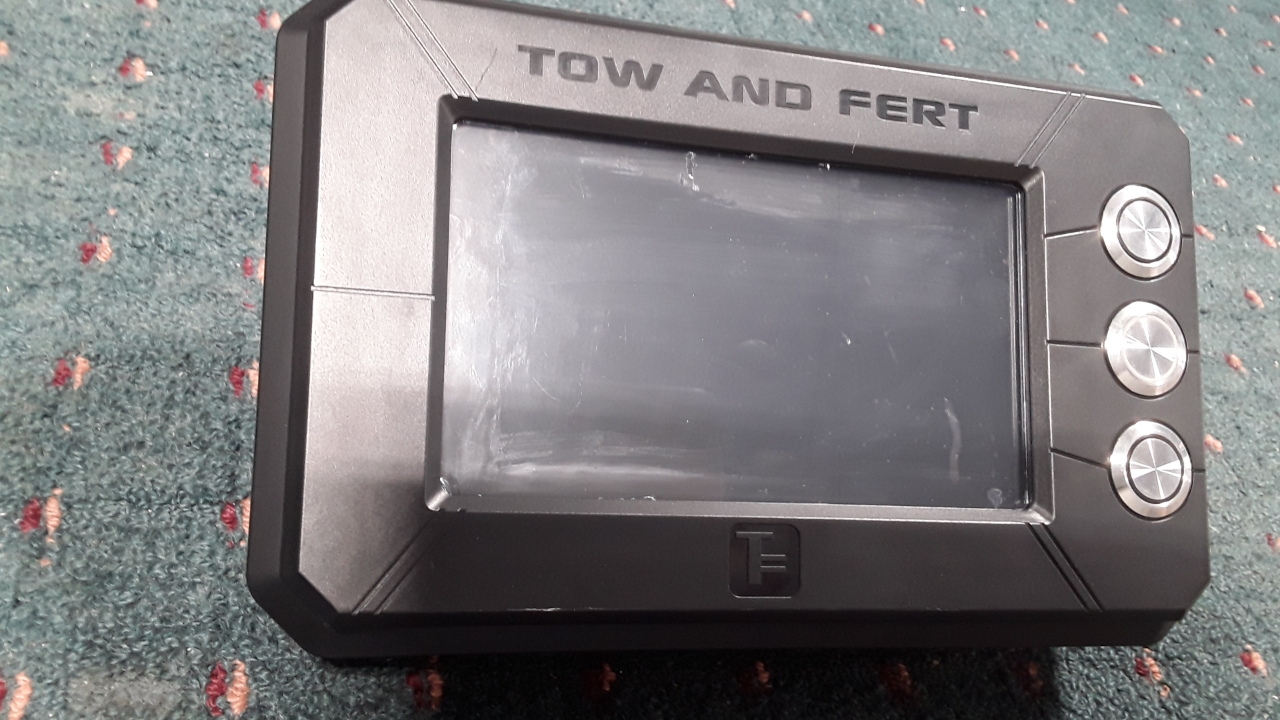

T&F Incab Assembly Process

Step 1 of 12

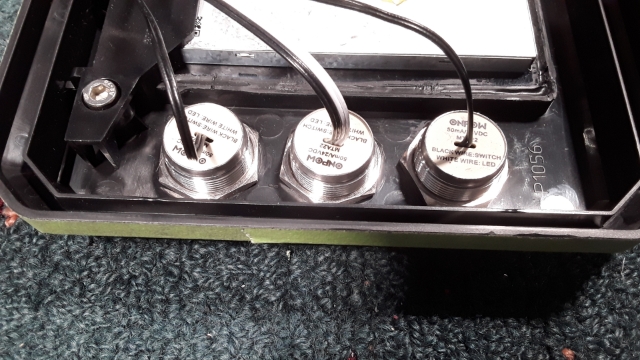

<p>Use two No LEDs and one Blue LED switch.Remove lock nut from LEDs and attach black rubber washer on each switch. Position the Blue-LED switch between the two No LED switch as shown in the photo. Finish by reattaching locknuts and tighten them.</p>

Use two No LEDs and one Blue LED switch.Remove lock nut from LEDs and attach black rubber washer on each switch. Position the Blue-LED switch between the two No LED switch as shown in the photo. Finish by reattaching locknuts and tighten them.

Step 2 of 12

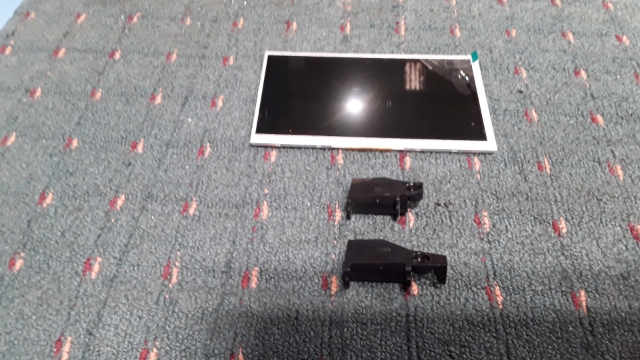

<p>Grab LCD and prepare screen braces1,2 (different sizes). Place red double-sided tape to the braces. Carefully peel off the LCD cover and ensure no fingerprints or dust are left on the screen or glass.</p>

Grab LCD and prepare screen braces1,2 (different sizes). Place red double-sided tape to the braces. Carefully peel off the LCD cover and ensure no fingerprints or dust are left on the screen or glass.

Step 3 of 12

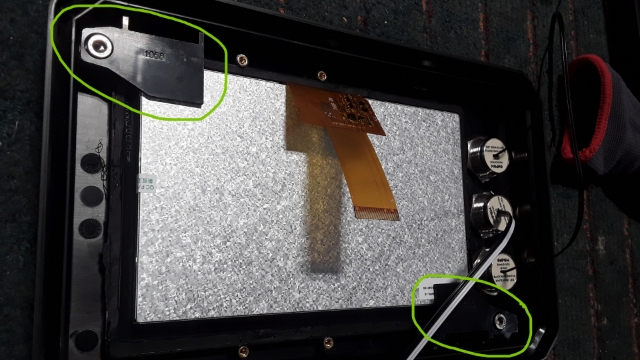

<p>Align the LCD in the correct position on the front case as shown in the photo. Then, remove the backing from prep brace 1 and brace 2, position and secure them in the correct spots (different sizes).Secure them Using M5 x 8 socket cap screws (SS).</p>

Align the LCD in the correct position on the front case as shown in the photo. Then, remove the backing from prep brace 1 and brace 2, position and secure them in the correct spots (different sizes).Secure them Using M5 x 8 socket cap screws (SS).

Step 4 of 12

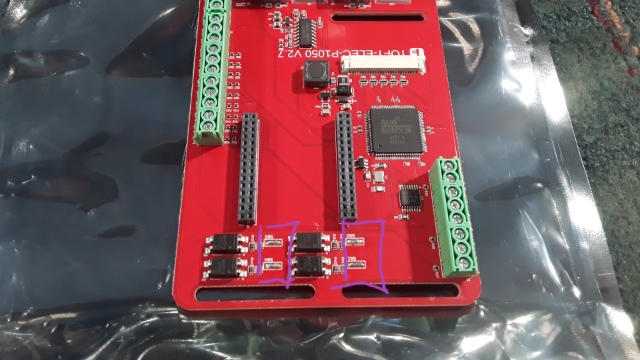

Please ensure that the PCB TOFT-ELEC-P1050 V.. for Incab has had its components soldered before use.

Step 5 of 12

Install 4 brass standoffs in the designated locations.

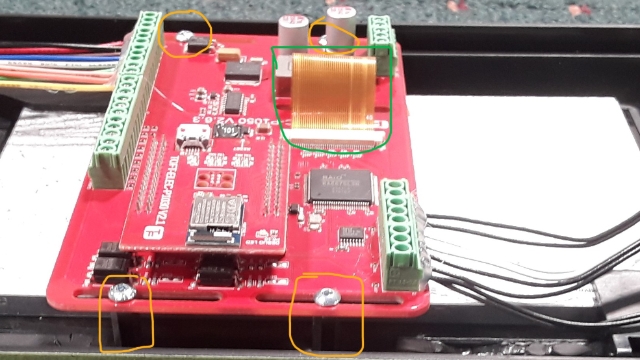

Mount the PCB PCB TOFT-ELEC-P1050 for Incab onto the standoffs and connect the yellow display (highlighted in green).

Secure PCB with 4 M3 x 6 socket button screws (SS). Apply thread locker to screws and tighten them securely.

Step 6 of 12

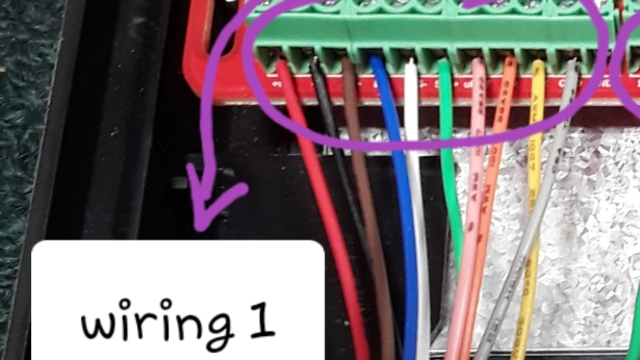

<p>Get one internal connector cable and select these colours: Wiring 1: Red (use the red label with yellow heat shrink end), Black, Brown, Blue, White, Green, Pink, Orange, Yellow, and Grey. For Purple and Red, bend and secure with tape. If it needed, adjust the length to 14 cm (included the Body)</p>

Get one internal connector cable and select these colours: Wiring 1: Red (use the red label with yellow heat shrink end), Black, Brown, Blue, White, Green, Pink, Orange, Yellow, and Grey. For Purple and Red, bend and secure with tape. If it needed, adjust the length to 14 cm (included the Body)

Step 7 of 12

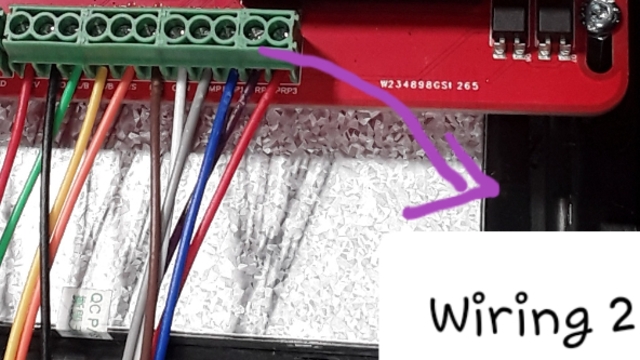

<p>Get one internal connector cable and select these colours: Wiring 2: Red (use the red label with yellow heat shrink end), Black, Green, Yellow, Orange, Brown, White, Grey, Blue, Purple, Red (Black heat shrink end).For other colors bend and secure with tape. If it needed, adjust the length to 14 cm (included the Body)</p>

Get one internal connector cable and select these colours: Wiring 2: Red (use the red label with yellow heat shrink end), Black, Green, Yellow, Orange, Brown, White, Grey, Blue, Purple, Red (Black heat shrink end).For other colors bend and secure with tape. If it needed, adjust the length to 14 cm (included the Body)

Step 8 of 12

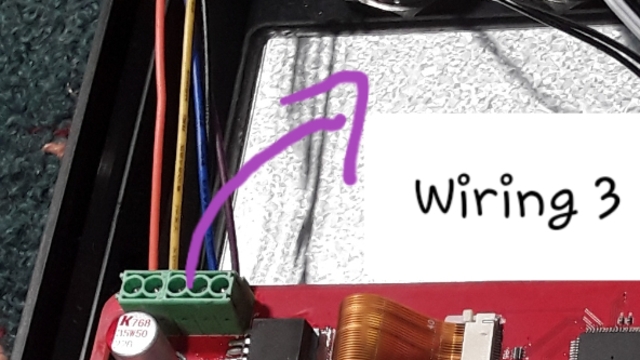

<p>Get one internal connector cable and select these colours: Wiring 3: Purple, Blue, Black, Yellow, Orange. For others colours bend and secure with tape.</p>

Get one internal connector cable and select these colours: Wiring 3: Purple, Blue, Black, Yellow, Orange. For others colours bend and secure with tape.

Step 9 of 12

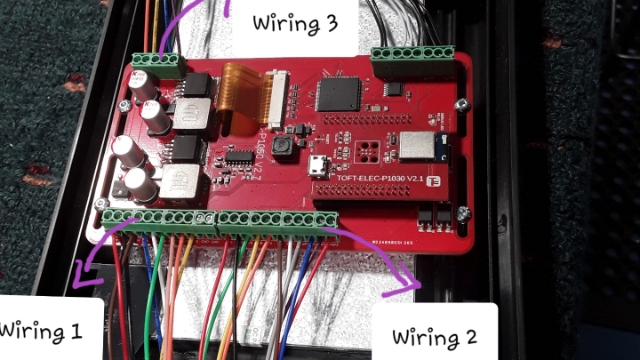

<p>Wire them to the board connector, following the colour scheme shown in the photo. (Please double- or triple-check the connections, as errors may affect the monitor's functionality).</p>

Wire them to the board connector, following the colour scheme shown in the photo. (Please double- or triple-check the connections, as errors may affect the monitor's functionality).

Step 10 of 12

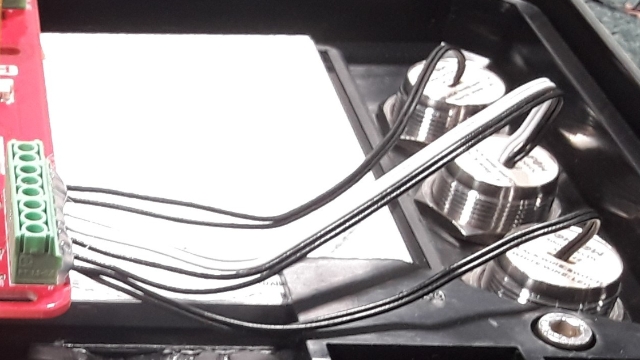

<p>If needed, adjust the length of each LED switch to 11cm aproximate and connect them according to the colour scheme in the photo( black, black, black, black, white, white, black and black).Please double- or triple-check the connections, as errors may affect functionality.</p>

If needed, adjust the length of each LED switch to 11cm aproximate and connect them according to the colour scheme in the photo( black, black, black, black, white, white, black and black).Please double- or triple-check the connections, as errors may affect functionality.

Step 11 of 12

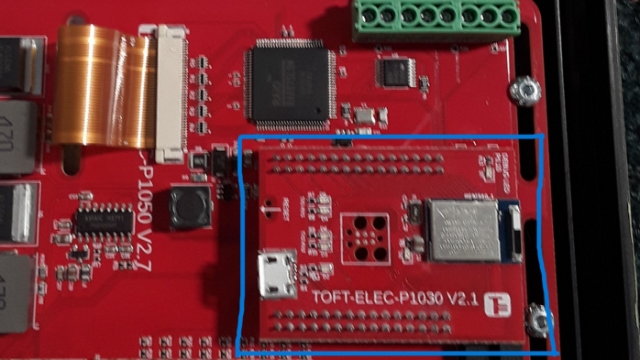

Assemble the TF Microcontroller, ensuring it has been flashed with the latest sofware beforehand.

Step 12 of 12

Ensure everything is in place and correctly connected. Use hot glue to prevent any loose wires. Once secured, power on the system to verify all components are functioning properly before glue (Q.A).

it’s time for a bit of magic—glue time! Just don’t get it stuck in your hair!
