Ranger Replacement Loom Swap over
Replacement of existing ranger looms with utetech blindspot tail light adapter and sequential rectifier Any issues please call Josh McIntyre 0273518781
Replacement of existing ranger looms with utetech blindspot tail light adapter and sequential rectifier Any issues please call Josh McIntyre 0273518781
1
Step 1 of 8
<p>Each bag contains </p><ul><li><p>6-pin Deutsche connectors to replace existing tail light connector </p></li><li><p>Blindspot tail light adapter </p></li><li><p>Sequential rectifier</p></li></ul><p></p>

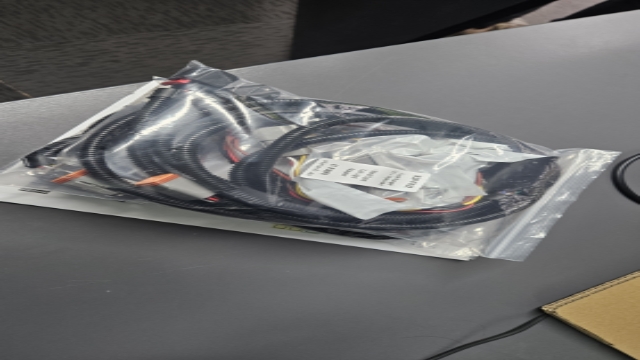

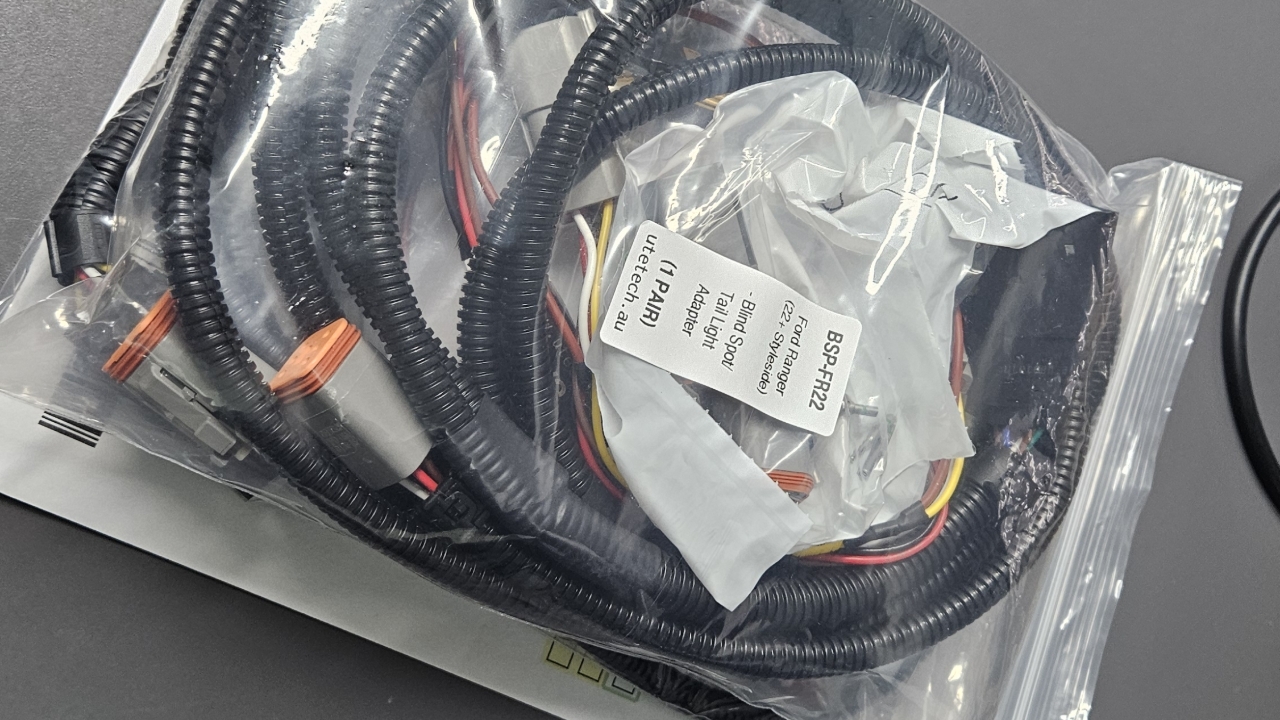

Each bag contains

  • 6-pin Deutsche connectors to replace existing tail light connector

  • Blindspot tail light adapter

  • Sequential rectifier

2
Step 2 of 8

Remove existing blind spot tail light patch looms from vehicle

3
Step 3 of 8

Snip off vehicle existing tail light connectors from LED cluster

4
Step 4 of 8

Repin taillight connector following provided pinout

5
Step 5 of 8

Note left connector to go onto passenger side

Plug into vehicle

6
Step 6 of 8

Connect to blind spot sensor (This may require removal of the sensor brackets)

7
Step 7 of 8

Secure load resistor and rectifier in place

8
Step 8 of 8

Connect to tail light

Test and verify operation

The alternative is to use Forscan to turn off bulb outage alert
