Air Compressor Troubleshooting
1
Step 1 of 6

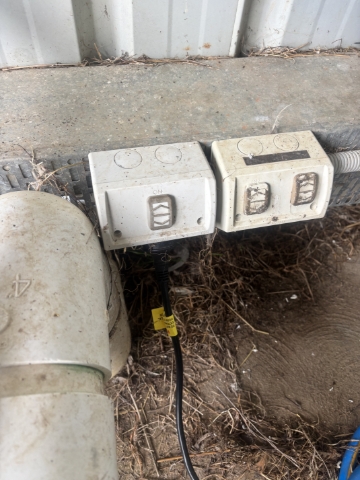

<p>If there is no air to gate at cups on, the teat sprayer or the floodwash tank then there is a issue .</p><p>First make sure the air compressor is plugged in and turned on.</p>

If there is no air to gate at cups on, the teat sprayer or the floodwash tank then there is a issue .

First make sure the air compressor is plugged in and turned on.

2
Step 2 of 6

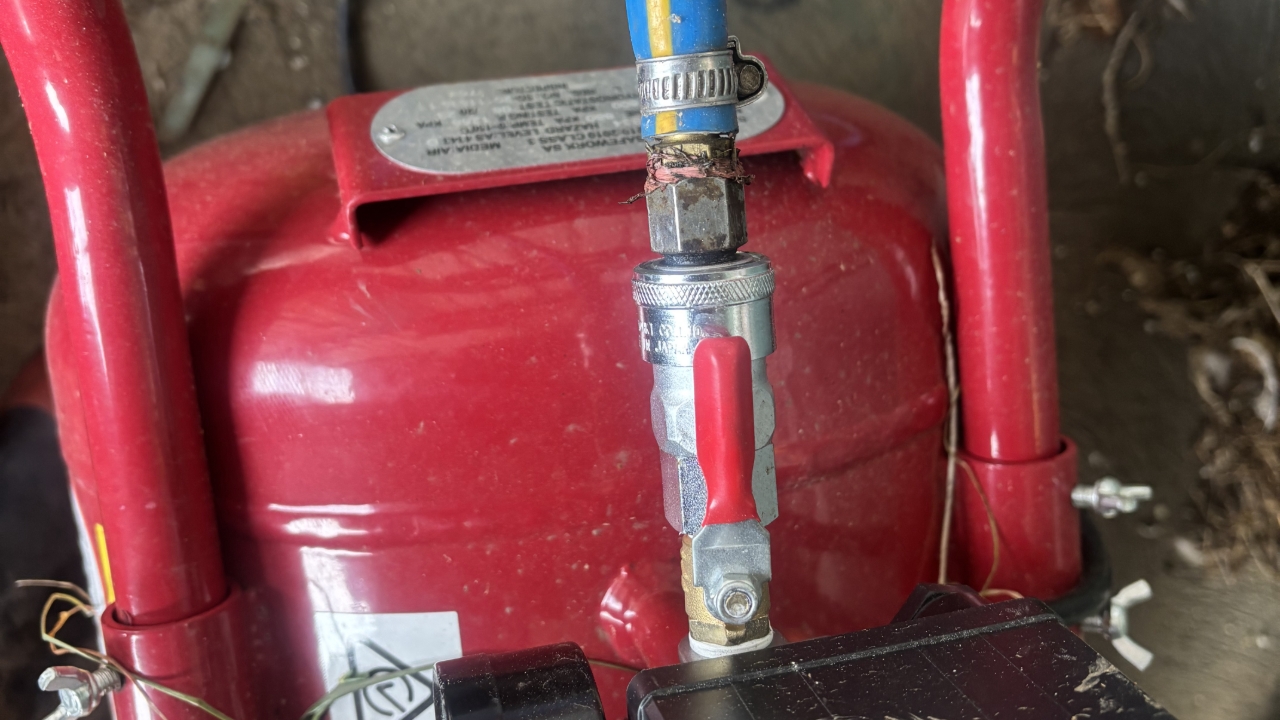

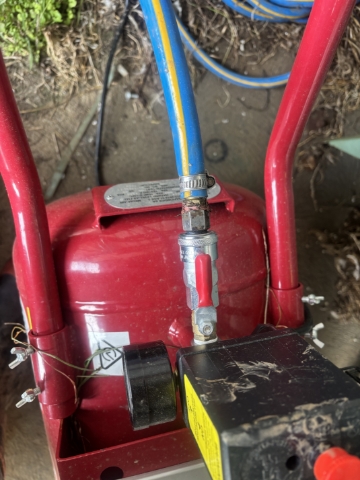

<p>make sure the blue hose is connected to the silver fitting and the tap is turned on. The red tab should be pointing towards the hose.</p>

make sure the blue hose is connected to the silver fitting and the tap is turned on. The red tab should be pointing towards the hose.

3
Step 3 of 6

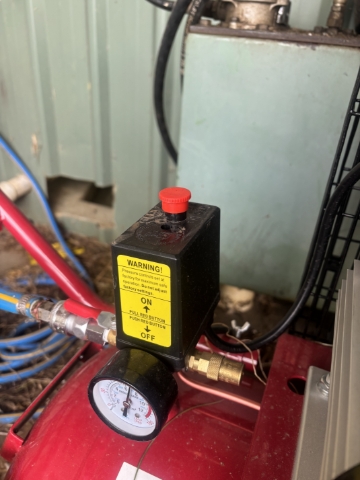

<p>There are two reset switches.</p><p>this is the first one, if the red button is up then its fine.</p>

There are two reset switches.

this is the first one, if the red button is up then its fine.

4
Step 4 of 6

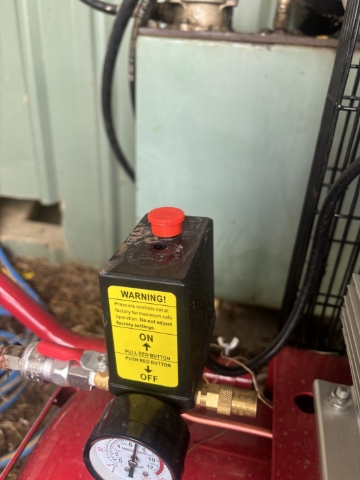

<p>if the button is down like this then its been tripped, pull it up to turn it back on.</p>

if the button is down like this then its been tripped, pull it up to turn it back on.

5
Step 5 of 6

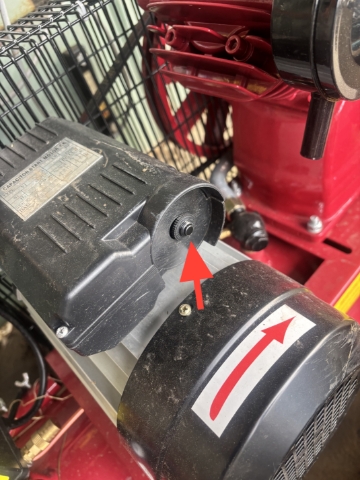

<p>This is also a reset button, this button doesn't move in or out if there is a issue you just have to press it to check.</p>

This is also a reset button, this button doesn't move in or out if there is a issue you just have to press it to check.

6
Step 6 of 6

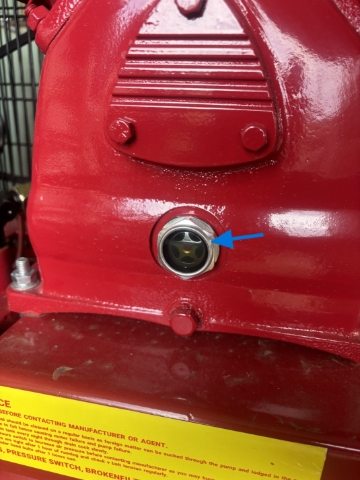

<p>Make sure the compressor has oil. This is the sight glass on the side of it. the level should always be around this.</p>

Make sure the compressor has oil. This is the sight glass on the side of it. the level should always be around this.
