Mounts Layout, DMax-BT50, Single Cab "RG"

Knowby

Mounts Layout, DMax-BT50, Single Cab "RG"

1

Step 1 of 5

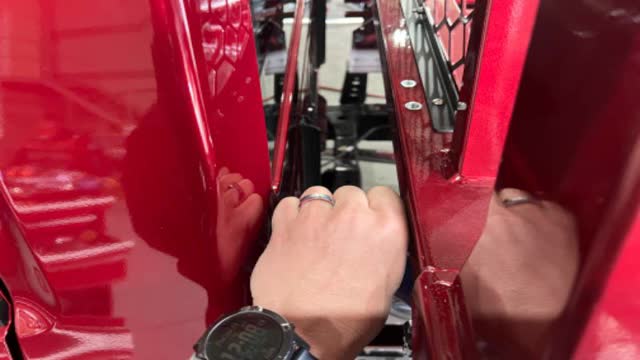

<p>Spacer between cabin and Tray</p>

Spacer between cabin and Tray

2

Step 2 of 5

<p><strong>Front Mounts</strong></p>
<ul>
<li>Laser Etched with "J3"</li>
<li>In Front Holes</li>
</ul>

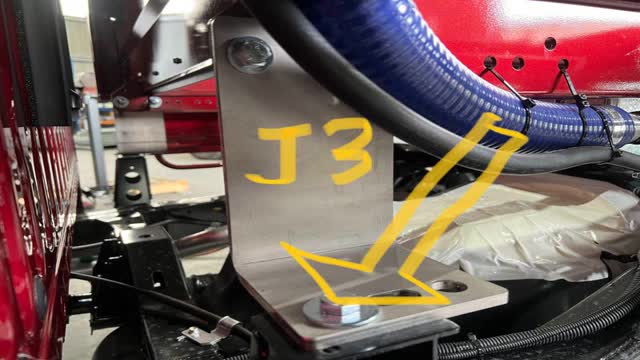

Front Mounts

Laser Etched with "J3"
In Front Holes

3

Step 3 of 5

<p><strong>2nd Mounts</strong></p>
<ul>
<li>Laser Etched with "J3"</li>
<li>From front of 1st mount to front of 2nd mount is 386mm</li>
</ul>

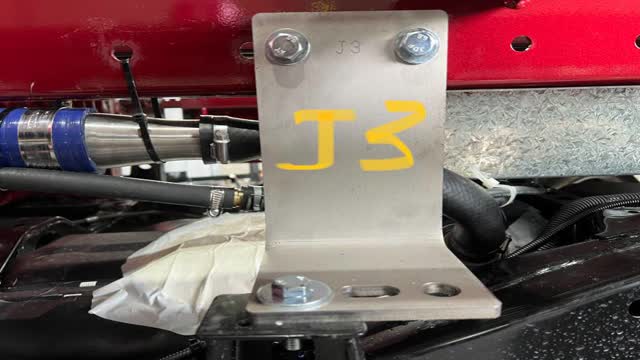

2nd Mounts

Laser Etched with "J3"
From front of 1st mount to front of 2nd mount is 386mm

4

Step 4 of 5

<p><strong>3rd mount</strong></p>
<ul>
<li>Laser Etched with "I2" <strong>However, it is BACKWARDS</strong></li>
<li>From front of 1st mount to front of 3rd mount is 1580mm</li>
</ul>

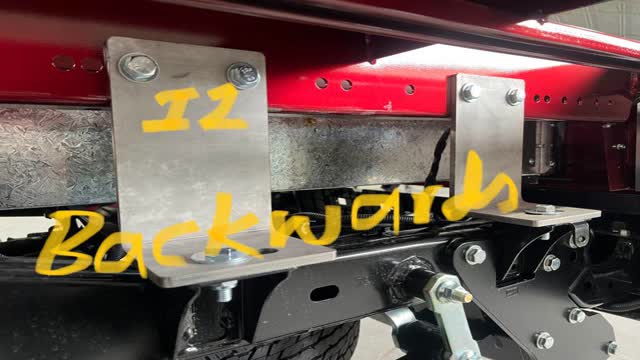

3rd mount

Laser Etched with "I2" However, it is BACKWARDS
From front of 1st mount to front of 3rd mount is 1580mm

5

Step 5 of 5

<p><strong>4th Mount</strong></p>
<ul>
<li>Laser Etched with "I2" <strong>However, it is BACKWARDS</strong></li>
<li>From front of 1st mount to front of 4th mount is 1930mm</li>
</ul>

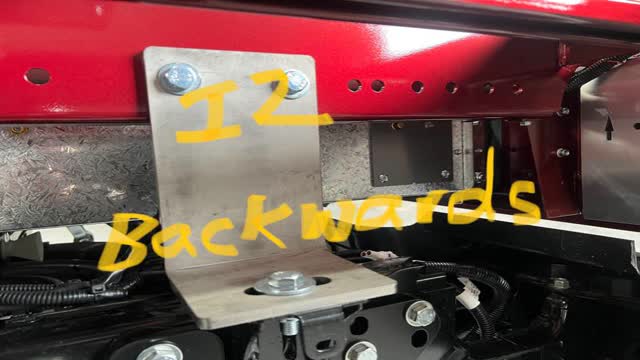

4th Mount

Laser Etched with "I2" However, it is BACKWARDS
From front of 1st mount to front of 4th mount is 1930mm
