VAN, FIRE EXSTINGUISHER
1
Step 1 of 14
2
Step 2 of 14

Contents (Click to view)

​STEP 3: Component List​

​STEP 7: Tools List​

​STEP 8: Fire Extinguisher Fitting​

​STEP 14: QA Sheet​

3
Step 3 of 14

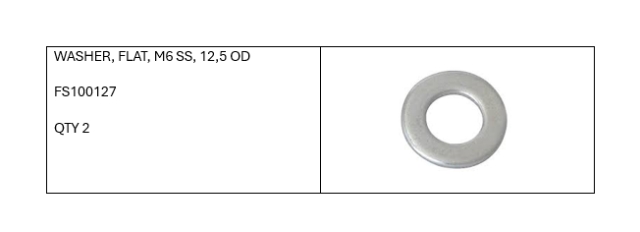

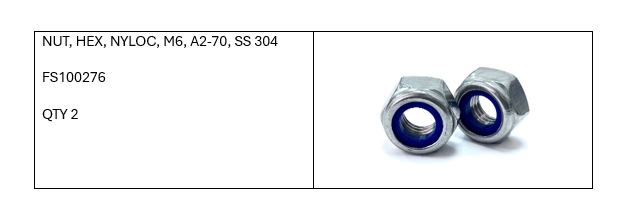

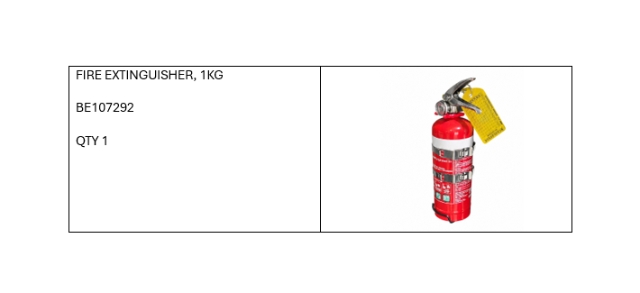

<p>Components List</p>

Components List

4
Step 4 of 14

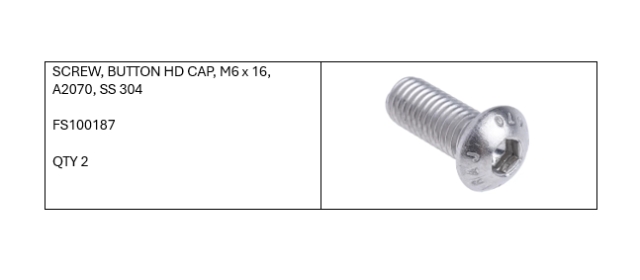

<p>Components List</p>

Components List

5
Step 5 of 14
<p>Components List</p>

Components List

6
Step 6 of 14
<p>Components List</p>

Components List

7
Step 7 of 14

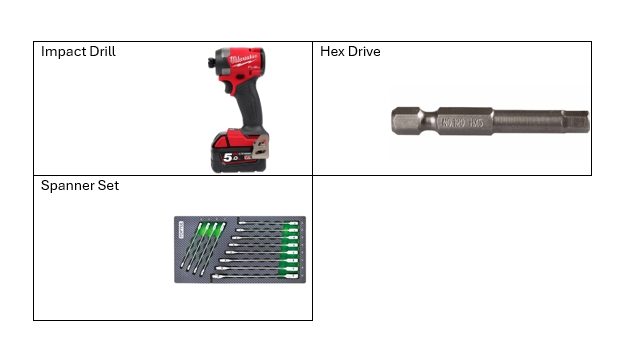

<p>Tools List</p><p></p>

Tools List

8
Step 8 of 14

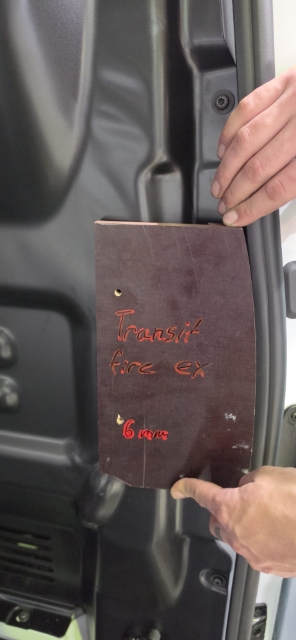

<p>Use the jig to drill the holes into the transit wall. Ensure to check behind that there is nothing to hit.</p>

Use the jig to drill the holes into the transit wall. Ensure to check behind that there is nothing to hit.

9
Step 9 of 14

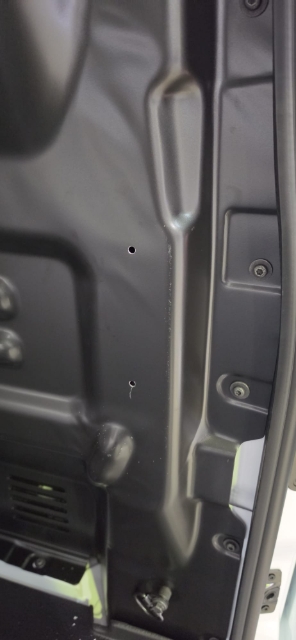

<p>Holes Drilled.</p>

Holes Drilled.

10
Step 10 of 14

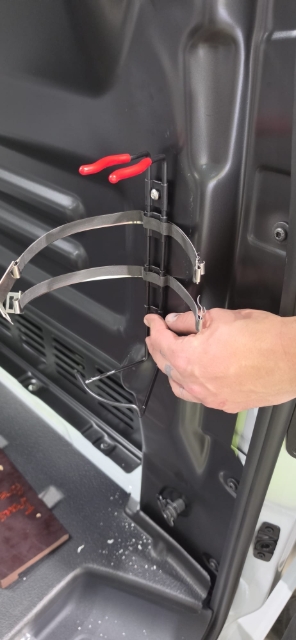

<p>Fit the fire extinguisher mount to the wall using M6x16 Button head bolts.</p>

Fit the fire extinguisher mount to the wall using M6x16 Button head bolts.

11
Step 11 of 14

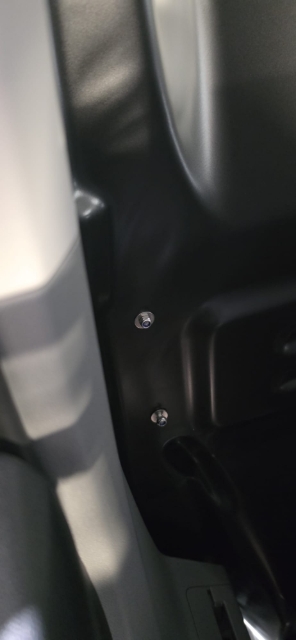

<p>Fit the washers and nuts on the other side.</p>

Fit the washers and nuts on the other side.

12
Step 12 of 14

Tighten the mount to the wall.

13
Step 13 of 14

Fit the fire extinguisher back into the mount.

14
Step 14 of 14
<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>If you have issues with instructions and need assistance, please contact.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:roman@camcoindustries.co.nz">roman@camcoindustries.co.nz</a></p><p>+64 21 349 001</p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

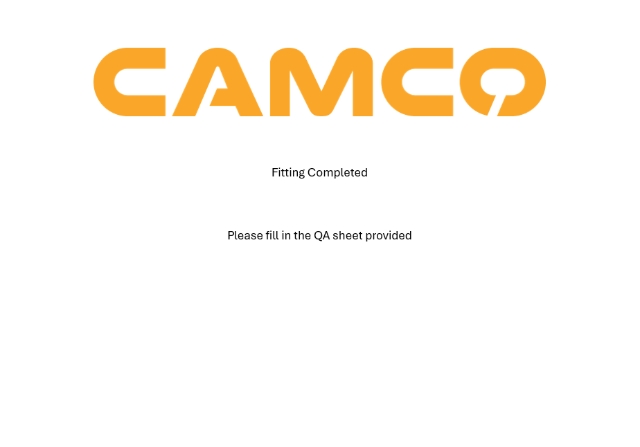

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If you have issues with instructions and need assistance, please contact.

roman@camcoindustries.co.nz

+64 21 349 001



If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
