How to fix broken string
1
Step 1 of 11

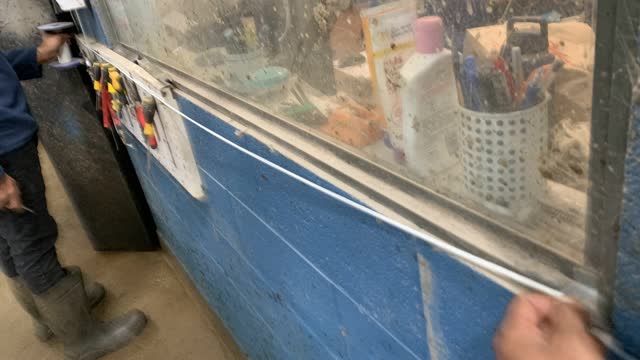

<p>Measure string length from end to another end of window in the office. Use doc tape as a measurement reference.</p>

Measure string length from end to another end of window in the office. Use doc tape as a measurement reference.

2
Step 2 of 11
<p>Burn both ends of the string.</p>

Burn both ends of the string.

3
Step 3 of 11

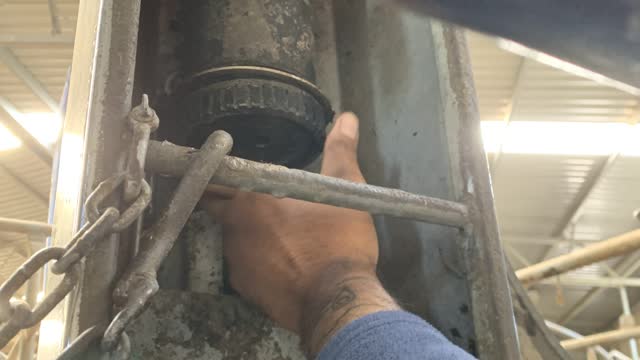

<p>Get the ram out and pull the broken string out.</p>

Get the ram out and pull the broken string out.

4
Step 4 of 11

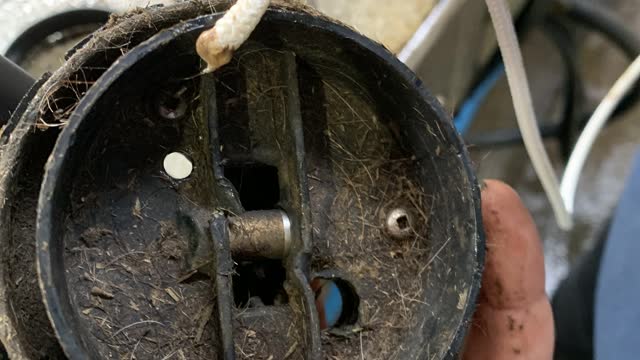

<p>Insert the string from the smaller hole.</p>

Insert the string from the smaller hole.

5
Step 5 of 11

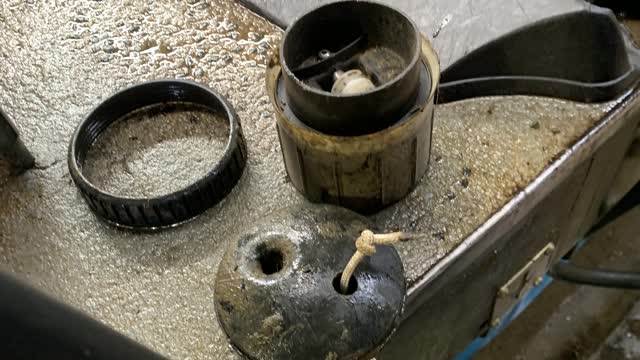

<p>Tie a knot.</p>

Tie a knot.

6
Step 6 of 11

Insert the string inside the ram and get the string out to the bigger hole of the ram cover.

7
Step 7 of 11

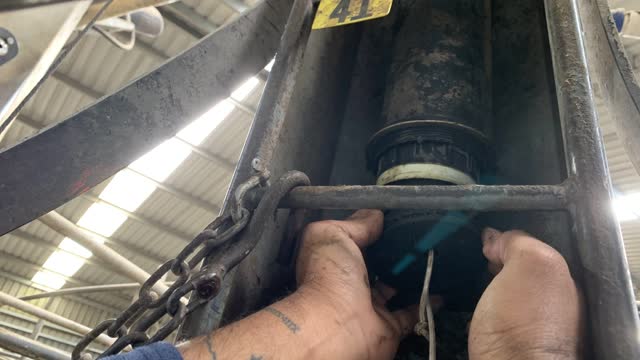

<p>Insert the ram in the ram holder, keeping the shorter end of the string facing front without crossing the string.</p>

Insert the ram in the ram holder, keeping the shorter end of the string facing front without crossing the string.

8
Step 8 of 11

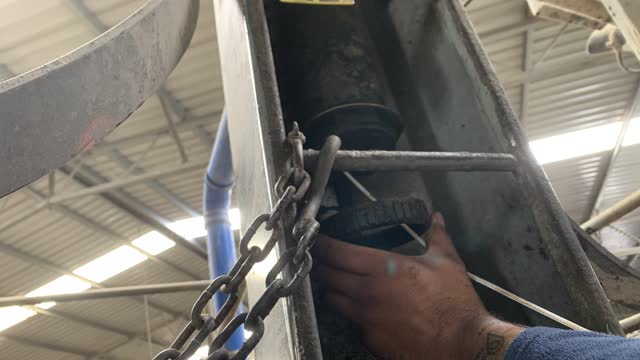

<p>Put back the last piece of the ram holder.</p>

Put back the last piece of the ram holder.

9
Step 9 of 11

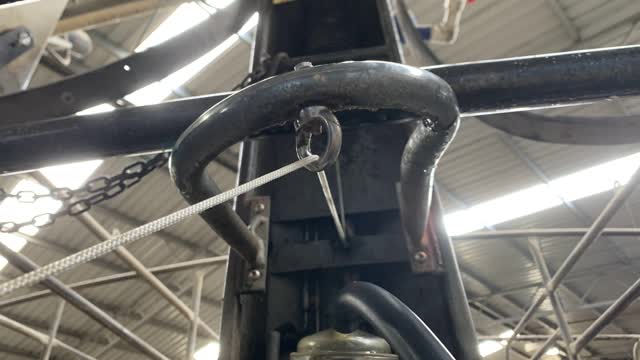

<p>Insert the string through the string holder at the back to the front.</p>

Insert the string through the string holder at the back to the front.

10
Step 10 of 11

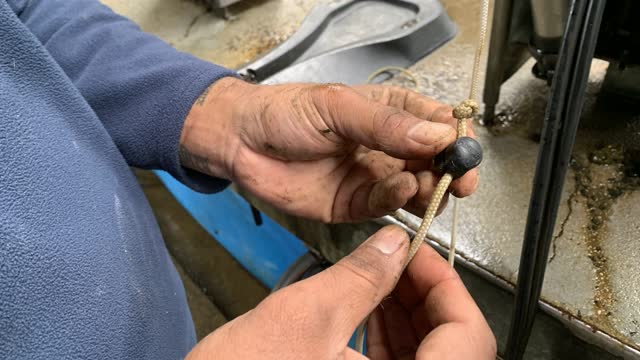

<p>Insert the string through the clip and tie a knot at the end of the string.</p>

Insert the string through the clip and tie a knot at the end of the string.

11
Step 11 of 11

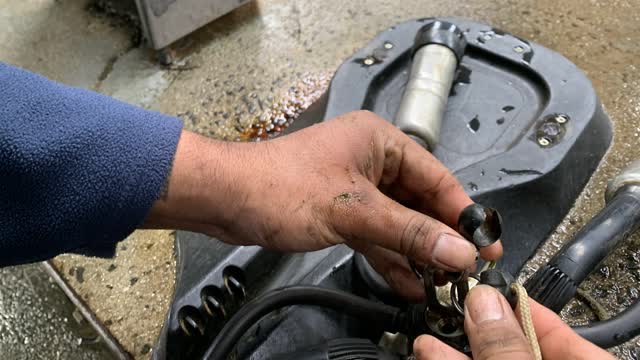

<p>Put the clip together and your broken string is fixed.</p>

Put the clip together and your broken string is fixed.
