xRobot Lincoln, Start-Up Procedure

1

Step 1 of 9

<p>Follow the instructions for the correct startup procedure</p>

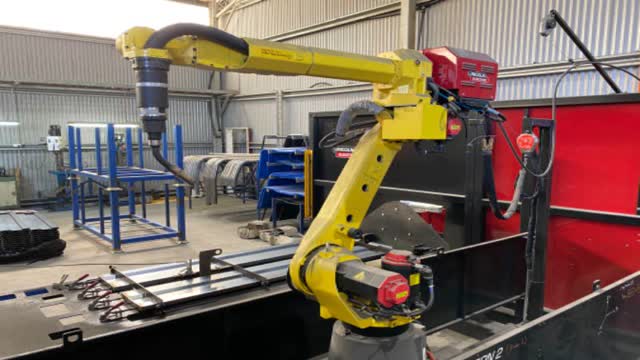

<p>Name: 2018 Lincoln Electric Welding Robot A
Asset ID: 5451
Location: 15 Whyalla</p>

Follow the instructions for the correct startup procedure

Name: 2018 Lincoln Electric Welding Robot A Asset ID: 5451 Location: 15 Whyalla

2

Step 2 of 9

Turn on the main power switch of the controller

3

Step 3 of 9

Press the "CNTRL PWR" button, it will light up

4

Step 4 of 9

Switch Welder power source to "ON

5

Step 5 of 9

Open the air valve

Note: The air compressor must be on and the system loaded with more than 90 PSI

6

Step 6 of 9

Turn on, to power the water cooler

7

Step 7 of 9

Open gas bottle

8

Step 8 of 9

Startup is complete

9

Step 9 of 9

Advice for the future: There is a QR code on the front of the robot controller. Using a smartphone, open your camera and it will automatically scan the QR code. These instructions will open automatically
