Replace the MFC150 camera in your [Leica DMC-4](https://leica-geosystems.com/products/airborne-systems/imaging-sensors/dmc-4) with ease. This knowby guides you step-by-step through the process, ensuring your imaging sensor maintains peak performance for all photogrammetry and remote sensing applications.
Replace the MFC150 camera in your [Leica DMC-4](https://leica-geosystems.com/products/airborne-systems/imaging-sensors/dmc-4) with ease. This knowby guides you step-by-step through the process, ensuring your imaging sensor maintains peak performance for all photogrammetry and remote sensing applications.
1
Step 1 of 26

⚠️ NOTE: For full description, refer to Service Manual CNM. Make sure that you read the Service Manual before Disassembly/Reassembly of ContentMapper.

2
Step 2 of 26

⚠️ IMPORTANT: Any actions must be carried out by a trained Leica Geosystems Service Engineer.

3
Step 3 of 26

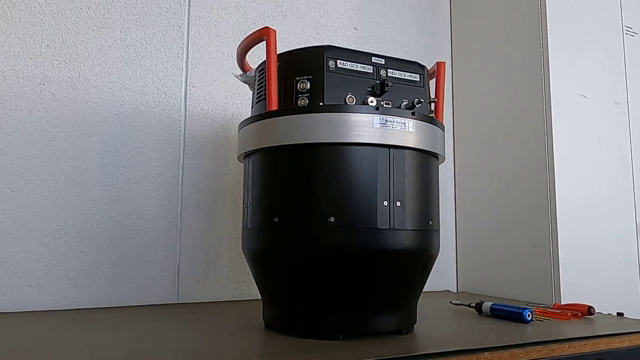

<h4>PREPARE POD</h4>

PREPARE POD

4
Step 4 of 26
  • Allen key No. 3
  • Remove distance ring 50mm
5
Step 5 of 26
  • Torx screwdriver T10
  • Remove all 4x Side panels
6
Step 6 of 26

Remove 4x screws of 50mm ring

7
Step 7 of 26

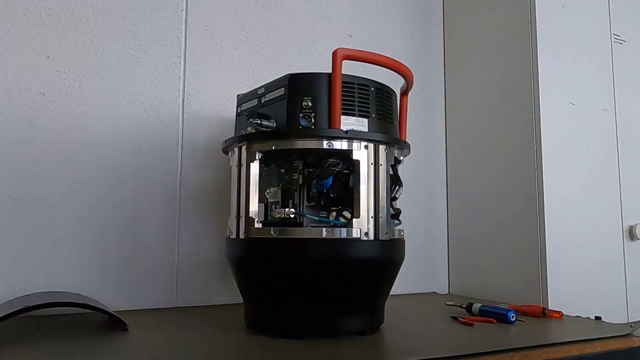

<h4>DISCONNECT CABLES</h4>

DISCONNECT CABLES

8
Step 8 of 26
  • Side cutter
  • Remove cable ties
9
Step 9 of 26

Disconnect shutter cable(s)

10
Step 10 of 26

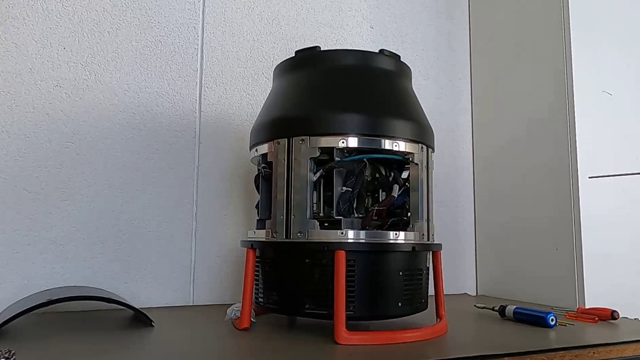

<p>Turn pod upside down</p>

Turn pod upside down

11
Step 11 of 26
  • Allen screwdriver no. 3
  • Remove 5x feet
12
Step 12 of 26

Remove bottom cover

13
Step 13 of 26
  • Side cutter
  • Remove cable tie
14
Step 14 of 26

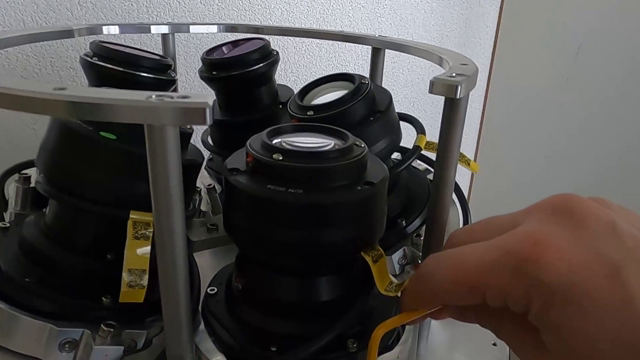

<h4>REMOVE MFC150 CAMERA HEAD(S)</h4>

REMOVE MFC150 CAMERA HEAD(S)

15
Step 15 of 26

Note: For RGB Camera Heads: RGB_N/ RGB_L/ RGB_R shims are used to adjust the image overlap for the Virtual Frame.

  • Make sure shims of each camera are not mixed up and always kept together with each MFC150 Camera head.
  • For NIR Camera Heads no shims are needed: NIR_L/ NIR_R
  • For full description, refer to "Service Manual CNM".
16
Step 16 of 26

RGB CH'S: Brackets & Shims are marked with dots

17
Step 17 of 26
  • Allen key no. 4
  • Untighten 3x screws for each MFC Camera Head
18
Step 18 of 26

Disconnect 3x connectors of MFC cable harness

19
Step 19 of 26

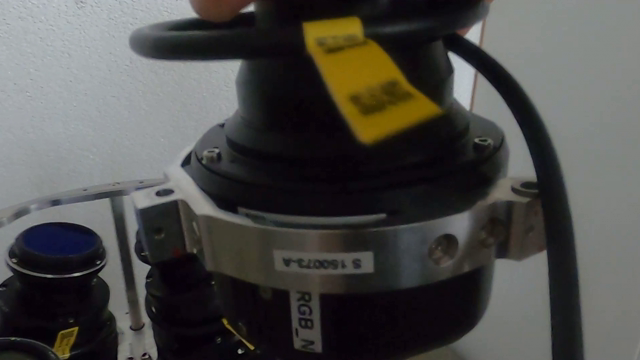

<h4>INSTALL (NEW) MFC150 CAMERA HEAD(S)</h4>

INSTALL (NEW) MFC150 CAMERA HEAD(S)

20
Step 20 of 26

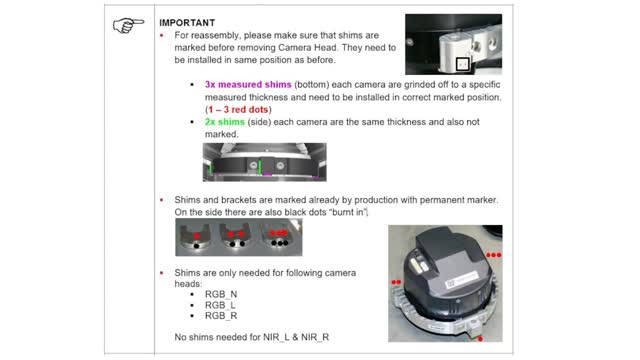

<p><strong>Reassembly MFC150 Camera Head</strong> Shim &amp; Bracket placement – For full description, refer to <a href="https://eu1.hubs.ly/H0btpHp0">Service Manual CNM</a>.</p>

Reassembly MFC150 Camera Head Shim & Bracket placement – For full description, refer to Service Manual CNM.

21
Step 21 of 26

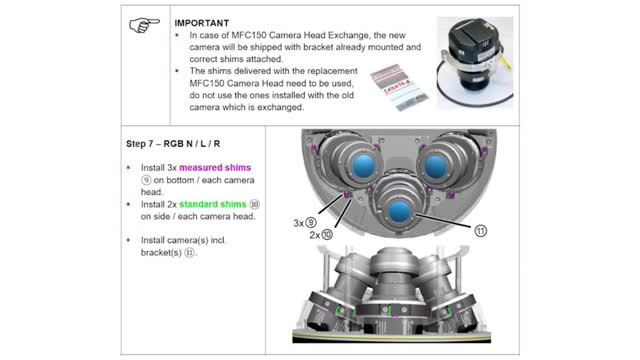

<p>6.6.7.2 Install - CH150 Camera Head(s)</p>

6.6.7.2 Install - CH150 Camera Head(s)

22
Step 22 of 26

Reconnect 3x connectors of MFC cable harness

23
Step 23 of 26

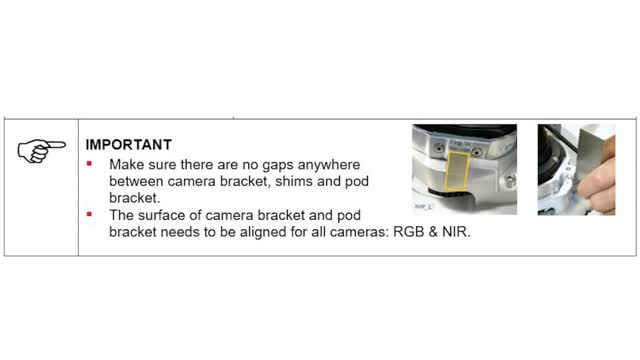

<p><strong>Reassembly MFC150 Camera Head</strong> Tigthen up screws – For full description, refer to <a href="https://eu1.hubs.ly/H0btpHp0">Service Manual CNM</a>.</p>

Reassembly MFC150 Camera Head Tigthen up screws – For full description, refer to Service Manual CNM.

24
Step 24 of 26

Tighten up screws with torque screwdriver 5.1 Nm

25
Step 25 of 26

COMPLETE POD - CHECK IMAGE OVERLAP

26
Step 26 of 26

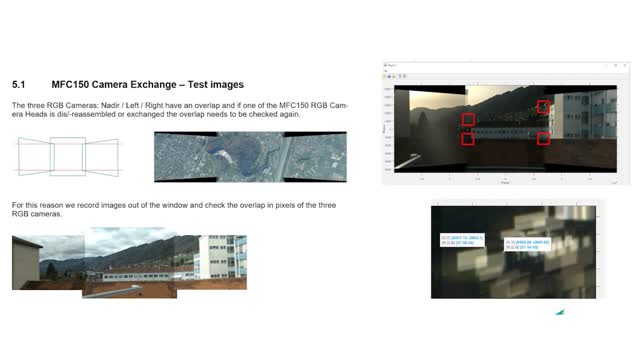

<p><strong>Check Image overlap MFC150 RGB Camera Heads</strong> For full description, refer to <a href="https://eu1.hubs.ly/H0btpHp0">Service Manual CNM</a>.</p>

Check Image overlap MFC150 RGB Camera Heads For full description, refer to Service Manual CNM.
