Start Up The Robot Welder

How to start up the robot welder

How to start up the robot welder

1

Step 1 of 13

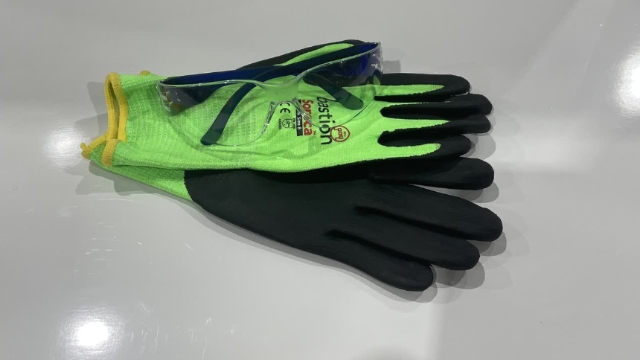

<p>Personal Protective Equipment (PPE). Gloves and Safety Glasses. If you don’t already have a pair of gloves and safety glasses, please see the store worker.</p>

Personal Protective Equipment (PPE). Gloves and Safety Glasses. If you don’t already have a pair of gloves and safety glasses, please see the store worker.

2

Step 2 of 13

QA Sheet. You will find a QA sheet at the machine, if there is no QA sheet there see the team leader or production. A QA sheet will need to be completed at the start, through out and at the end of the day.

3

Step 3 of 13

No Tools Required.

4

Step 4 of 13

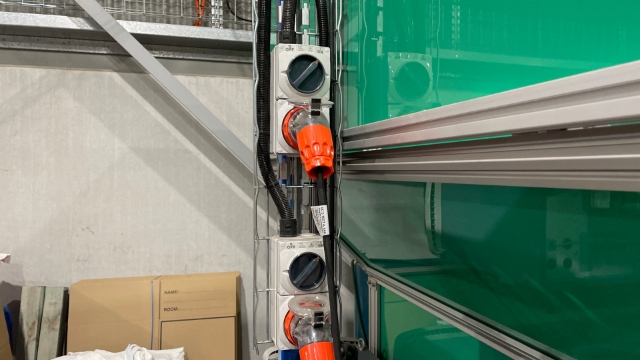

<p>Turn on the two main power switches.</p>

Turn on the two main power switches.

5

Step 5 of 13

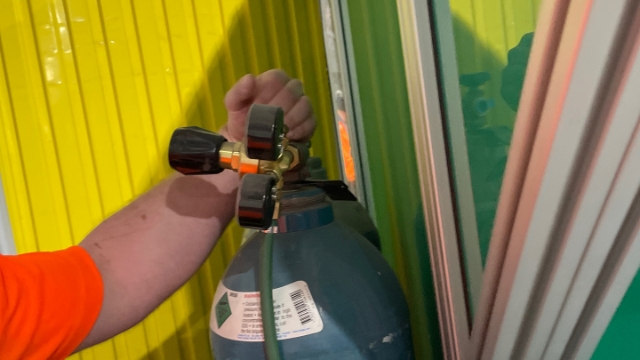

<p>Turn the gas on.</p>

Turn the gas on.

6

Step 6 of 13

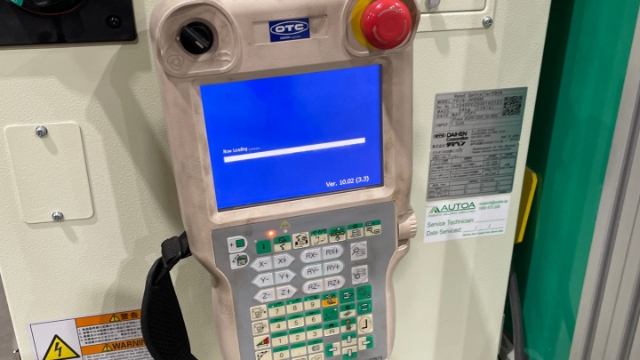

<p>Wait for screen to load.</p>

Wait for screen to load.

7

Step 7 of 13

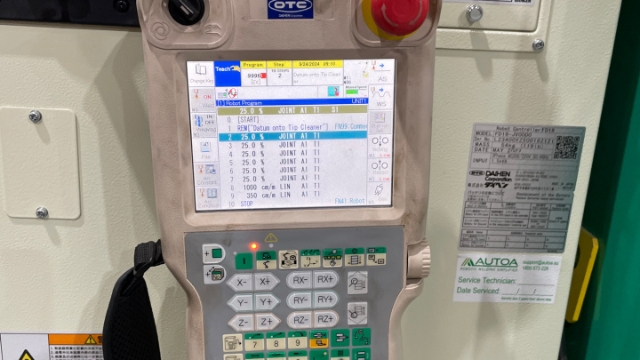

<p>Screen is loaded.</p>

Screen is loaded.

8

Step 8 of 13

Turn to teach mode🤏🏻 on the hand held and with the key

9

Step 9 of 13

Select program, type in 9998 then enter to get to the work Home Screen.

10

Step 10 of 13

Make sure the motors are on by pressing the +🟩 button and the green I button, the green I button will flash when the motors are on.

11

Step 11 of 13

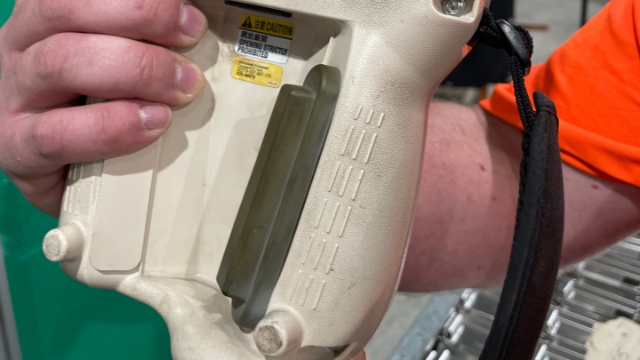

<p>Dead man’s switch.</p>

Dead man’s switch.

12

Step 12 of 13

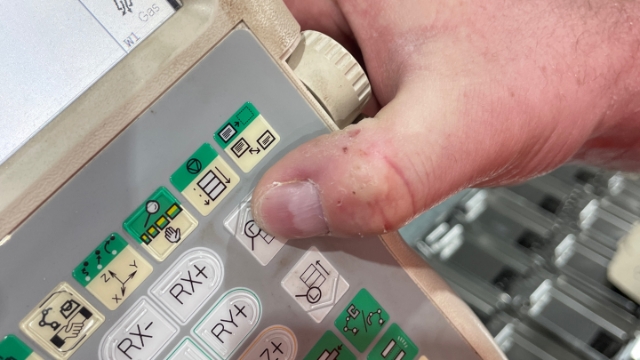

<p>Press the dead man’s switch and the Play forward button to move the robot to home position.</p>

Press the dead man’s switch and the Play forward button to move the robot to home position.

13

Step 13 of 13

Lock the table into place. You should hear a click when ts locked in.
