How to resolve canopy rear door lock strike rotating issue

How to resolve rear door lock strike rotating issue

How to resolve rear door lock strike rotating issue

1

Step 1 of 6

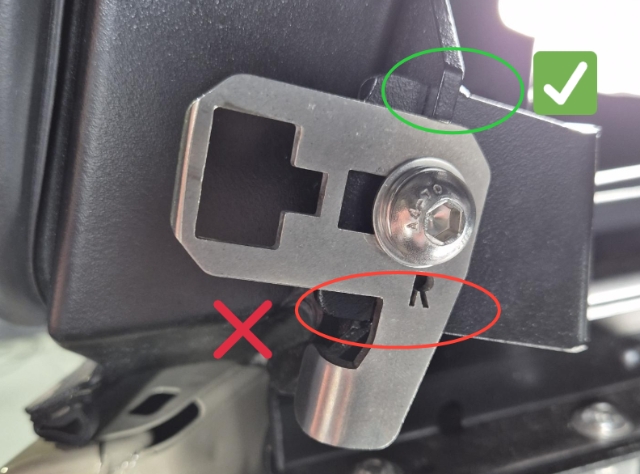

<p>All canopy models should have a lock strike locator on the top and bottom to prevent the lock strike from rotating. </p><p></p>

All canopy models should have a lock strike locator on the top and bottom to prevent the lock strike from rotating.

2

Step 2 of 6

If this doesn't have a locator tab on the top and bottom of the latch, this will allow the latch to rotate under load as shown.

If this is the case, this process shows how to resolve this issue.

3

Step 3 of 6

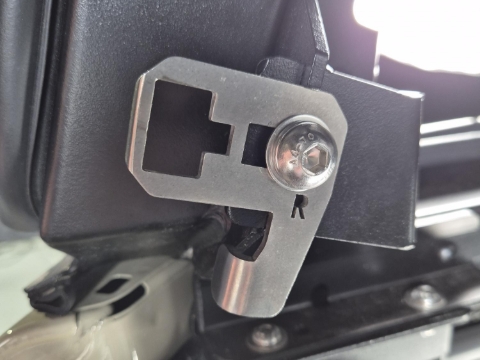

<p>Adjust the lock strike into the optimum position.</p>

Adjust the lock strike into the optimum position.

4

Step 4 of 6

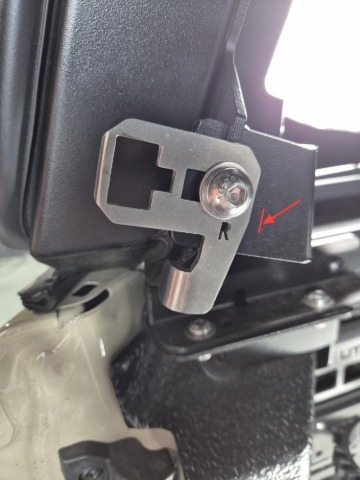

<p>Mark a hole 5mm from the back of the lock strike.</p>

Mark a hole 5mm from the back of the lock strike.

5

Step 5 of 6

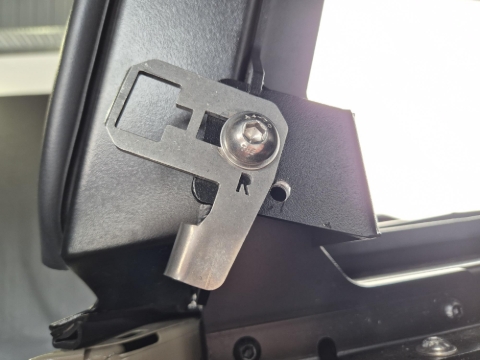

<p>Drill a 6mm hole as marked.</p>

Drill a 6mm hole as marked.

6

Step 6 of 6

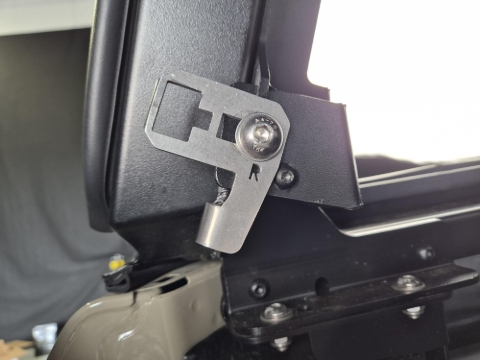

<p>Install a black M6x16 screw with a Nyloc Nut</p>

Install a black M6x16 screw with a Nyloc Nut
