Fuel Filler, "V3 Headboard" Hilux, Dual Cab

Knowby

Fuel Filler, "V3 Headboard" Hilux, Dual Cab

1

Step 1 of 13

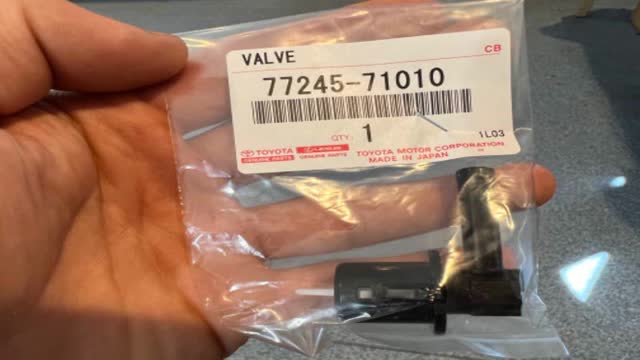

<p>SPECIAL NOTE: if vehicle had a “Tub” it will also require this breather valve. It is NOT required on the Cab Chassis models (because it is on there from factory)</p>

SPECIAL NOTE: if vehicle had a “Tub” it will also require this breather valve. It is NOT required on the Cab Chassis models (because it is on there from factory)

2

Step 2 of 13

<p><strong>Tools Required</strong></p>
<ul>
<li>13mm</li>
</ul>

Tools Required

13mm

3

Step 3 of 13

If vehicle had tub, feed door release cable into chassis

4

Step 4 of 13

Should be free to move

5

Step 5 of 13

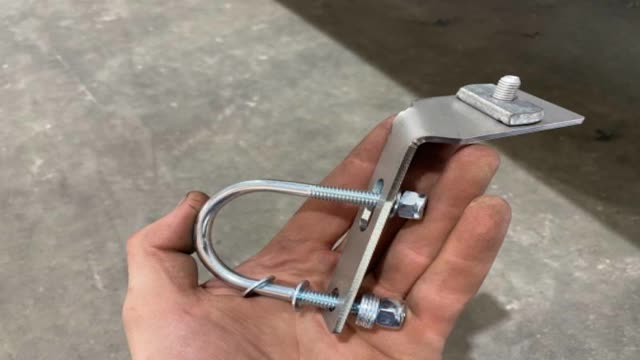

<p>identify the supplied Bracket</p>

identify the supplied Bracket

6

Step 6 of 13

Add supplied thread locker

7

Step 7 of 13

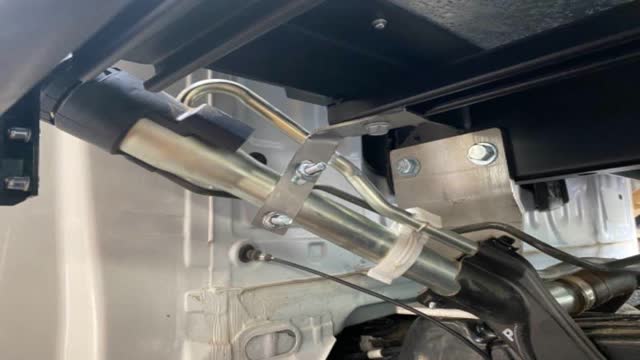

<p>Position bracket on inner rail</p>

Position bracket on inner rail

8

Step 8 of 13

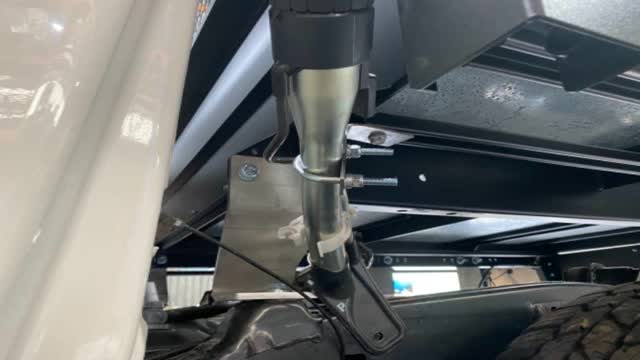

<p>Another view</p>

Another view

9

Step 9 of 13

Should be firmly mounted

10

Step 10 of 13

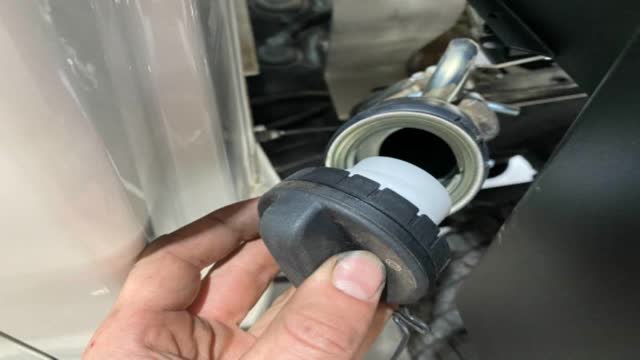

<p>Fit cap</p>

Fit cap

11

Step 11 of 13

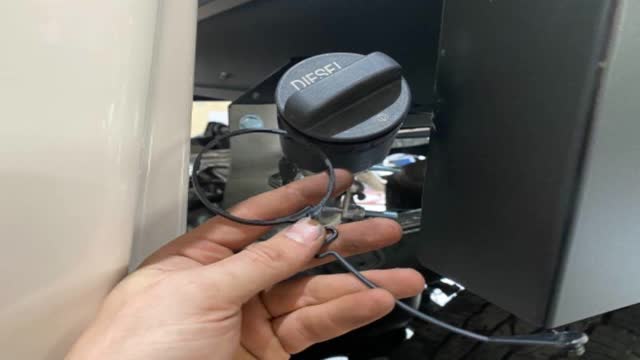

<p>Trim retainer off - as there is really no where to clip it into</p>

Trim retainer off - as there is really no where to clip it into

12

Step 12 of 13

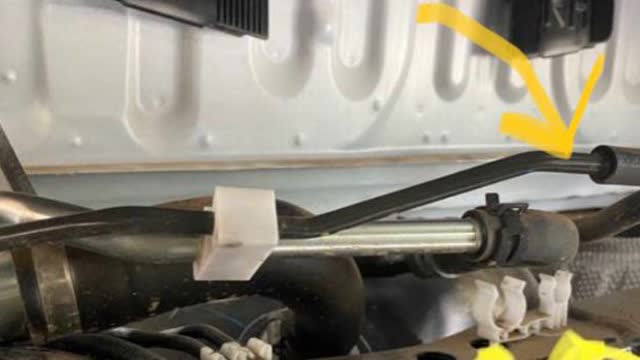

<p><em><strong>ONLY ON TUB MODEL</strong></em>
Disconnect the Smaller breather hose and fit the supplied breather fitting</p>

ONLY ON TUB MODEL Disconnect the Smaller breather hose and fit the supplied breather fitting

13

Step 13 of 13

<p>Add the breather valve</p>

Add the breather valve
