Mounts Layout: (+298mm) Next Gen Ranger-All New Amarok, Dual Cab

Knowby

Mounts Layout: (+298mm) Next Gen Ranger-All New Amarok, Dual Cab

Suits chopped vehicle from Adaptive Manufacturing with a +298mm Extension

Suits chopped vehicle from Adaptive Manufacturing with a +298mm Extension

1

Step 1 of 4

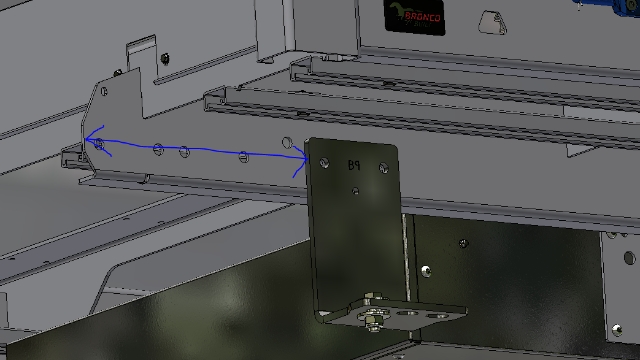

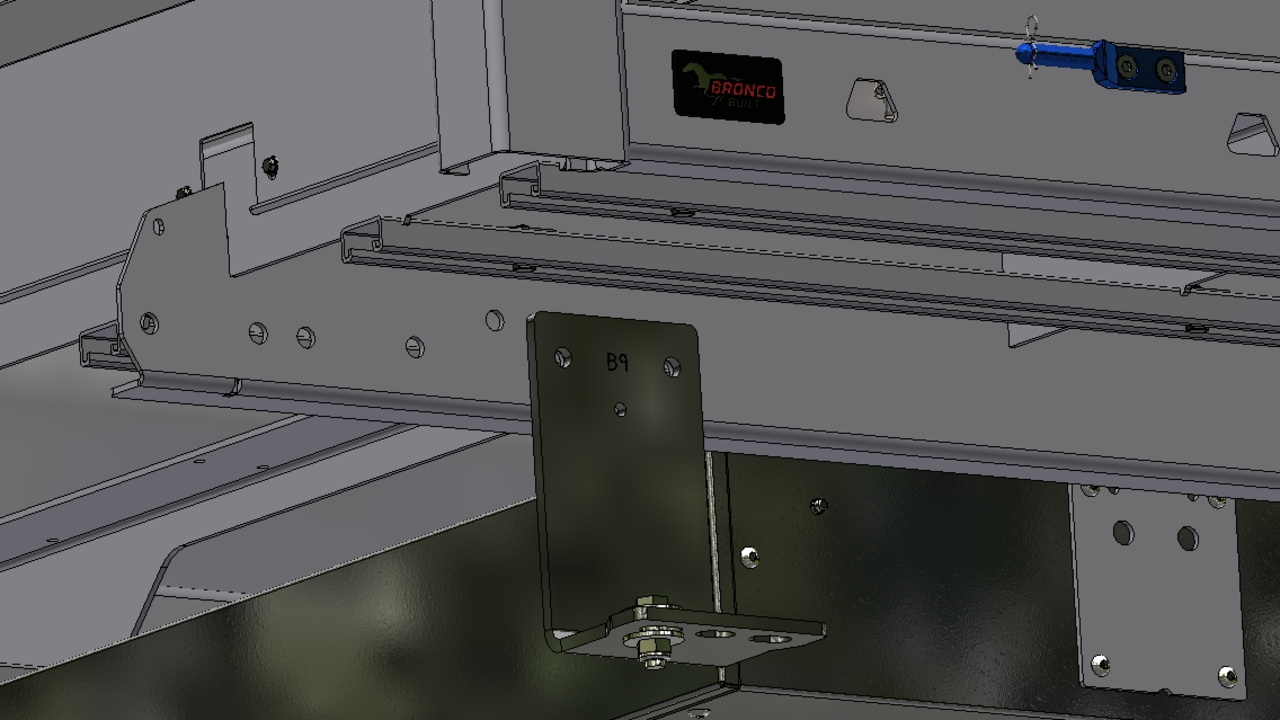

<p><strong>Front Mount, Both Sides</strong></p>
<ul>
<li>Laser Etched "B9"</li>
<li>298mm from front of <strong>chassis rail</strong>, to front of this mount</li>
</ul>

Front Mount, Both Sides

Laser Etched "B9"
298mm from front of chassis rail, to front of this mount

2

Step 2 of 4

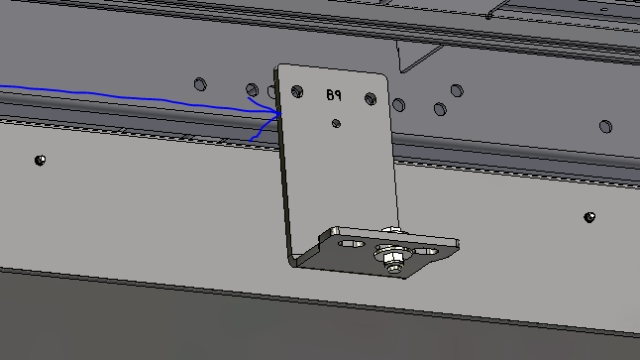

<p><strong>Middle Mount, Both Sides</strong></p>
<ul>
<li>Laser Etched "B9"</li>
<li>1155m from front of chassis rail, to front of this mount</li>
</ul>

Middle Mount, Both Sides

Laser Etched "B9"
1155m from front of chassis rail, to front of this mount

3

Step 3 of 4

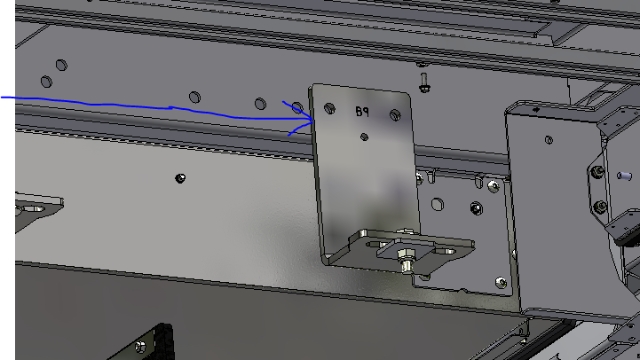

<p><strong>Back Mount, Both sides</strong></p>
<ul>
<li>Laser Etched "B9"</li>
<li>1656m from front of <strong>chassis rail,</strong> to front of this mount</li>
</ul>
<p><strong><em>WITH A 5mm PACKER UNDER EACH MOUNT</em></strong></p>

Back Mount, Both sides

Laser Etched "B9"
1656m from front of chassis rail, to front of this mount

WITH A 5mm PACKER UNDER EACH MOUNT

4

Step 4 of 4

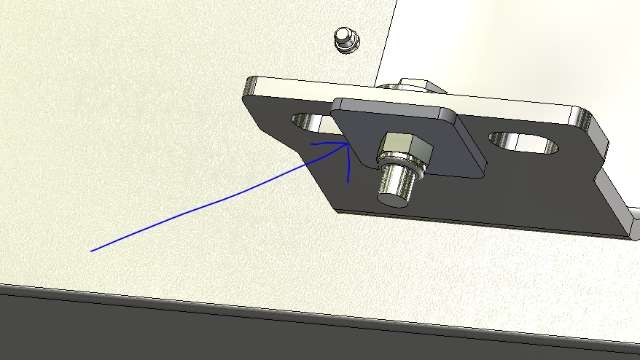

<p><strong>Dont forget!</strong></p>
<p>the 5mm packer will go between the Tray mount and the vehicle mount</p>

Dont forget!

the 5mm packer will go between the Tray mount and the vehicle mount
