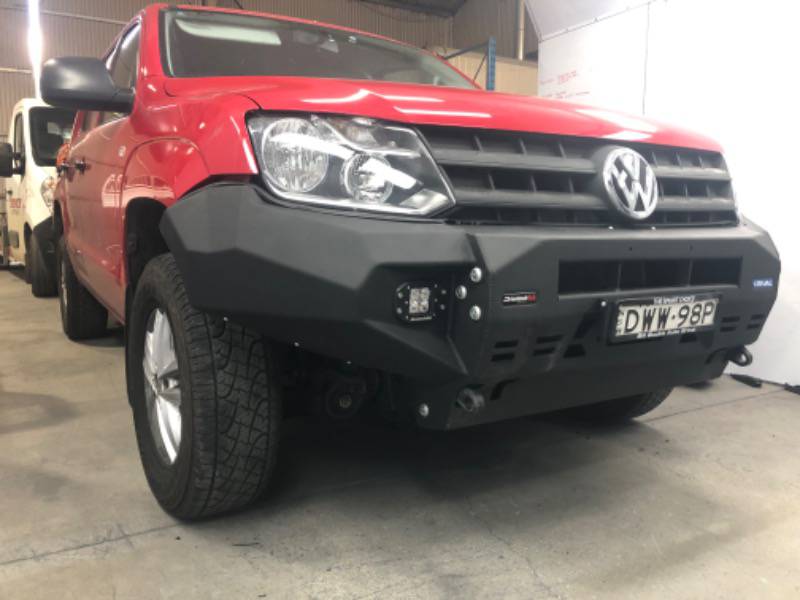

4WD Accessories: How to fit Bullbar, Volkswagen Amarok
1
Step 1 of 37

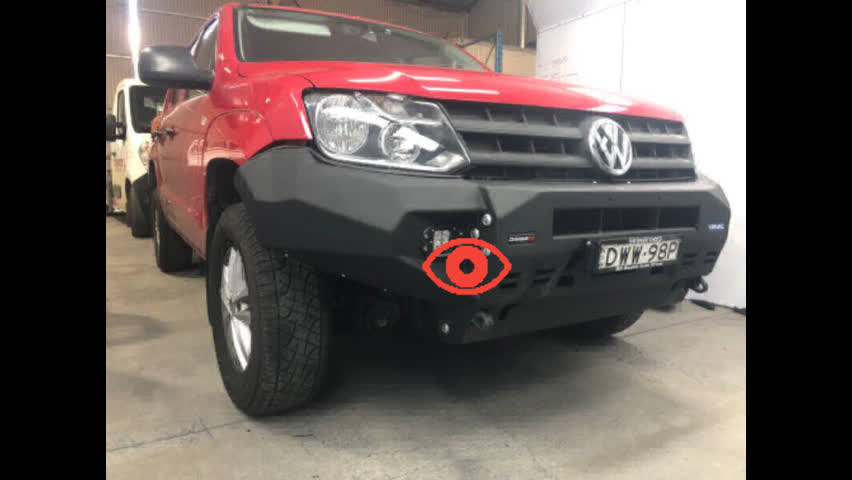

<p>Installation Instructions</p> <p>Note: Use in conjunction with supplied written instructions</p> <p>Model: Volkswagen Amarok (2010-2016) Part Number: DT-2D58071BNL ADR69 Compabible, Air bag compliant</p> <p>Fit Time: 5.5 Hours</p> <p>Degree of Difficulty: 8/10</p>

Installation Instructions

Note: Use in conjunction with supplied written instructions

Model: Volkswagen Amarok (2010-2016) Part Number: DT-2D58071BNL ADR69 Compabible, Air bag compliant

Fit Time: 5.5 Hours

Degree of Difficulty: 8/10

2
Step 2 of 37

PPE:

  • Safety boots
  • Leather gloves
  • Protective eyewear

Tools Required: • T25 Torx • T27 Torx • 10mm socket • Wire Cutters • Drill and Drills Bits • Impact Driver • plus more..... (add more)

Note: Torque settings M6 - 9Nm M10 - 44Nm

3
Step 3 of 37

Release bonnet on passenger side, open bonnet

4
Step 4 of 37

Disconnect battery negative, 10mm

5
Step 5 of 37

Outside corners of grille, T27

6
Step 6 of 37

3x screws. Size, repeat opposite side. T25

7
Step 7 of 37

2x inner, size (T25), 2 x outer (T27)

8
Step 8 of 37

Remove lic plate, Phillips head screwdriver

9
Step 9 of 37

Pull forward, removing grille (keep it, it will be trimmed and reused)

10
Step 10 of 37

Use flat head screwdriver to pry off and remove, pull off. Discard- not required

11
Step 11 of 37

Undo, T27

12
Step 12 of 37

Punch through centres of clips, pry black bracket form vehicle - discard, they are not required.

Repeat for both sides

13
Step 13 of 37

Remove front bracket, use approx 5-8mm drill to remove rivet.

Repeat for opposite side

14
Step 14 of 37

Mark both sides, flush with outside of vehicle chassis rails.

15
Step 15 of 37

Cut pass side.

NOTE: Take care when cutting- it is important that the cut is flush with the vehicle chassis rail.  If too wide- you will have trouble fitting bar.

16
Step 16 of 37

Cut drivers side

17
Step 17 of 37

Passenger side. Enlarge holes to 10mm

18
Step 18 of 37

Fit pass side bracket.

Use M10 Insert nut (with the long wire handle). M10x25mm Bolts and washers

19
Step 19 of 37

Remove bash plate. 13mm

20
Step 20 of 37

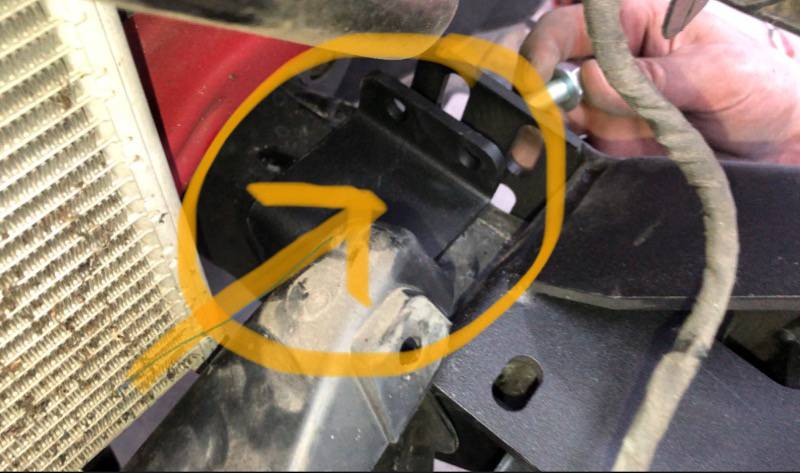

<p>Fit saddle bracket, pass side.</p>

Fit saddle bracket, pass side.

21
Step 21 of 37

Fit bolts.

M10x30 Bolts M10 Nuts and Washers

22
Step 22 of 37

Fit under bolt. Re-Use Original Bolt

23
Step 23 of 37

Front bolt. M10x30 Bolts M10 Nut Washer

24
Step 24 of 37

Enlarge hole, 10mm

25
Step 25 of 37

Fit driv side bracket

26
Step 26 of 37

Fit inner

27
Step 27 of 37

Fit winch cradle M10x25 Bolts M10 Nuts Washers

28
Step 28 of 37

Tighten cradle, size...

29
Step 29 of 37

Drill cradle top holes 10mm

30
Step 30 of 37

Tighten, size...

31
Step 31 of 37

Install LED lights to bar. M6x16 bolts

32
Step 32 of 37

Fit bar.

Get a hand lifting!

33
Step 33 of 37

Fit main bolts. M10x30 Countersunk Bolts Countersunk Washers

34
Step 34 of 37

Fit washers and M10 Nuts

Adjust bumper until you have an equal gap between vehicle body and the bumper on both sides.

Tighten bolts after that

35
Step 35 of 37

Re-connect vehicle battery

36
Step 36 of 37

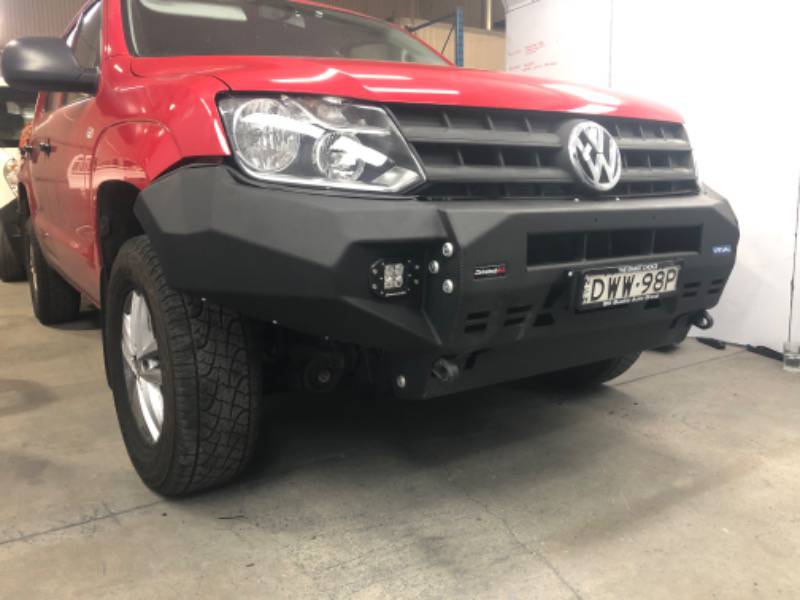

<p>Complete!</p>

Complete!
