Roll out hard hose
1
Step 1 of 17

Park the hard hose on level ground and in a safe position and engage lever one hydraulics and lock on

2
Step 2 of 17

Look down the axle of the hard hose and ensure that it is lined up and straight with your run line

3
Step 3 of 17

Put jockey down

4
Step 4 of 17

Pull pin out - this may take some wiggling with the jockey but be very careful of your fingers

5
Step 5 of 17

Pull the pin out of the stopper slot on turntable

6
Step 6 of 17

Spin the hard hose slowly

7
Step 7 of 17

Line the stopper slot up with the hard hose turntable and drop the pin in the correct position

8
Step 8 of 17

Drop the legs of the hard hose to the point where it is taking some of the weight of the hard hose.

9
Step 9 of 17

Latch the dog on the hook - note you may need to take some strain off the PTO with the handle

10
Step 10 of 17

Unwrap the snatch strap of trolley

11
Step 11 of 17

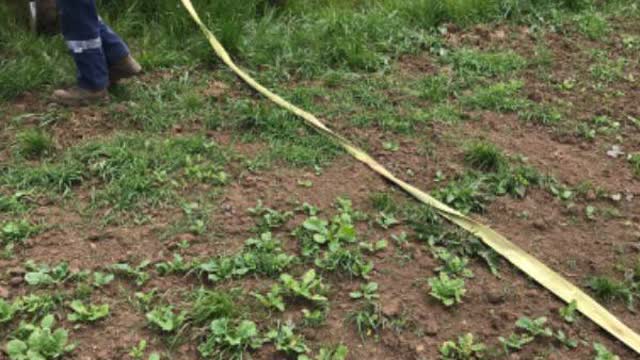

<p>Lay snatch strap out ready to back up to with tractor</p>

Lay snatch strap out ready to back up to with tractor

12
Step 12 of 17

Disengage the hydraulics and unhook of tractor

13
Step 13 of 17

Back up to the trolley ensuring your tractor is pointing straight down your run line

14
Step 14 of 17

Make sure you're in neutral by pulling out the gear lever and testing with the handle - it will move freely when in neutral

15
Step 15 of 17

Make sure that the dog is hooked up and that the gear lever is in neutral

16
Step 16 of 17

Open the computer press the on button then the Up arrow.

17
Step 17 of 17

When you start rolling out the hard hose be extra careful for the first five metres and then don’t go faster than 3km/hr. Keep gears in C1 and running in idle
