Operate Your Cat® Articulated Truck
This guide provides a comprehensive step-by-step process for safely and effectively operating your Cat® Articulated Truck, including pre-shift checks, cab entry, engine start, control operation, driving techniques, and maintenance checks.
This guide provides a comprehensive step-by-step process for safely and effectively operating your Cat® Articulated Truck, including pre-shift checks, cab entry, engine start, control operation, driving techniques, and maintenance checks.
1
Step 1 of 61

PRE-SHIFT CHECK:

Steps 2 - 32 Inspect fluids, tires, lights, signals, and safety gear.

SAFETY TIPS:

Steps 33 - 45 Wear PPE, communicate with team, follow speed limits, and watch for blind spots.

BASIC OPERATOR SETTINGS:

Steps 46 - 61 Adjust seat, mirrors, and controls. Learn dashboard indicators.

2
Step 2 of 61

PRE-SHIFT CHECK

Do a through walk-around inspection before operation.

3
Step 3 of 61

Start at the front.

4
Step 4 of 61
  • Look for cracks, rust or other signs of structural damage.
  • Check under the machine for leaks and debris.

⚠️ If you notice any defects, please log them in the Pre-Shift Check Form

5
Step 5 of 61

Note the location of the diesel exhaust fluid (DEF) fill.

6
Step 6 of 61

Note the location of the diesel fuel fill.

7
Step 7 of 61

Note the location of the fast fuel fill (if equipped).

8
Step 8 of 61

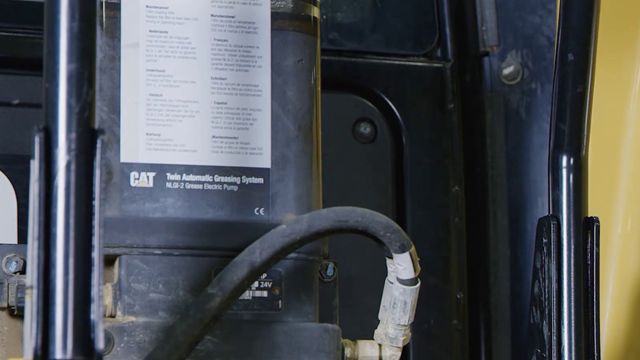

<p>Note the location of the autolube tank (if equipped).</p>

Note the location of the autolube tank (if equipped).

9
Step 9 of 61

This is your steering frame lock.

10
Step 10 of 61

Use it for safety during maintenance and machine transportation.

11
Step 11 of 61

Check hydraulic components for loose fittings, debris and leaks.

12
Step 12 of 61
<blockquote> <p><strong>REMEMBER</strong>:</p> <ul> <li>Every hydraulic cylinder has three grease zerks: head end, rod end and pivot point.</li> <li>Grease keeps moving parts lubricated to prevent wear.</li> </ul> </blockquote>

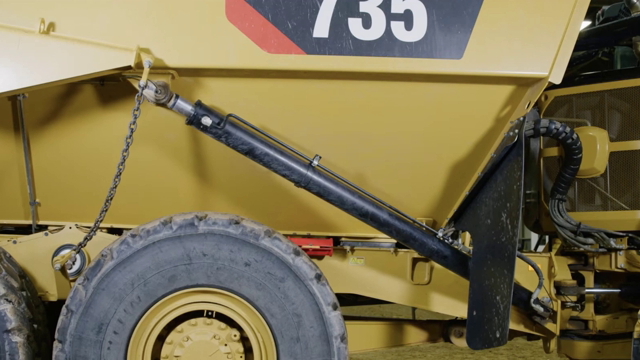

REMEMBER:

  • Every hydraulic cylinder has three grease zerks: head end, rod end and pivot point.
  • Grease keeps moving parts lubricated to prevent wear.
13
Step 13 of 61

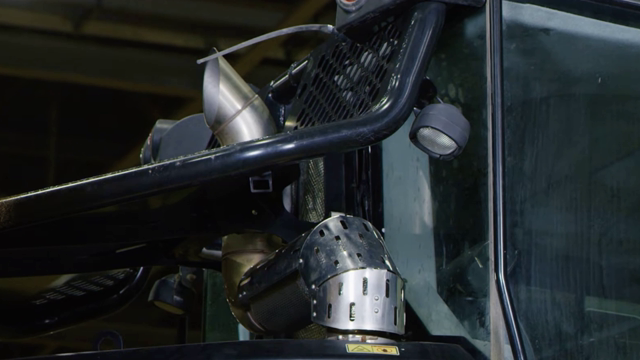

<p>Check exhaust pipes for damage.</p>

Check exhaust pipes for damage.

14
Step 14 of 61
  • Your exhaust body heat kit (if equipped) heats material to prevent carryback.
  • Check that clamps are intact.
15
Step 15 of 61

Inspect tires for damage and check inflation.

16
Step 16 of 61

Look for damage and debris stuck in tailgate (if equipped).

17
Step 17 of 61

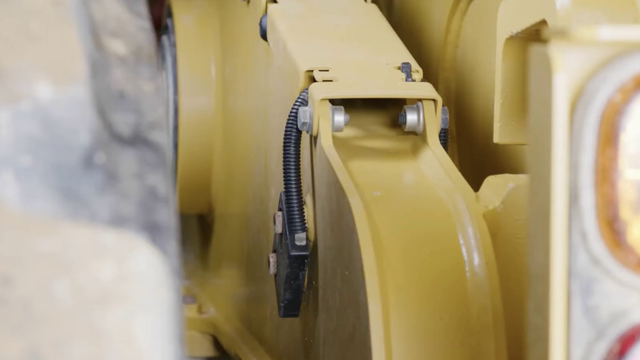

<p>Make sure lights and payload sensors are damage free.</p>

Make sure lights and payload sensors are damage free.

18
Step 18 of 61

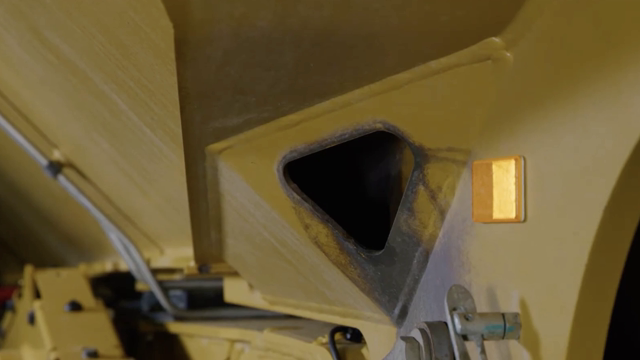

<p>Check for debris that could block the exhaust port.</p>

Check for debris that could block the exhaust port.

19
Step 19 of 61

Here are the coolant fill and sight gauge.

20
Step 20 of 61

This is your Ground-Level Service Center.

21
Step 21 of 61

Fuel shutoff and jumpstart location.

22
Step 22 of 61

Master disconnect.

23
Step 23 of 61

Access lights.

24
Step 24 of 61

This switch opens the hood.

25
Step 25 of 61

Look for debris and leaks inside the engine compartment.

26
Step 26 of 61

Check engine and hydraulic oil levels.

27
Step 27 of 61

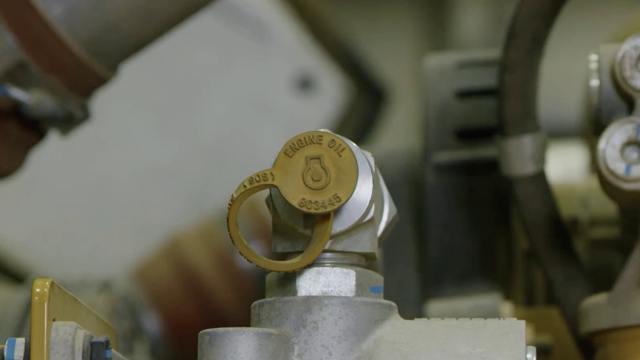

<p>Your machine has S•O•S ports for fluid analysis.</p>

Your machine has S•O•S ports for fluid analysis.

28
Step 28 of 61

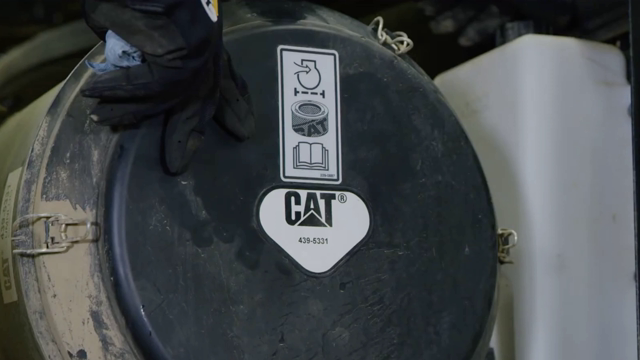

<p>Clean and replace engine air filter when prompted on monitor.</p>

Clean and replace engine air filter when prompted on monitor.

29
Step 29 of 61

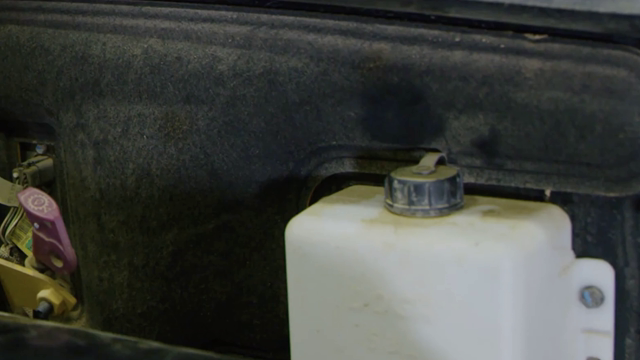

<p>Check wiper fluid level.</p>

Check wiper fluid level.

30
Step 30 of 61

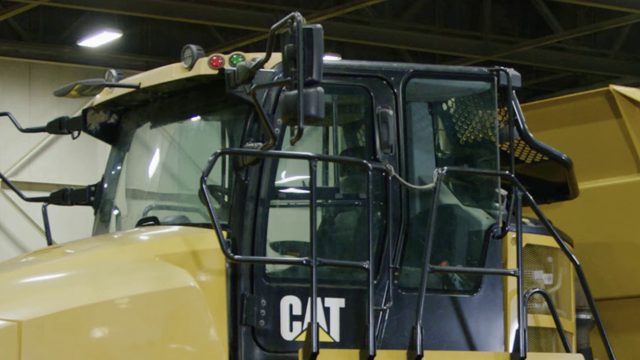

<ul> <li>Your machine has a rollover protection structure (ROPS) and falling object protective structure (FOPS).</li> <li>Visually inspect your ROPS and FOPS for signs of structural damage.</li> </ul>
  • Your machine has a rollover protection structure (ROPS) and falling object protective structure (FOPS).
  • Visually inspect your ROPS and FOPS for signs of structural damage.
31
Step 31 of 61

Make sure the horn and backup alarm are working.

32
Step 32 of 61

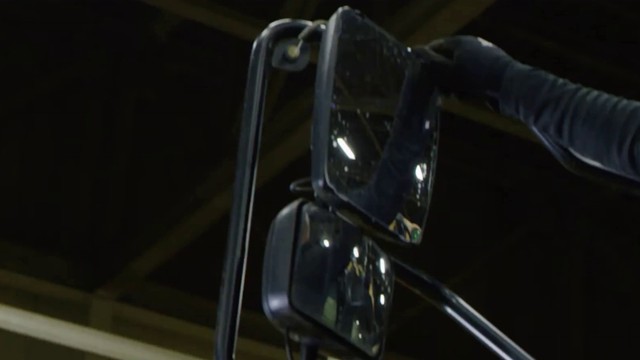

<p>Examine your mirrors for damage.</p>

Examine your mirrors for damage.

33
Step 33 of 61

SAFETY TIPS

Wear personal protective equipment (PPE) as required.

34
Step 34 of 61

Keep boots clean.

35
Step 35 of 61

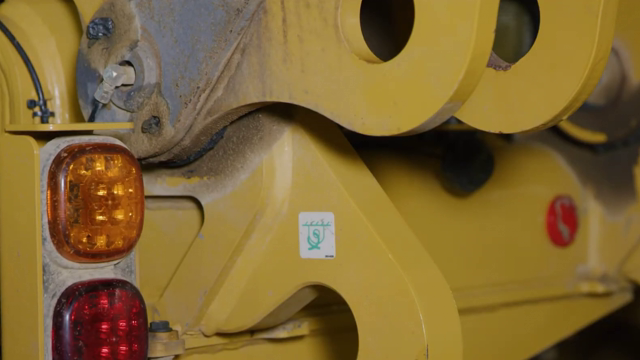

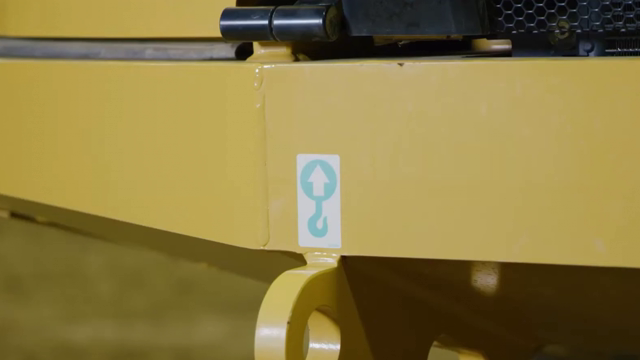

<p>Learn tie-down locations for machine transportation.</p>

Learn tie-down locations for machine transportation.

36
Step 36 of 61
<p>Learn tie-down locations for machine transportation.</p>

Learn tie-down locations for machine transportation.

37
Step 37 of 61

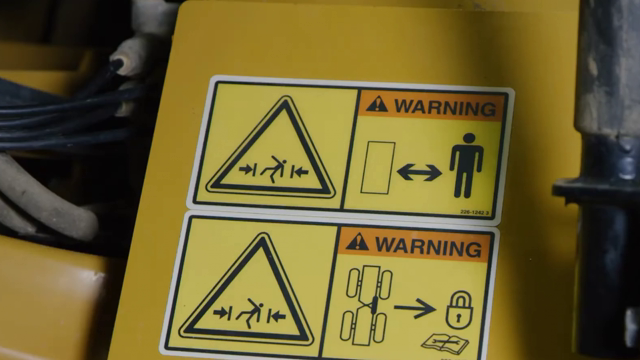

<p>Be mindful of pinch points.</p>

Be mindful of pinch points.

38
Step 38 of 61

In case of emergency, use the fuel shutoff and/or master disconnect.

39
Step 39 of 61

Keep compartment doors closed and latched.

40
Step 40 of 61

Clean windows, mirrors and rearview camera.

41
Step 41 of 61

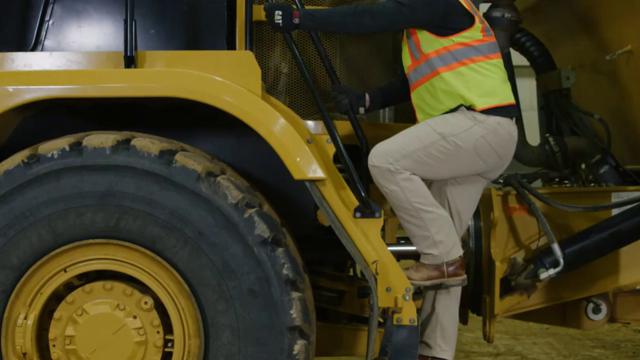

<p>Maintain three points of contact with the machine when entering/exiting.</p>

Maintain three points of contact with the machine when entering/exiting.

42
Step 42 of 61

Always face the machine.

43
Step 43 of 61

Use feet pads, steps and handrails.

44
Step 44 of 61

Inspect your seat belt daily, and always buckle up.

45
Step 45 of 61

Note alternate exit and breaking tool.

46
Step 46 of 61

BASIC OPERATOR SETTINGS

Adjust your seat for comfort and easy pedal/lever reach.

47
Step 47 of 61

Air suspension adjustments.

48
Step 48 of 61

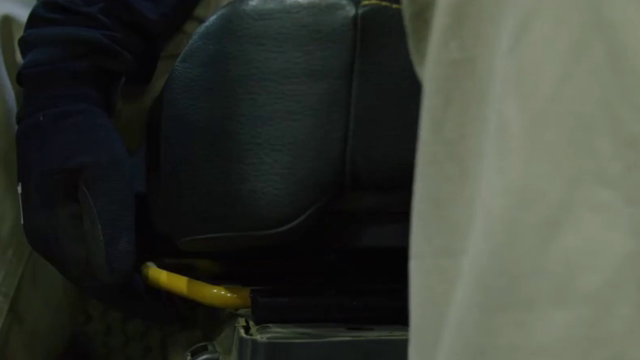

<p>Fore and aft.</p>

Fore and aft.

49
Step 49 of 61

Backrest position.

50
Step 50 of 61

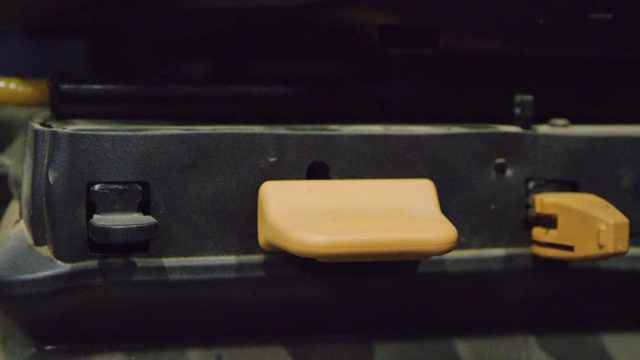

<p>Thigh support.</p>

Thigh support.

51
Step 51 of 61

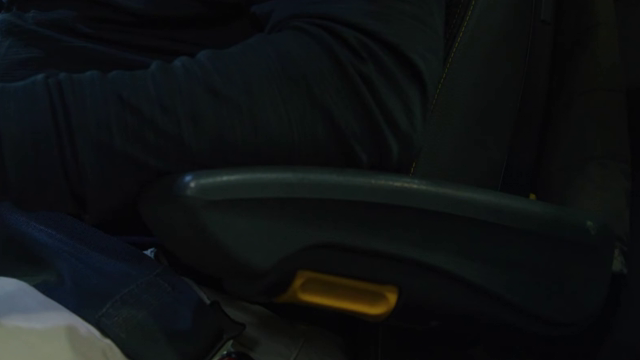

<p>Arm rest.</p>

Arm rest.

52
Step 52 of 61

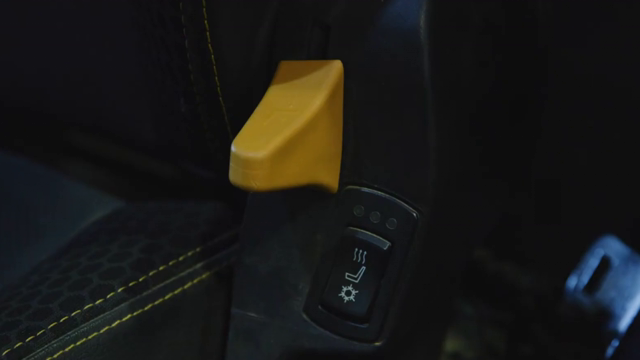

<p>Heated and cooled seats</p>

Heated and cooled seats

53
Step 53 of 61

Fasten seat belt and then adjust steering wheel.

54
Step 54 of 61

Here is your combined transmission and hoist control.

55
Step 55 of 61

Emergency brake.

56
Step 56 of 61

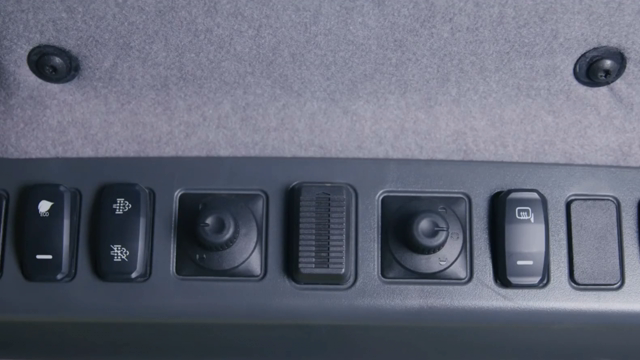

<p>Mirror and rear wiper controls.</p>

Mirror and rear wiper controls.

57
Step 57 of 61

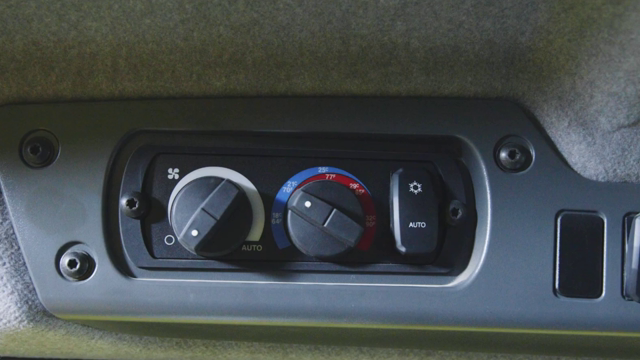

<p>Temperature controls.</p>

Temperature controls.

58
Step 58 of 61

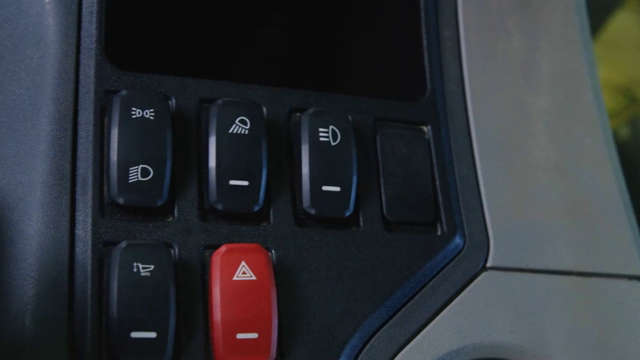

<p>Light and assisted hoist switches.</p>

Light and assisted hoist switches.

59
Step 59 of 61

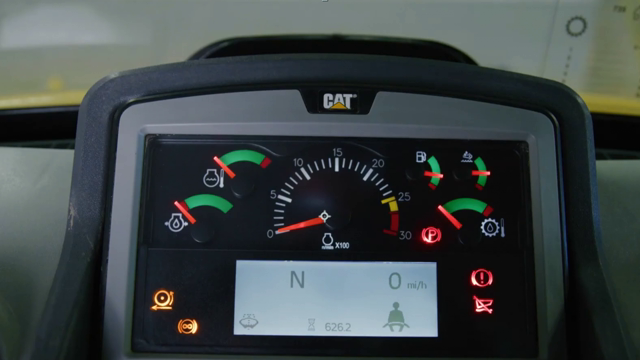

<p>Gauges monitor.</p>

Gauges monitor.

60
Step 60 of 61

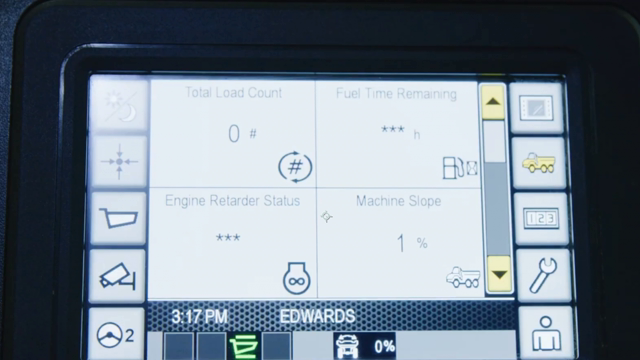

<p>Cat Information Display.</p>

Cat Information Display.

61
Step 61 of 61

Always refer to the Operation and Maintenance Manual and practice safe operating procedures.
