Carriage Disconnect and Rail Removal from Machine

Master the removal of Bomac Altrac carriage and rail from your machinery! This Knowby guide breaks down the process into easy-to-follow steps, ensuring a smooth and safe disassembly. Equip yourself for maintenance tasks, efficiently and securely.

Step 1 of 6

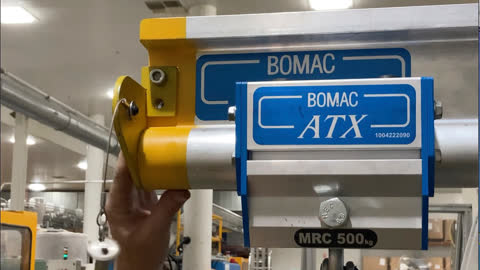

Ensure there is no load on the carriage, then detach the carriage from the machine by unscrewing the shackle. Ensure the shackle pin is screwed back into the shackle so it does not get lost.

Step 2 of 6

Press the button in the centre of the ball lock pin, and remove the pin from it's hole.

Step 3 of 6

Lift the flap at the end of the rail, and gently slide the carriage off the end of the rail ensuring to support the carriage with both hands as it leaves the rail.

Step 4 of 6

Close the flap. While pushing the button in the centre of the ball lock pin, reinsert pin back into it's hole, to secure the flap back into place.

Step 5 of 6

Ensure the ball lock pin is secure by giving it a firm tug, the pin should stay in place.

Step 6 of 6

Using two people to support the rail from each end, gently slide the rail out of its clamps to remove it from the machine.
