UHF Mount Instructions - UMLC3
Land Cruiser 300 Tools required: 10mm spanner or Socket
Land Cruiser 300 Tools required: 10mm spanner or Socket
1
Step 1 of 4

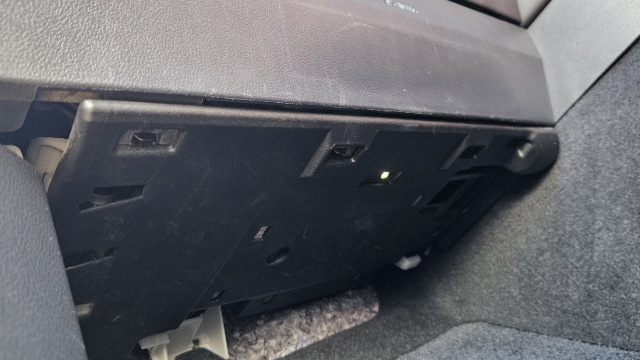

<p><strong>Step 1</strong>: Remove the cover piece from below the glove box by detaching three clips.</p>

Step 1: Remove the cover piece from below the glove box by detaching three clips.

2
Step 2 of 4

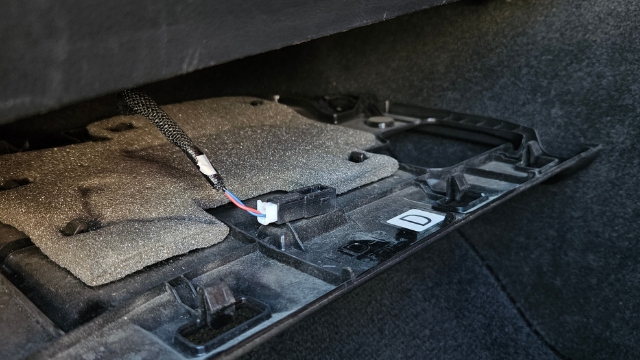

<p><strong>Step 2:</strong> Detach the electrical connector and set cover piece aside.</p>

Step 2: Detach the electrical connector and set cover piece aside.

3
Step 3 of 4

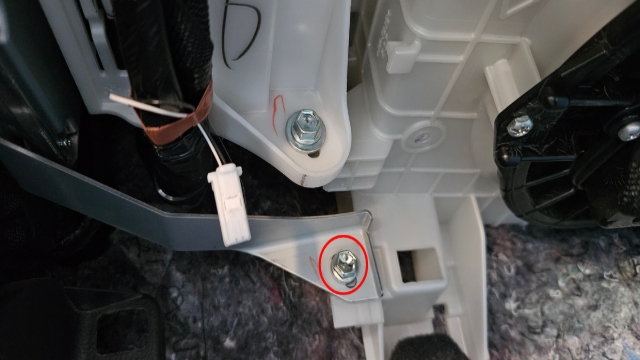

<p><strong>Step 3:</strong> Remove the bolt indicated in the image.</p>

Step 3: Remove the bolt indicated in the image.

4
Step 4 of 4

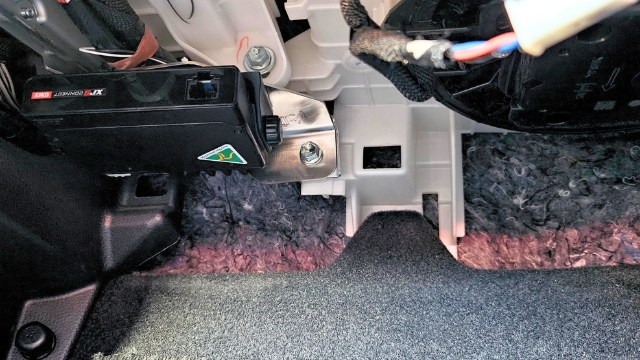

<p><strong>Step 4:</strong> Mount the UHF in this location as pictured. Wire up the UHF and replace cover piece.</p>

Step 4: Mount the UHF in this location as pictured. Wire up the UHF and replace cover piece.
