OPF GRAIN SYSTEM FAILER
1
Step 1 of 7

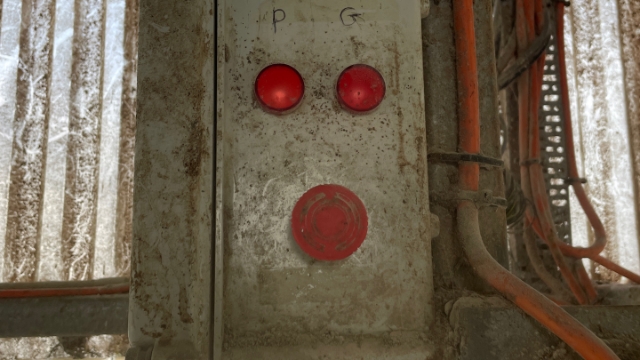

<p>If left light is showing there is a failure in the protine cable system</p> <p>Right light is for crushed grain system</p>

If left light is showing there is a failure in the protine cable system

Right light is for crushed grain system

2
Step 2 of 7

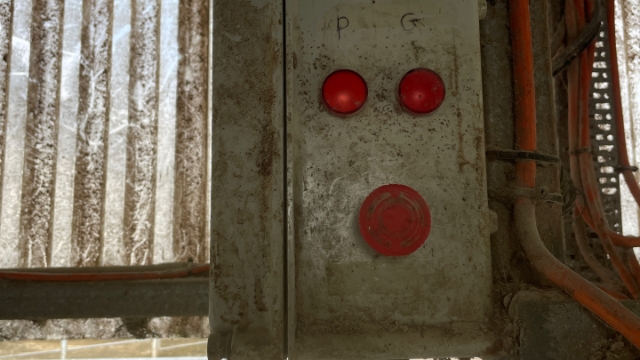

<p>Isolated power by pressing the emergancy stop button</p>

Isolated power by pressing the emergancy stop button

3
Step 3 of 7

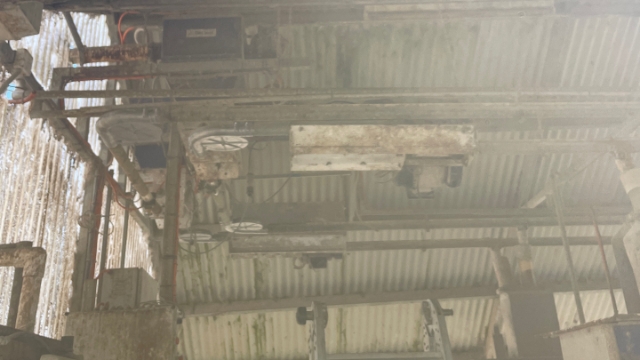

<p>Remove cover from above the white box</p>

Remove cover from above the white box

4
Step 4 of 7

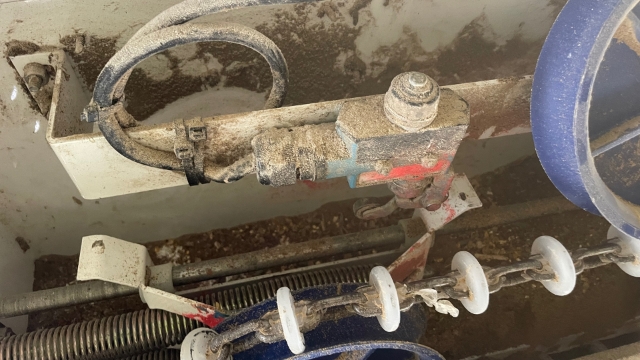

<p>Once fault has been fixed chain caught up ect. Press the button on top of the micro switch.</p>

Once fault has been fixed chain caught up ect. Press the button on top of the micro switch.

5
Step 5 of 7

Place lid back on white box

6
Step 6 of 7

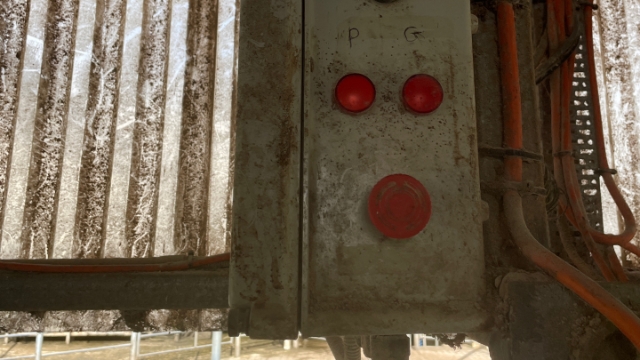

<p>Turn emergency stop switch back on and make sure there are no lights showing</p>

Turn emergency stop switch back on and make sure there are no lights showing

7
Step 7 of 7

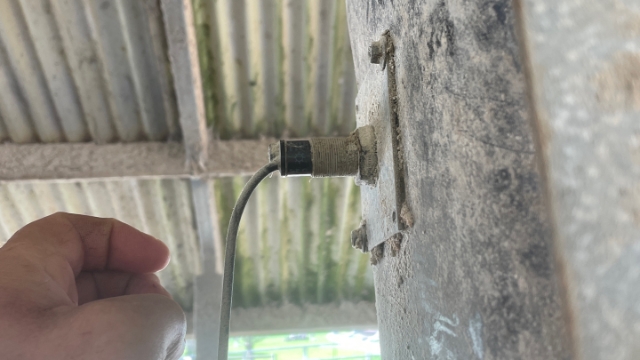

<p>Check sensers</p> <p>No light means grain in hoppers</p> <p>Red light means empty</p>

Check sensers

No light means grain in hoppers

Red light means empty
