Re-fueling the Diesel Forklift
Re-fueling the Diesel Forklift
1
Step 1 of 14

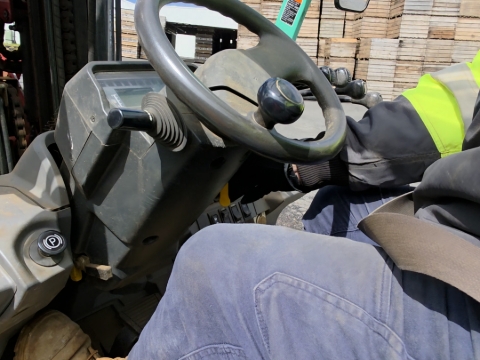

<p>Stop vehicle, turn off and remove key. Remove seatbelt and secure it out of the way</p>

Stop vehicle, turn off and remove key. Remove seatbelt and secure it out of the way

2

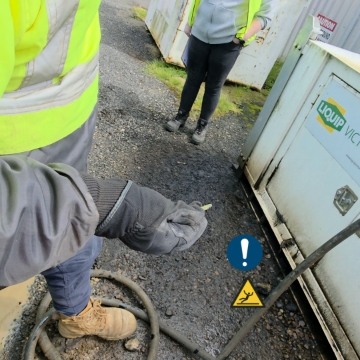

Step 2 of 14
<p>Exit the vehicle. Be aware of uneven surface and trip hazards when exiting the vehicle.</p>

Exit the vehicle. Be aware of uneven surface and trip hazards when exiting the vehicle.

3

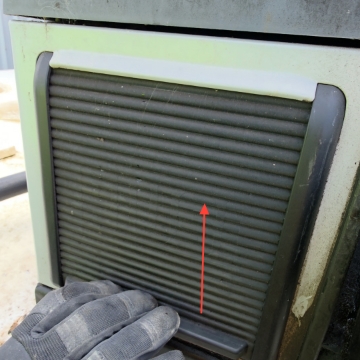

Step 3 of 14
<p>Slide cover up to reveal control panel</p>

Slide cover up to reveal control panel

4
Step 4 of 14

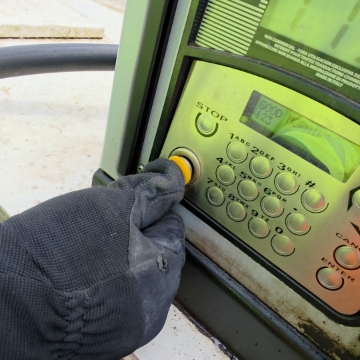

<p>Hold key tag here for a few seconds to reset the pump</p>

Hold key tag here for a few seconds to reset the pump

5
Step 5 of 14
<p>Switch this switch to 'On' to activate pump</p>

Switch this switch to 'On' to activate pump

6
Step 6 of 14

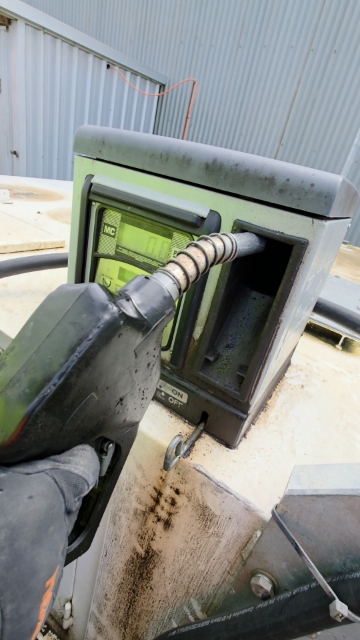

<p>Remove Nozzle from the pump</p>

Remove Nozzle from the pump

7

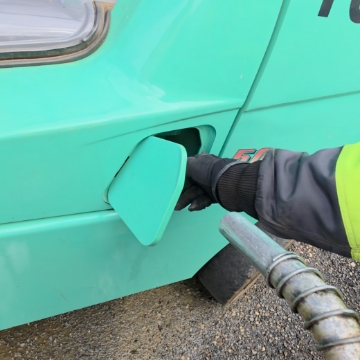

Step 7 of 14
<p>Open fuel flap, and turn fuel cap counter clockwise. Place the cap somewhere clean and secure.</p>

Open fuel flap, and turn fuel cap counter clockwise. Place the cap somewhere clean and secure.

8
Step 8 of 14

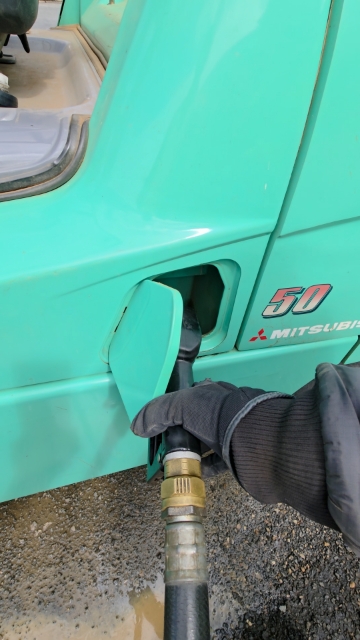

<p>Insert nozzle and squeeze handle to pump fuel. Fuel will stop pumping when tank is full with auto cut off.</p>

Insert nozzle and squeeze handle to pump fuel. Fuel will stop pumping when tank is full with auto cut off.

9
Step 9 of 14

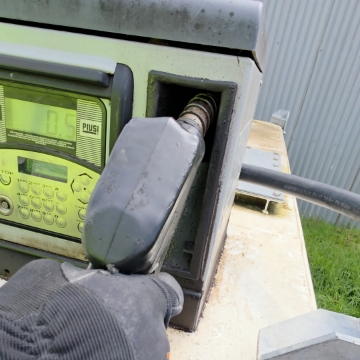

<p>Replace the nozzle back on the pump and ensure it is secure</p>

Replace the nozzle back on the pump and ensure it is secure

10

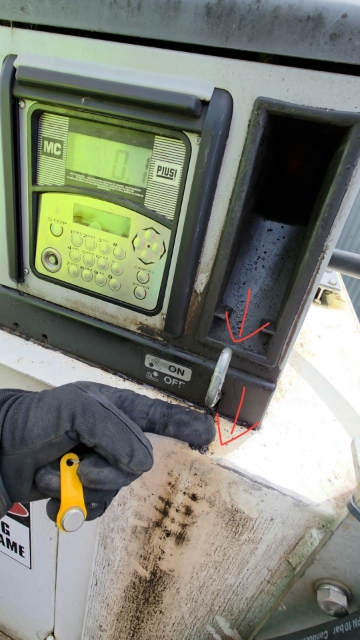

Step 10 of 14
<p>Switch this switch down to "Off"</p>

Switch this switch down to "Off"

11
Step 11 of 14

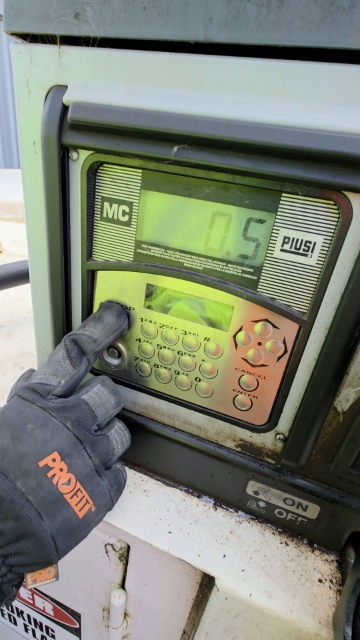

<p>Push this button to turn system off</p>

Push this button to turn system off

12

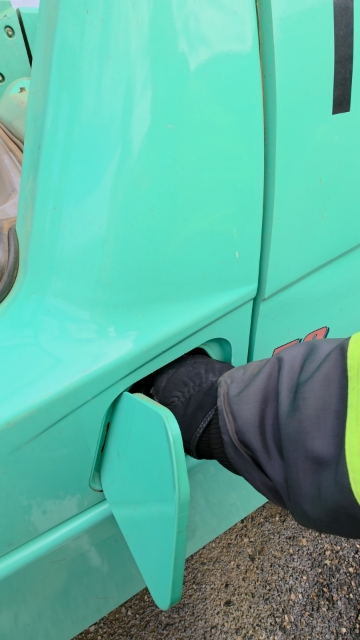

Step 12 of 14
<p>Replace the fuel cap, turn clockwise until you hear the clicks. </p>

Replace the fuel cap, turn clockwise until you hear the clicks.

13

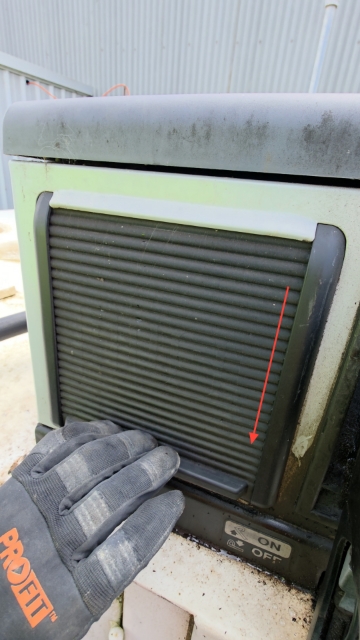

Step 13 of 14
<p>Close the cover on the pump</p>

Close the cover on the pump

14
Step 14 of 14

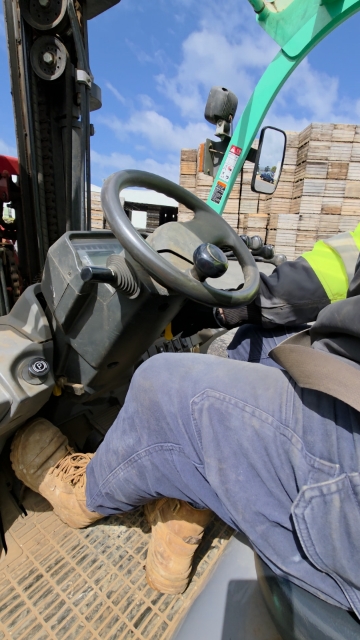

<p>You are done. Put your seatbelt on.</p>

You are done. Put your seatbelt on.
