Fuel Filler, "RG" DMax-BT50, Dual Cab

Knowby

Fuel Filler, "RG" DMax-BT50, Dual Cab

1

Step 1 of 13

Looks like this when done

2

Step 2 of 13

Original neck looks like

3

Step 3 of 13

Remove

4

Step 4 of 13

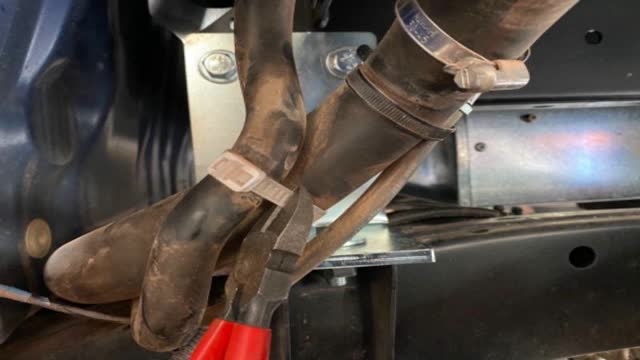

<p>Trim zip tire</p>

Trim zip tire

5

Step 5 of 13

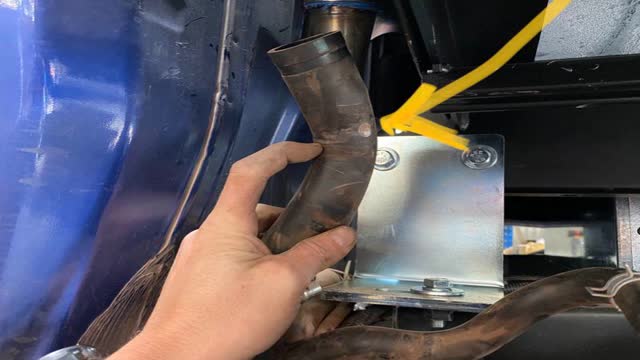

<p>Cut at mid elbow approx 80mm from end</p>

Cut at mid elbow approx 80mm from end

6

Step 6 of 13

Looks like this

7

Step 7 of 13

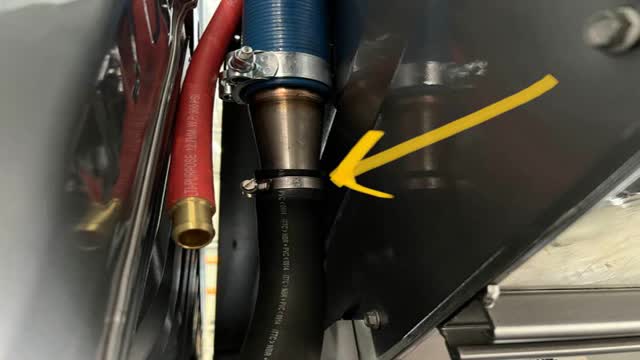

<p>Connect main filler, tight 7mm</p>

Connect main filler, tight 7mm

8

Step 8 of 13

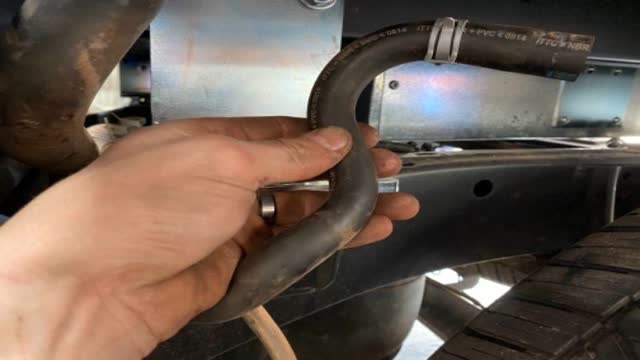

<p>Identify tank breather</p>

Identify tank breather

9

Step 9 of 13

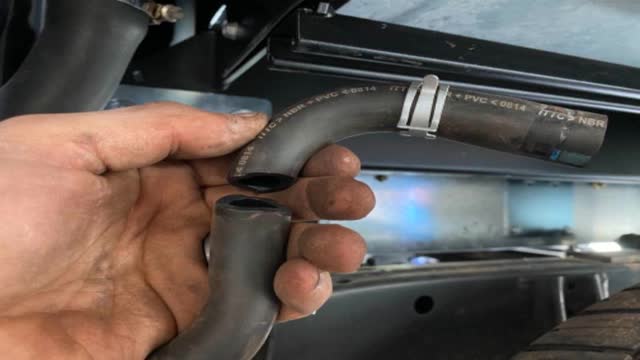

<p>Trim end</p>

Trim end

10

Step 10 of 13

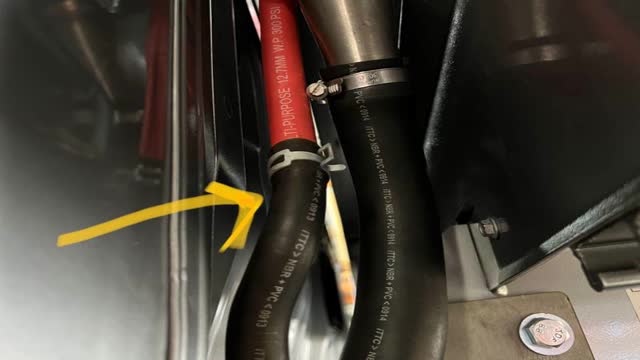

<p>Connect to tray breather</p>

Connect to tray breather

11

Step 11 of 13

Diff breather identify

12

Step 12 of 13

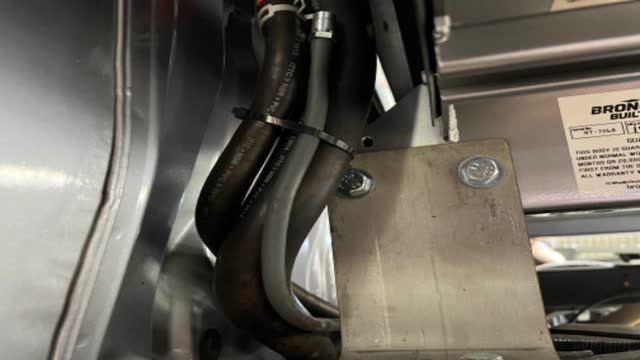

<p>Zip neatly</p>

Zip neatly

13

Step 13 of 13

Looks like this
