CHASSIS MOUNTS, D-MAX/BT-50 SC
1
Step 1 of 12
2
Step 2 of 12

Contents

​STEP 3: Components List​

​STEP 5: Tools List​

​STEP 6: Torque Values​

​STEP 7: Hole Diagram​

​STEP 8: Chassis Mounts​

​STEP 12: QA Sheet​

3
Step 3 of 12

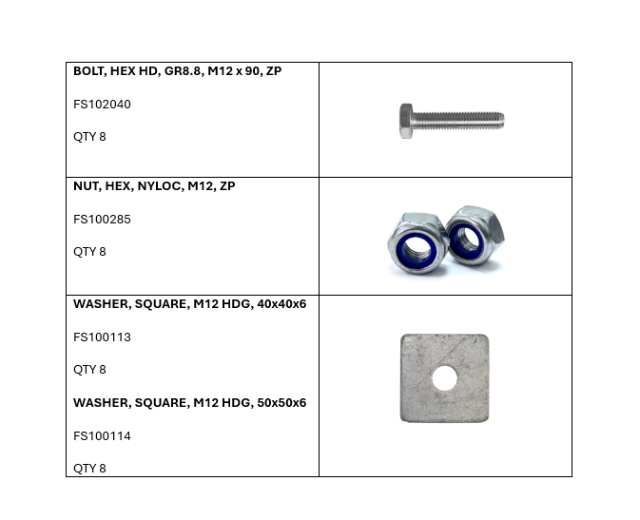

<p>Components List</p>

Components List

4
Step 4 of 12

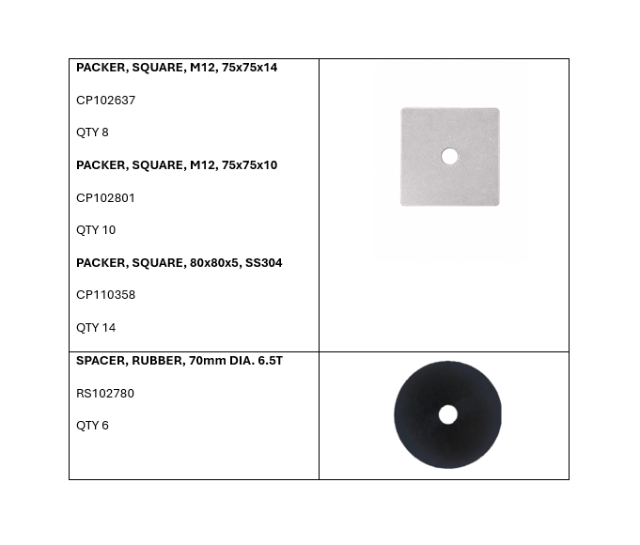

<p>Components List</p>

Components List

5
Step 5 of 12
<p>Tools List </p>

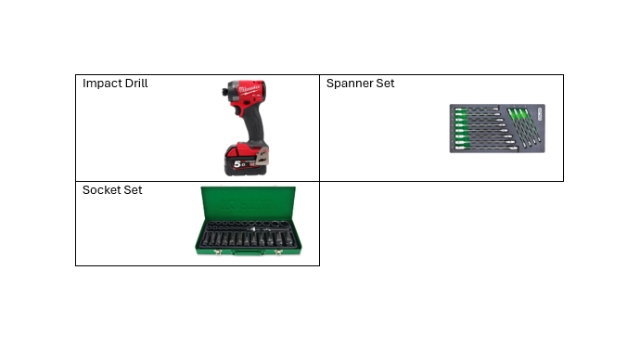

Tools List

6
Step 6 of 12
<p>Torque Values</p>

Torque Values

7
Step 7 of 12

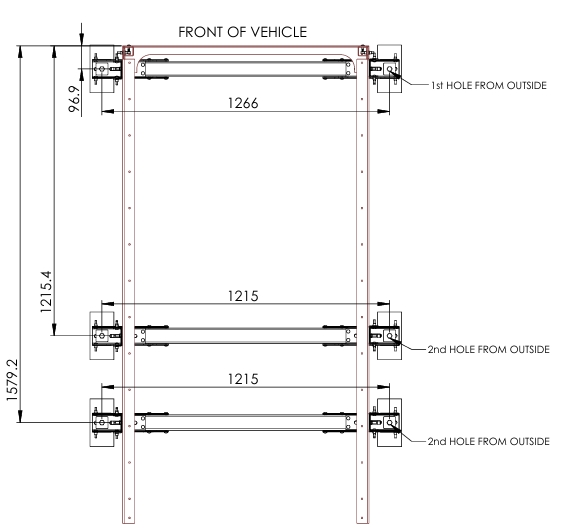

<p>Hole Diagram</p>

Hole Diagram

8
Step 8 of 12

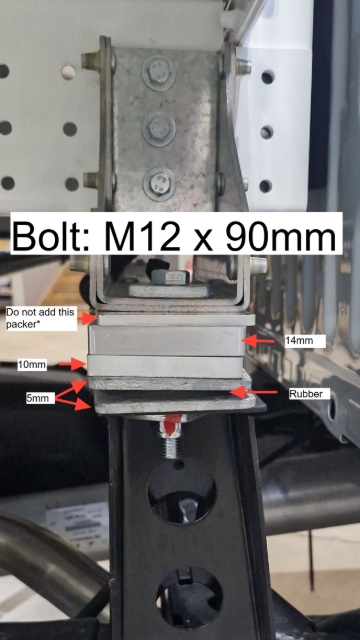

<p>D-max/BT-50 SC Front</p><p>Distance from the front of the chassis: 96.9mm</p><p>Bolt Hole: First hole from the outside</p>

D-max/BT-50 SC Front

Distance from the front of the chassis: 96.9mm

Bolt Hole: First hole from the outside

9
Step 9 of 12
<p>D-max/BT-50 SC Second From Front</p><p>Distance from the front of the chassis: 569.9mm</p><p>Bolt Hole: First hole from the outside</p>

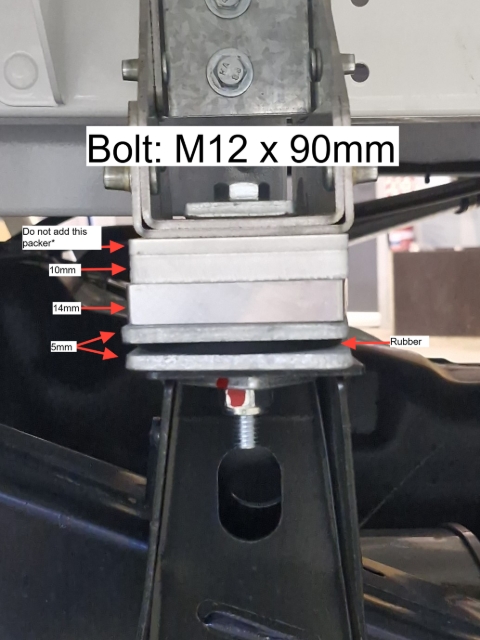

D-max/BT-50 SC Second From Front

Distance from the front of the chassis: 569.9mm

Bolt Hole: First hole from the outside

10
Step 10 of 12

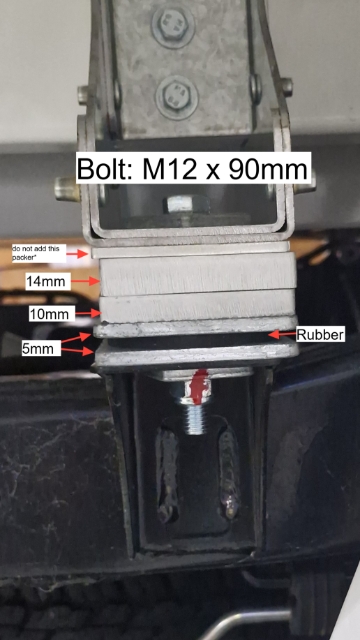

<p>D-max/BT-50 SC Third from Front</p><p>Distance from the front of the chassis: 1689.9mm</p><p>Bolt Hole: Second hole from the outside</p>

D-max/BT-50 SC Third from Front

Distance from the front of the chassis: 1689.9mm

Bolt Hole: Second hole from the outside

11
Step 11 of 12

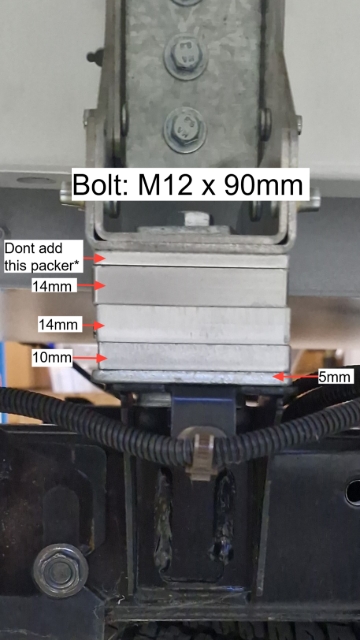

<p>D-max/BT-50 SC Back</p><p>Distance from the front of the chassis: 2054.9mm</p><p>Bolt Hole: Second hole from the outside</p>

D-max/BT-50 SC Back

Distance from the front of the chassis: 2054.9mm

Bolt Hole: Second hole from the outside

12
Step 12 of 12
<p>QA Sheet</p>

QA Sheet
