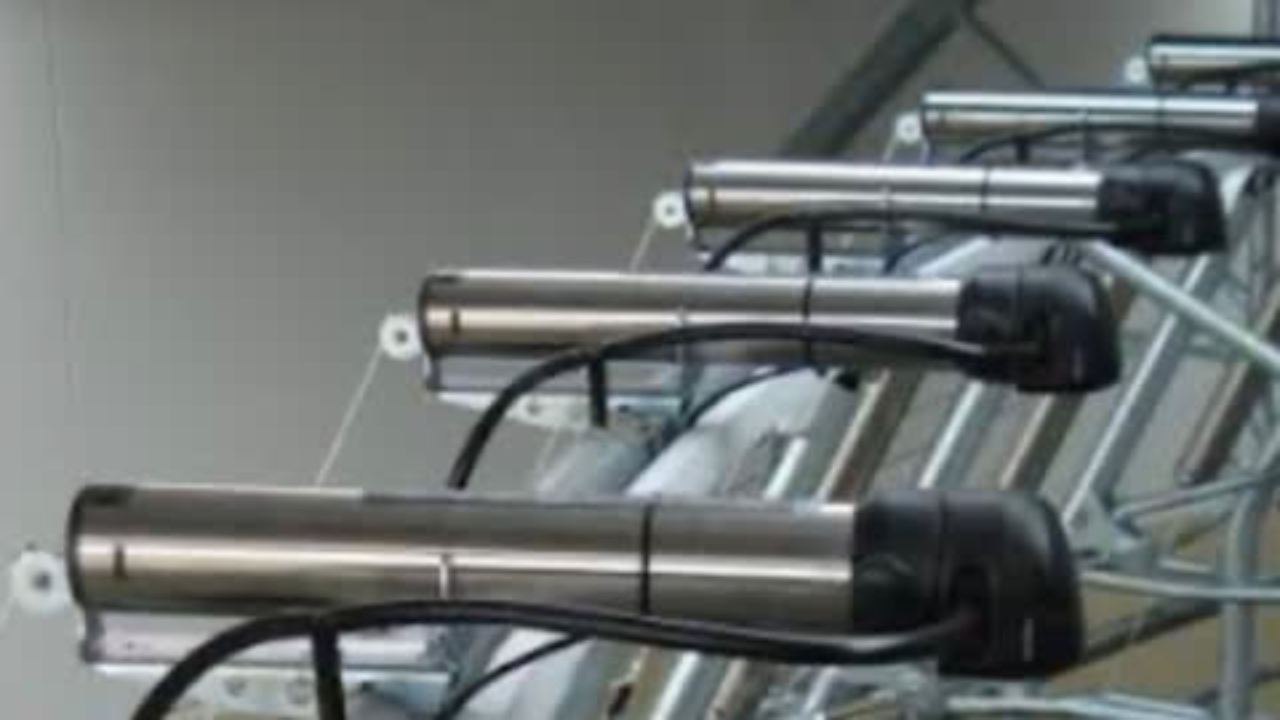

Replace Cord on Waikato Cup Removers
1
Step 1 of 13

For this job you will need

  • flat head screwdriver

  • philips head screwdriver

  • replacement cord

  • lighter

2
Step 2 of 13

Push in the lugs either side and pull the entire unit out. You may need to use a flat screwdriver to push in lugs.

3
Step 3 of 13

Remove the end cover.

4
Step 4 of 13

Push the knot out and cut the cord.

5
Step 5 of 13

Now pull all the cord out of the unit.

6
Step 6 of 13
<p>Burn the ends of the pre cut new cord ( it’s a good idea to keep a stock of pre cut cords ).</p>

Burn the ends of the pre cut new cord ( it’s a good idea to keep a stock of pre cut cords ).

7
Step 7 of 13

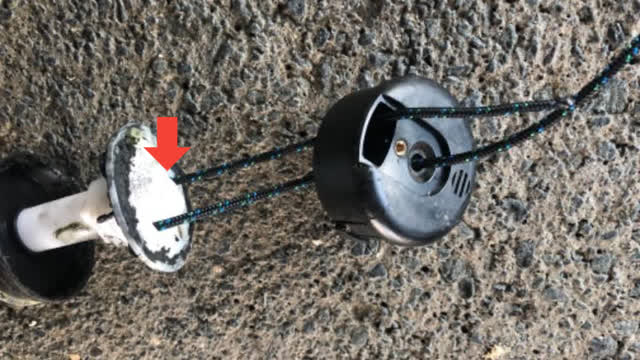

<p>Replace cord: Thread through the main opening and around either pulley. Now comeback through one of the two side holes.</p>

Replace cord: Thread through the main opening and around either pulley. Now comeback through one of the two side holes.

8
Step 8 of 13

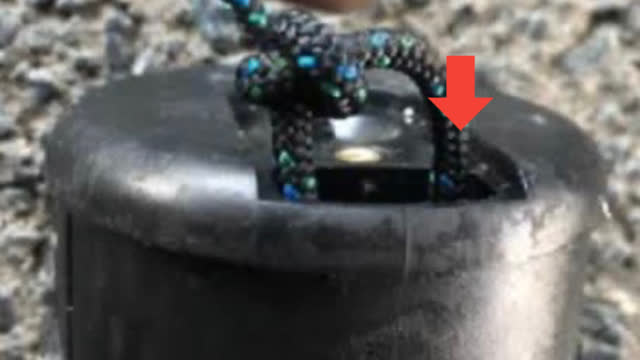

<p>Knot the end and put the residual cord back through the other side hole.</p>

Knot the end and put the residual cord back through the other side hole.

9
Step 9 of 13

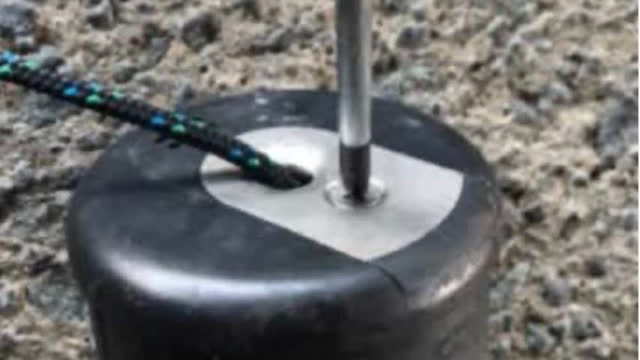

<p>Slide the end cover back over cord and screw in place.</p>

Slide the end cover back over cord and screw in place.

10
Step 10 of 13

11
Step 11 of 13

Push the pulley section back in first. YOU MUST MAKE SURE the cord isn’t twisted when you click the lugs. back in.

12
Step 12 of 13

Tie cups back on and you’re done!

13
Step 13 of 13
