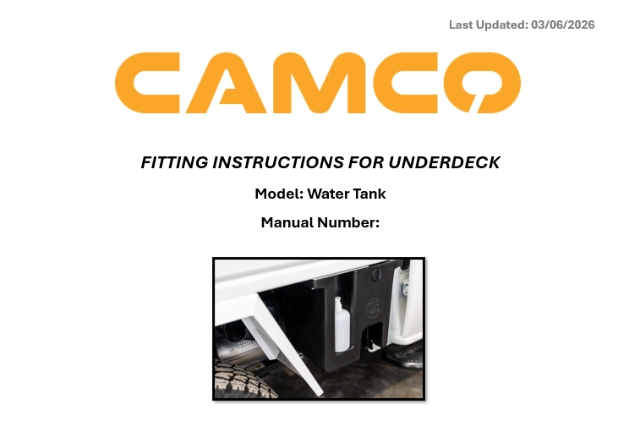

UNDERDECK, WATER TANK

Knowby

UNDERDECK, WATER TANK

1

Step 1 of 15

2

Step 2 of 15

Contents (Click to view)

STEP 3: Components List

STEP 7: Tools List

STEP 8: Fitting Top Plate

STEP 11: Fitting Water Tank

STEP 15: QA Sheet

3

Step 3 of 15

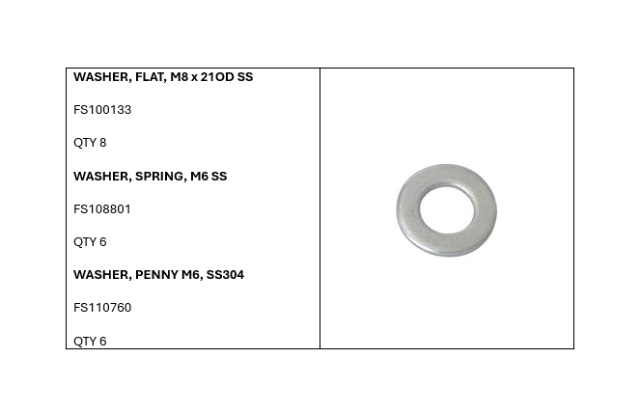

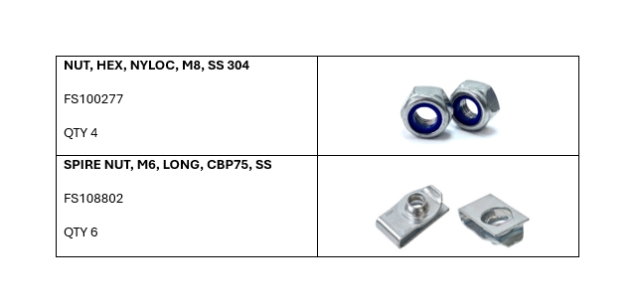

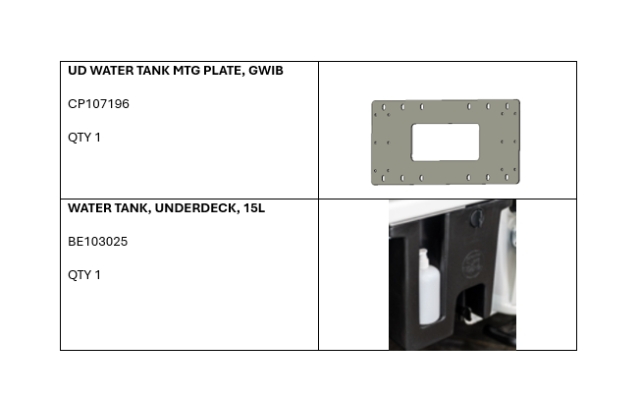

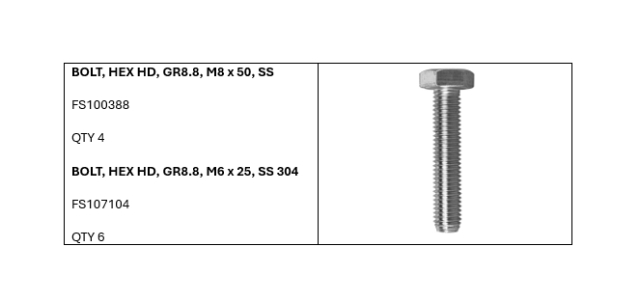

<p>Components</p>

Components

4

Step 4 of 15

5

Step 5 of 15

6

Step 6 of 15

7

Step 7 of 15

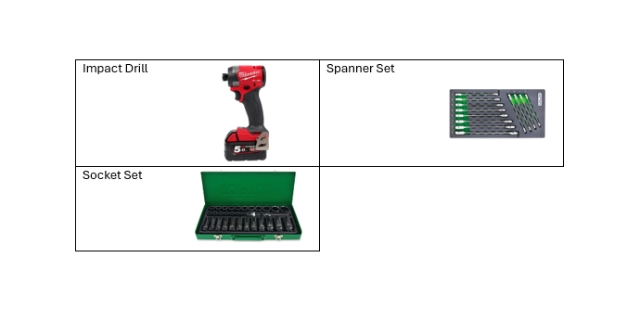

<p>Tools List</p>

Tools List

8

Step 8 of 15

Fit the top plate to the water tank using:

M8x50 Hex Hd Bolts

M8 Flat Washer

9

Step 9 of 15

Fit M8 Nyloc and flat washer to the hex head bolt.

10

Step 10 of 15

Tighten the plate to the water tank.

11

Step 11 of 15

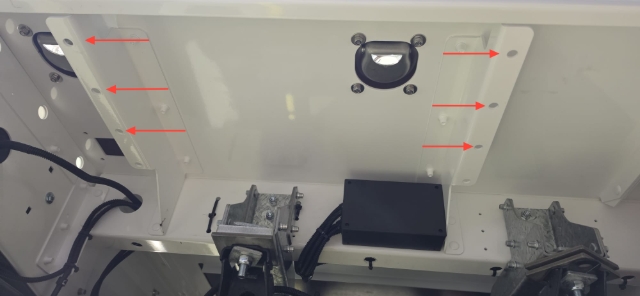

<p>Use the front 3 holes under the deck to mount the water tank.</p>

Use the front 3 holes under the deck to mount the water tank.

12

Step 12 of 15

Fit the spire clips into all 6 of the holes.

13

Step 13 of 15

Fit the Water tank to the deck using:

M6x25 Hex HD Bolt

M6 Spring Washer

M6 Penny Washer

14

Step 14 of 15

Tighten the water tank to the deck.

15

Step 15 of 15

<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p></p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
