T & F Glass Glue LoadCell and Incab Monitor

Step 1 of 5

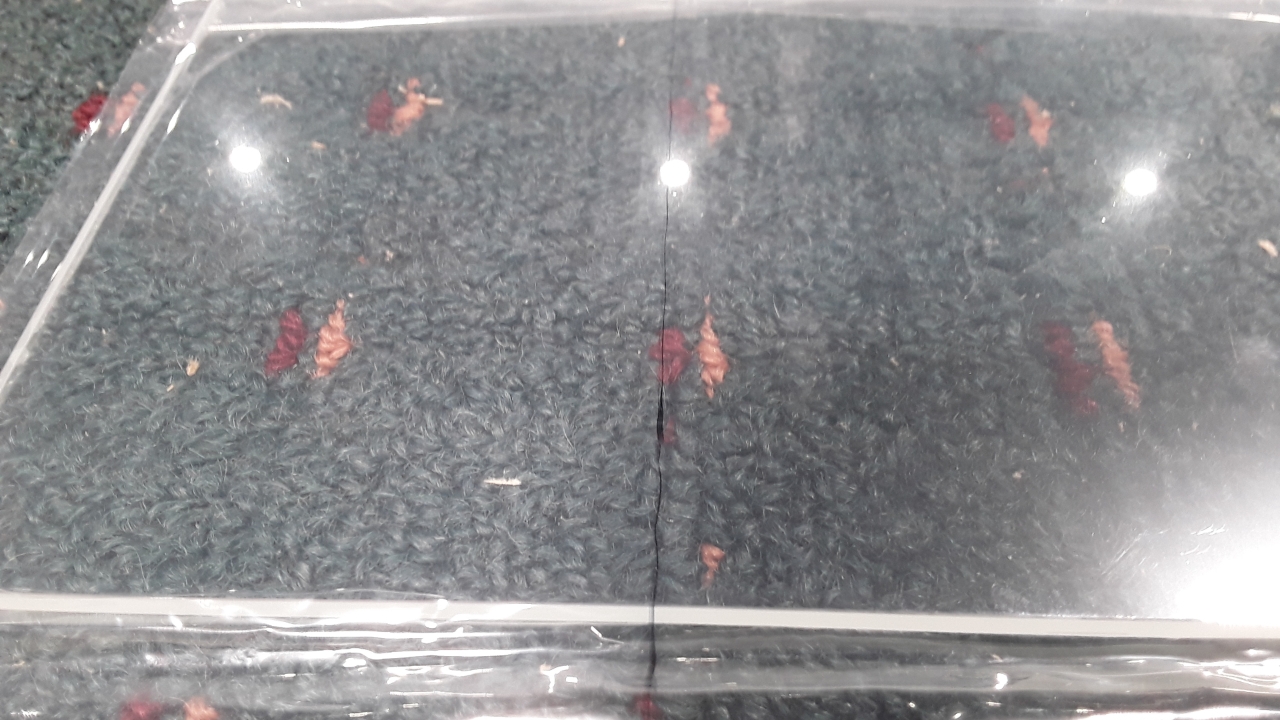

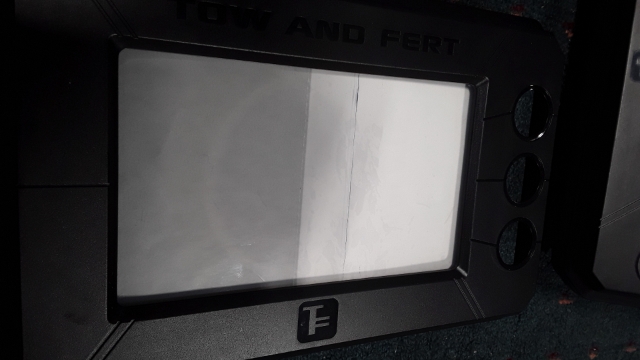

<p>Start by taking front case and glass.Usually, glass comes with a plastic protector. When positioning the glass on the front case, ensure that the side with the black line faces outward. Gently cut the plastic protector, to make a rectangule mark. Use as a guide, the edge of the top case.</p>

Start by taking front case and glass.Usually, glass comes with a plastic protector. When positioning the glass on the front case, ensure that the side with the black line faces outward. Gently cut the plastic protector, to make a rectangule mark. Use as a guide, the edge of the top case.

Step 2 of 5

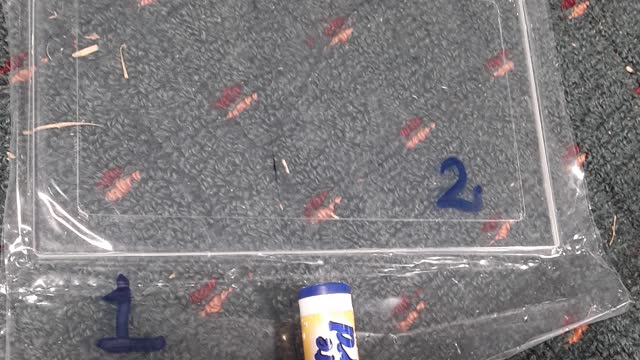

<p>Then, Peel off side labeled "Number 1" and Keep the side labeled "Number 2" in place as shown in the picture.
By doing this, you ensure that the glass remains clean and free from fingerprints.</p>

Then, Peel off side labeled "Number 1" and Keep the side labeled "Number 2" in place as shown in the picture. By doing this, you ensure that the glass remains clean and free from fingerprints.

Step 3 of 5

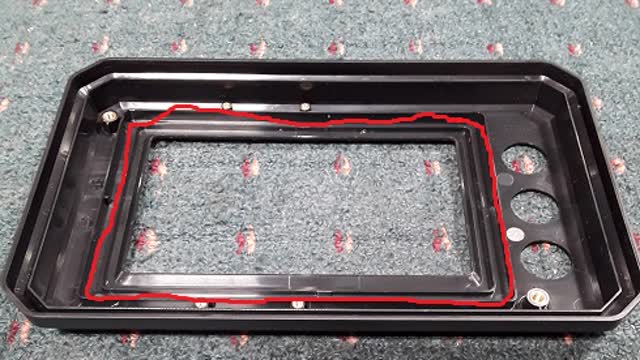

<p>Time to Glue the Glass onto the Top Case. Begin by cleaning the channel inside the top case with isopropyl alcohol. Once the channel is dry, apply tape primer to the area to enhance adhesion.</p>

Time to Glue the Glass onto the Top Case. Begin by cleaning the channel inside the top case with isopropyl alcohol. Once the channel is dry, apply tape primer to the area to enhance adhesion.

Step 4 of 5

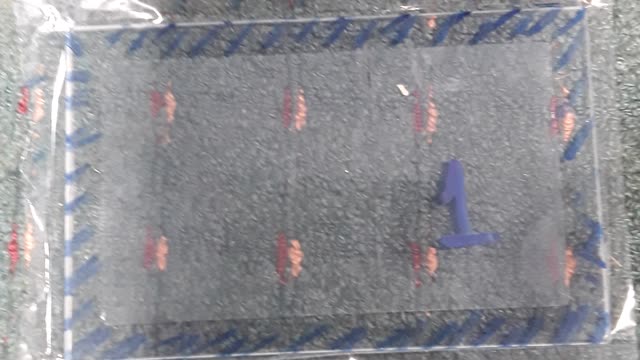

Also, apply primer to the edge of the glass, following the blue marks shown in the photo.

Step 5 of 5

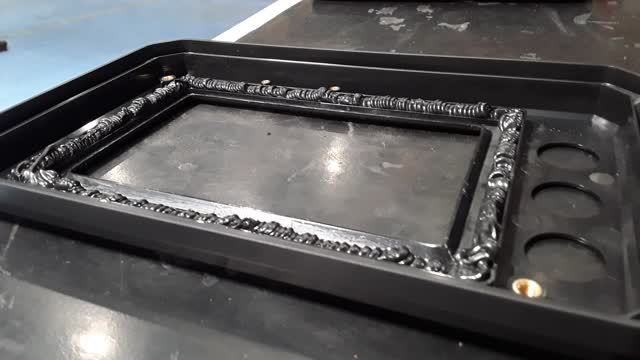

<p>Cover the first channel with a generous amount of black glue, then place the screen so it aligns with the edges of the channel.Ensure the glue spills over into the second channel for full coverage. Tip: Let the glue dry for at least one and a half days, Once dry, cut away any excess glue.</p>

Cover the first channel with a generous amount of black glue, then place the screen so it aligns with the edges of the channel.Ensure the glue spills over into the second channel for full coverage. Tip: Let the glue dry for at least one and a half days, Once dry, cut away any excess glue.
