Contents (Click to view)

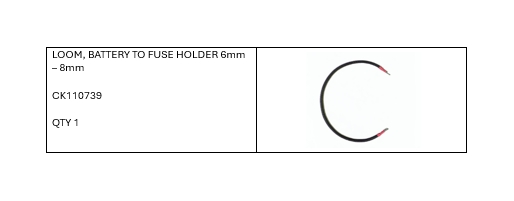

Components List
Components List
Components List

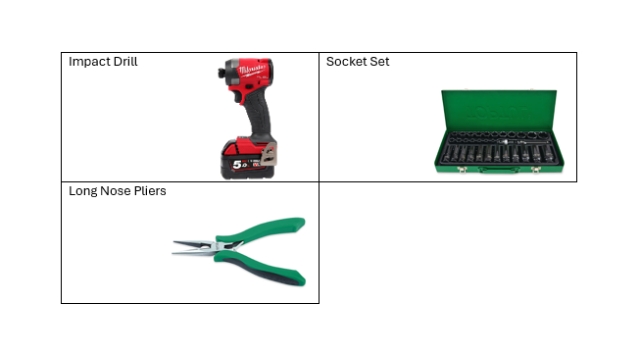

Tools List
Tourque Values

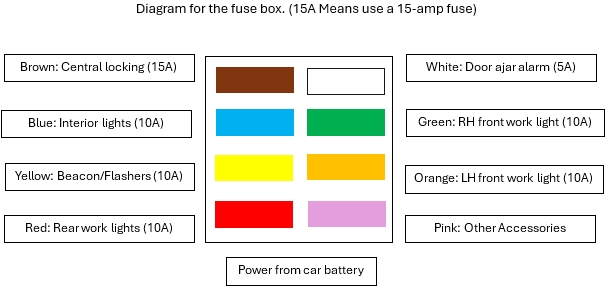

Fuse box diagram
Fit each colour fuse to the correct spots.
Fit each colour fuse to the correct spots.

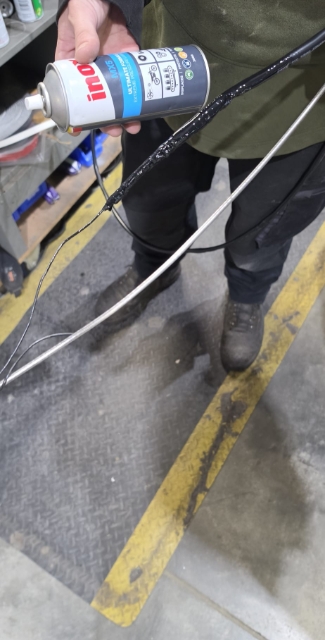

Tie the end of the fuse wire to the rod, then spray it with inox grease.
This is to make it easier to go to the cab.
Insert the wire through to the cab.
Pull the wire through from the bottom of the passenger's side.

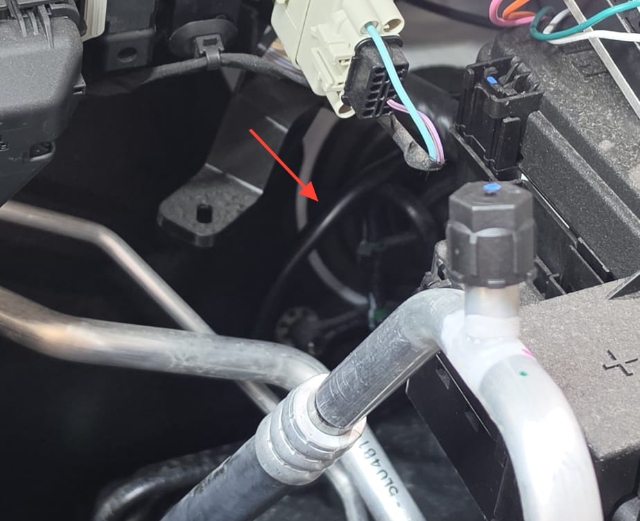

Loop the wire as shown.

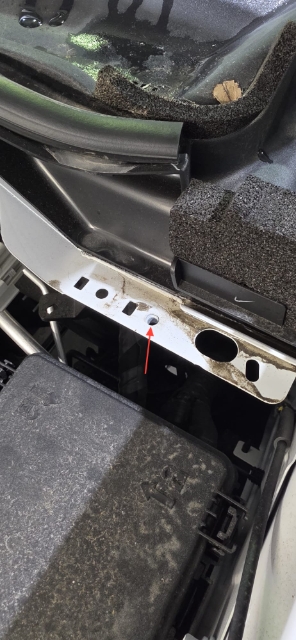

mount to the spot shown.
Using a self-tapping screw, mount the fuse box to the ute.

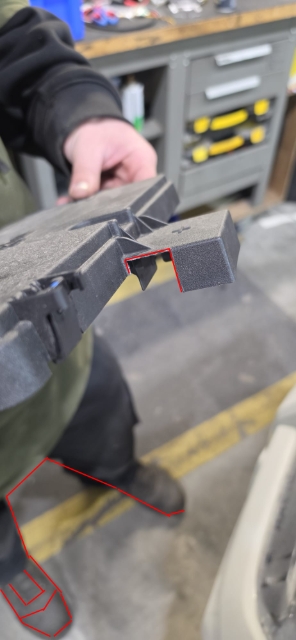

Cut the areas shown so the wire can fit out for the battery-to-fuse box connection.

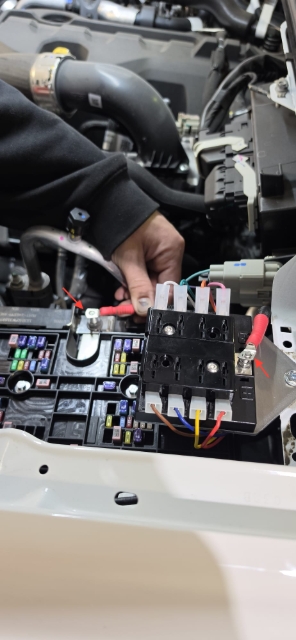

Connect the battery to the fuse box.
Please fill out the hard copy QA sheet included with the product you got.
Once filled out, please send it back to
If you have issues with instructions and need assistance, please contact.
+64 21 349 001
If the hard copy does not arrive, please contact us.
0800 663 500
