AIR HOSE, BETWEEN TOOLBOXES
1
Step 1 of 10
2
Step 2 of 10Contents (Click to view)
3
Step 3 of 10

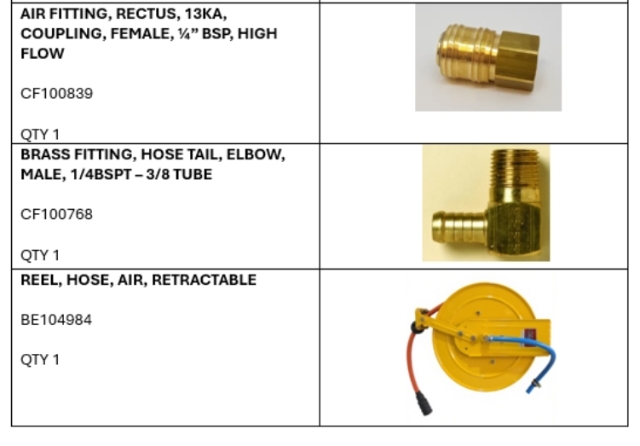

Components List
4
Step 4 of 10

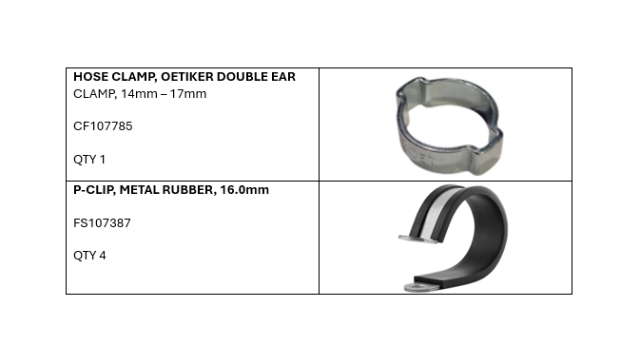

Contents List
5
Step 5 of 10

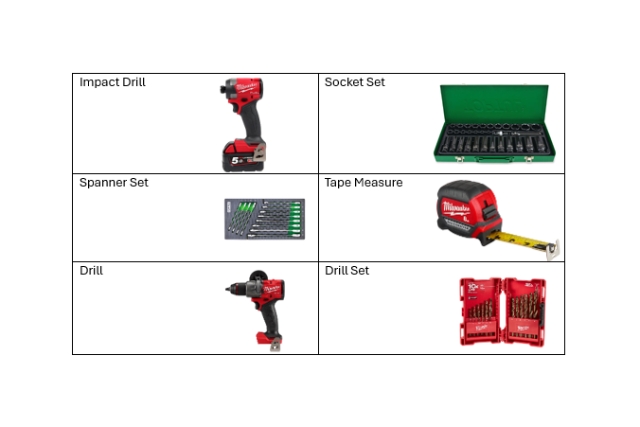

Tools List
6
Step 6 of 10

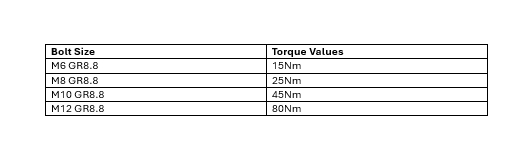

Torque Values
7
Step 7 of 10

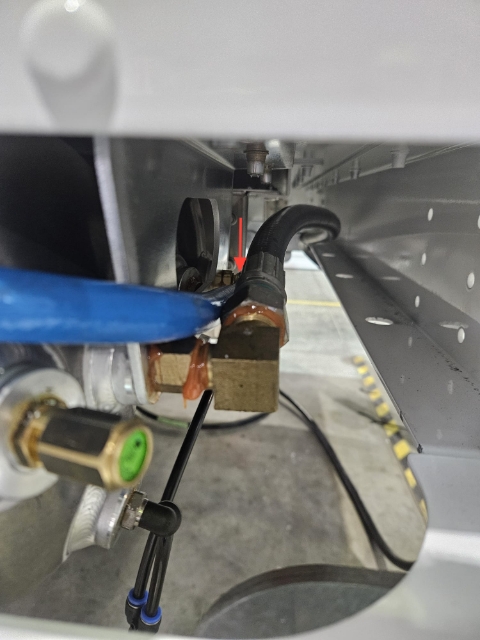

Run the blue hose from the air tanks to the front of the box up the front.
8
Step 8 of 10

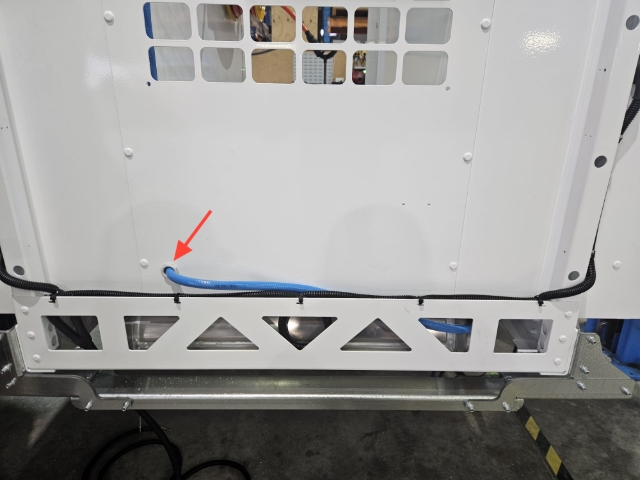

Run the hose along the front and through the grommet.
9
Step 9 of 10

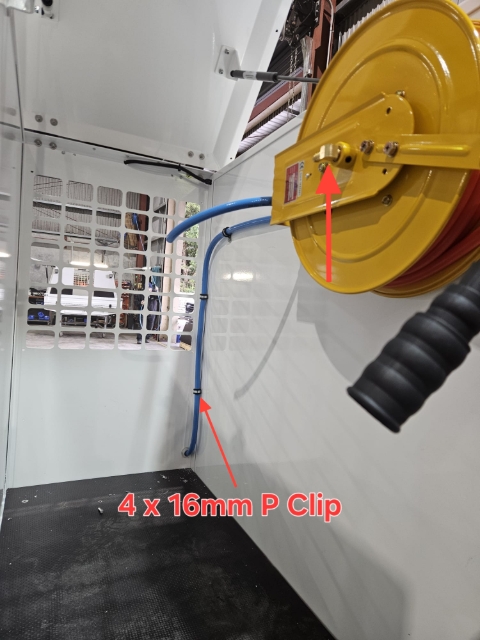

Run the blue hose up the corner and then towards the air hose. Fit the hose to the box using 4 x 16 mm P-clips.
Fit the hose to the fitting on the Air hose. Use a 14-17 ear clamp
10
Step 10 of 10
Please fill out the hard copy QA sheet included with the product you got.
Once filled out, please send it back to
If you have issues with instructions and need assistance, please contact.
+64 21 349 001
If the hard copy does not arrive, please contact us.
0800 663 500
