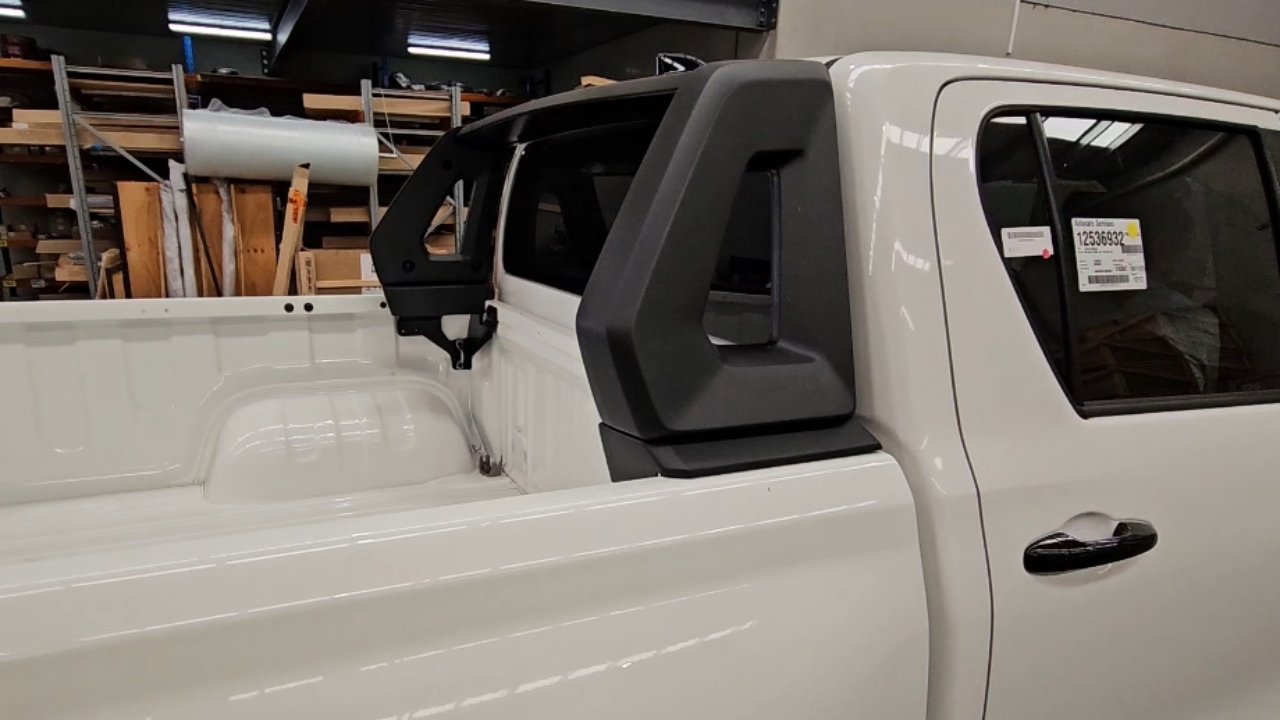

Removing 2026+ Hilux Sailplane

1

Step 1 of 13

Tools Required

Impact driver
T40 torx impact bit
T40 torx right angle

2

Step 2 of 13

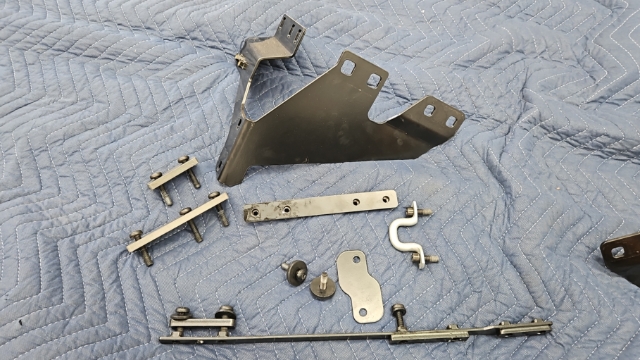

<p><em>Each corner contains several thread plates, ensure these are kept alongside the matching fasteners </em></p>

Each corner contains several thread plates, ensure these are kept alongside the matching fasteners

3

Step 3 of 13

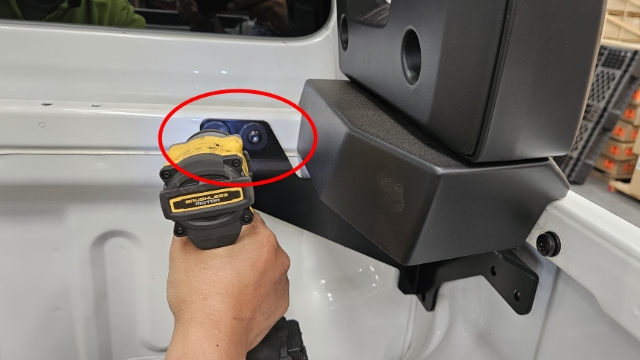

<p>Remove front two fasteners </p>

Remove front two fasteners

4

Step 4 of 13

Remove lower mounting point fasteners

5

Step 5 of 13

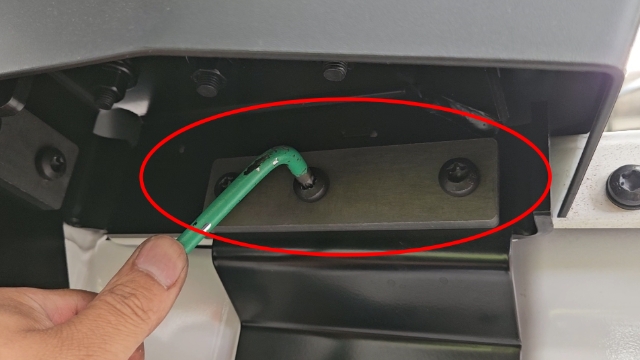

<p>Remove three fasteners on side </p>

Remove three fasteners on side

6

Step 6 of 13

Remove two fasteners on side

7

Step 7 of 13

Remove last side fastener

Remove thread plate behind panel

8

Step 8 of 13

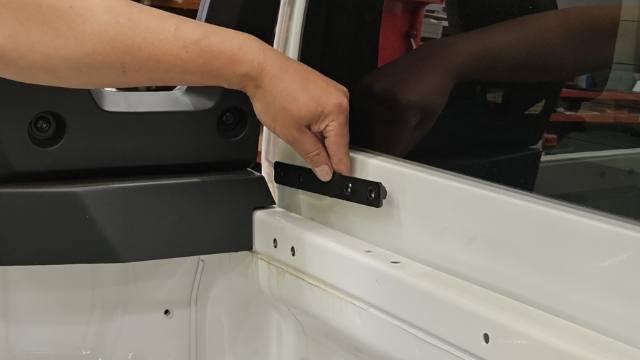

<blockquote><p><strong>Ensure to hold onto plate located behind front wall when removing final fasteners</strong></p></blockquote><p></p>

Ensure to hold onto plate located behind front wall when removing final fasteners

9

Step 9 of 13

Remove one front fasteners, loosen second until ready to fully remove bracket

10

Step 10 of 13

Remove final front wall fastener, hold on to main mounting bracket alongside the thread plate behind front wall

11

Step 11 of 13

Repeat for other side

12

Step 12 of 13

Rotate sailplane rearward and lift from wellside

13

Step 13 of 13

Store all fasteners, thread plates and sailplane as appropriate
