Wiring, LDV T60
Suitable for Maxilamp LEDs. Untested on sequential LEDs
Suitable for Maxilamp LEDs. Untested on sequential LEDs
1
Step 1 of 6

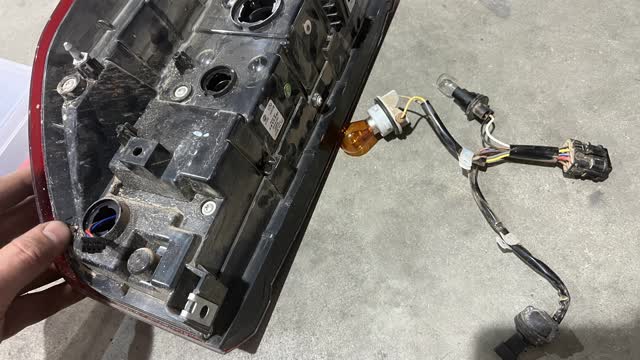

<p>Remove light harness from the (Tubs) tail light</p>

Remove light harness from the (Tubs) tail light

2
Step 2 of 6

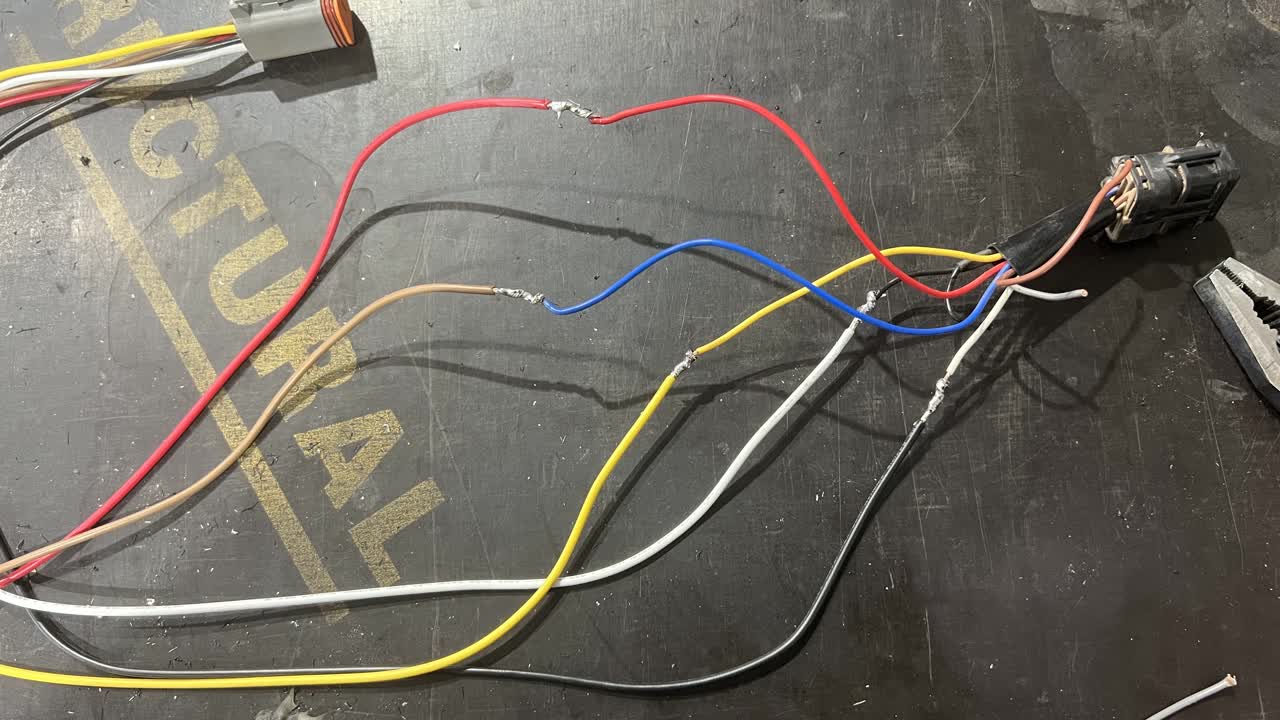

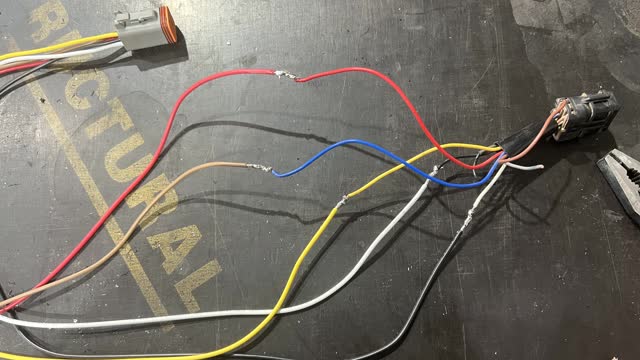

<p>Tray plug: Vehicle Plug Red: Red (stop). Yellow: Yellow (Indicator). Brown: Blue (Park) White: Black (Earth) Black: White (Reverse)</p>

Tray plug: Vehicle Plug Red: Red (stop). Yellow: Yellow (Indicator). Brown: Blue (Park) White: Black (Earth) Black: White (Reverse)

3
Step 3 of 6

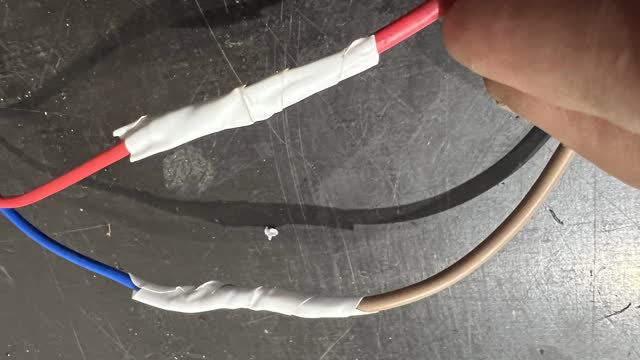

<p>Solder and then insolate each connection</p>

Solder and then insolate each connection

4
Step 4 of 6

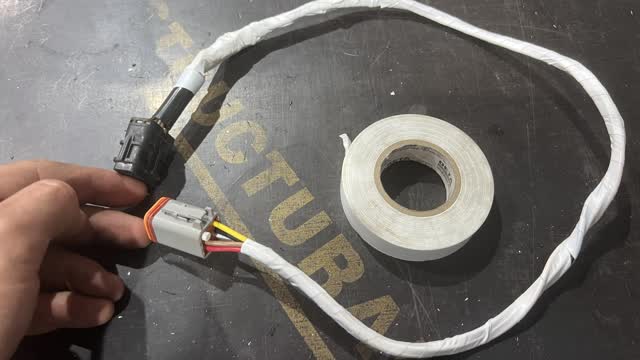

<p>Wrap with protective sheath</p>

Wrap with protective sheath

5
Step 5 of 6

Neatly secure harness to vehicle

6
Step 6 of 6

With a second person, check that all lights are functioning correctly
