Fuel Filler, Hilux, Xtra Cab

Knowby

Fuel Filler, Hilux, Xtra Cab

1

Step 1 of 14

Take care! Make sure no kinks to hoses, ensure all clamps are tight.

2

Step 2 of 14

Looks like this when completed correctly

3

Step 3 of 14

Loosen hose clamp on tank, 10mm, rotate forward

4

Step 4 of 14

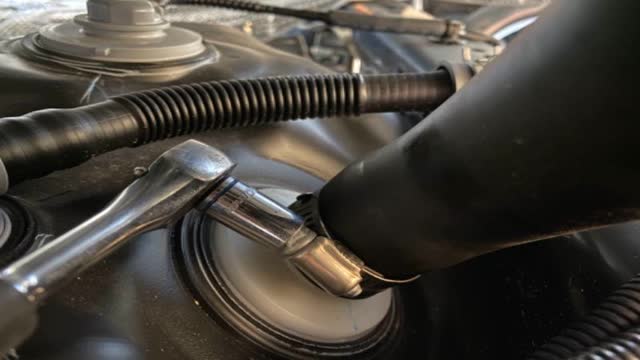

<p>Retighten clamp to tank, 10mm</p>

Retighten clamp to tank, 10mm

5

Step 5 of 14

Connect filler hose, push together tightly

6

Step 6 of 14

Should look like this

7

Step 7 of 14

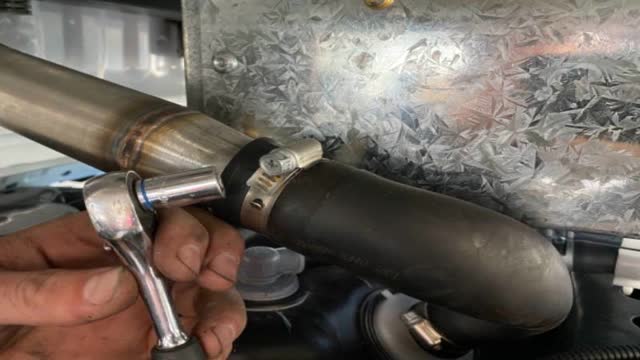

<p>Tighten main hose clamp, 10mm</p>

Tighten main hose clamp, 10mm

8

Step 8 of 14

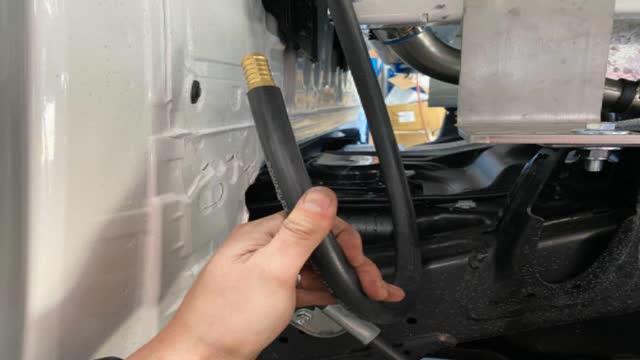

<p>Identify supplied breather (attached to Tray already)</p>

Identify supplied breather (attached to Tray already)

9

Step 9 of 14

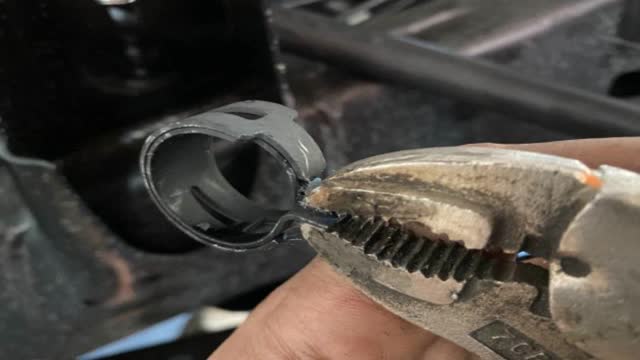

<p>Pre-Set the breather clamp</p>

Pre-Set the breather clamp

10

Step 10 of 14

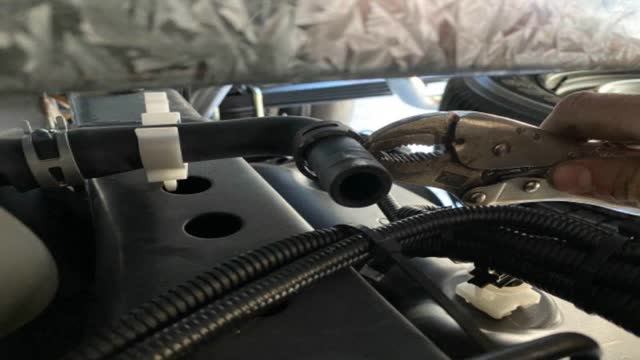

<p>Slide on to tank breather hose</p>

Slide on to tank breather hose

11

Step 11 of 14

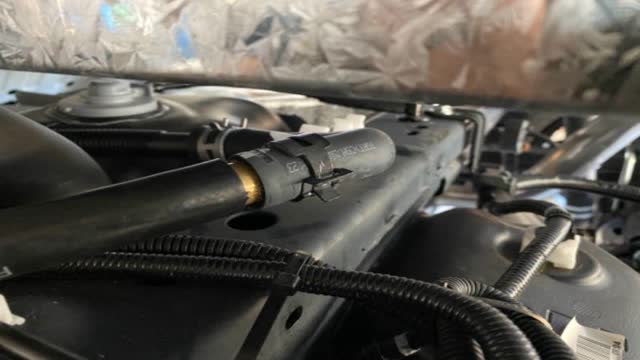

<p>Connect breather and fit original clamp</p>

Connect breather and fit original clamp

12

Step 12 of 14

Breather hose looks like this

13

Step 13 of 14

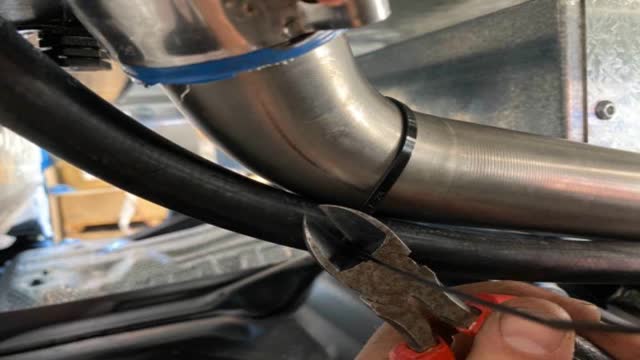

<p>Trim zip ties neatly</p>

Trim zip ties neatly

14

Step 14 of 14

Looks like this when done
